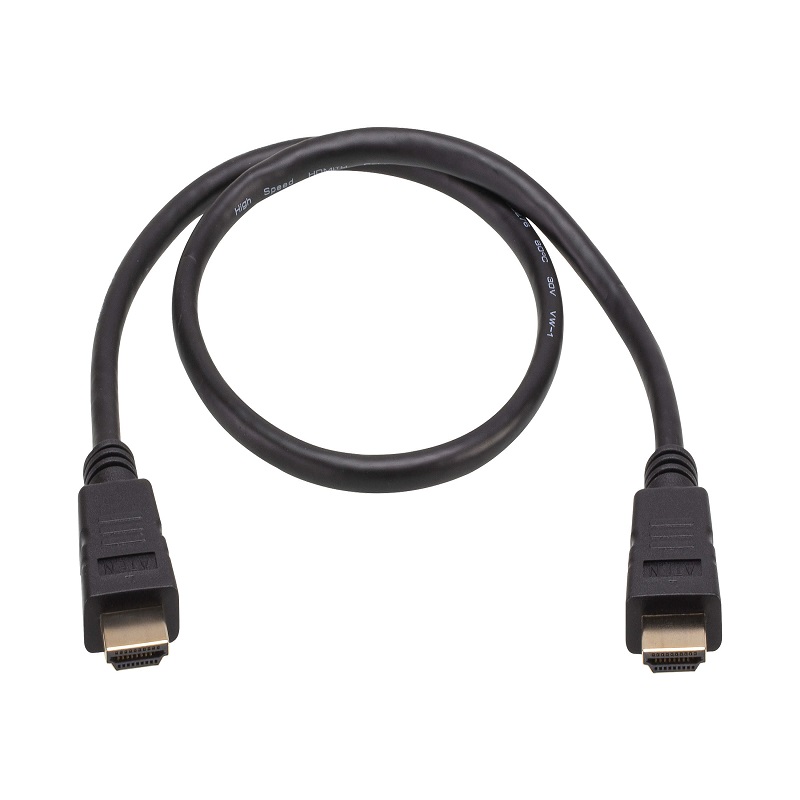

0.6 m High Speed True 4K HDMI Cable with Ethernet

0.6 m High Speed True 4K HDMI Cable with Ethernet

Product Code : 2L-7DA6H

Brand Category : HDMI Cables

Description

  • Optimum signal transmission up to True 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz 4:4:4)
  • HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
  • Gold-plated connectors for reliable transmissions
  • Available in 0.6 m
  • Bend Radius 90° **

    Note:
    * Feature only available if linked devices are HDMI Ethernet Channel enabled
    ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute

Add to Query Cart PDF Download

Technical Specification

Max. Video Resolution4096x2160@60Hz (4:4:4)
Physical Properties
Cable Length0.6M
Cable ColorBlack
Cable Outer Dimension6.0 ± 0.15mm
Conductor Gauge30AWG
Conductor MaterialTinned Copper
Connector PlatingGold
Connector TypeHDMI (19pin) Male to Male
Cable Shield TypeAluminum Foil
Cable Jacket TypePVC
Environmental
Operating Temperature80℃
RatingUL VW-1 (Flame rate), CSA
