0U Basic PDU with Surge Protection

0U Basic PDU with Surge Protection

Product Code : PE0116S

Brand Category : Rack PDU


Description


  • Space saving – 0U rack mount design
  • IEC or NEMA outlet models
  • Surge protection
  • Aluminum material
  • Works with data centers, server rooms, and telecom equipment

Add to Query Cart PDF Download


Technical Specification

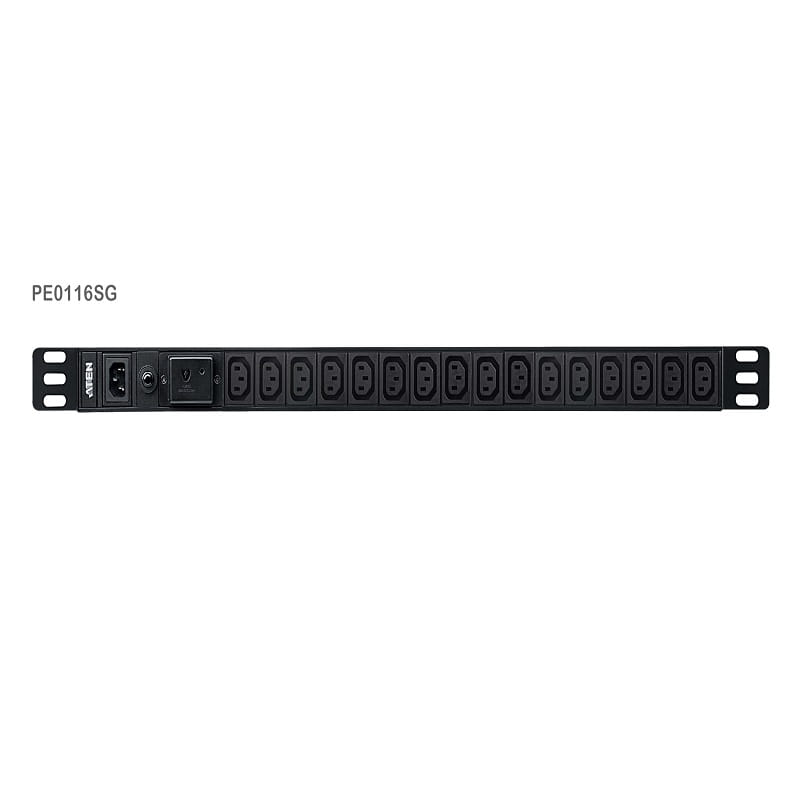

FunctionPE0116SAPE0116SG
Electrical
Nominal Input Voltage100-120 VAC100-240 VAC
Maximum Input Current15A Max
(UL de-rated 12A Max)
(PSE 10A)
10A Max
Input Frequency50-60 Hz50-60 Hz
Input ConnectionNEMA 5-15PIEC-320 C14
Input Power1800VA(Max);
1440VA(UL de-rated)
2400VA(Max)
Outlet Type(16) NEMA 5-15R(16) IEC 320 C13
Maximum Output Current (Outlet)15A Max
(UL de-rated 12A Max)
(PSE 10A)
10A Max
Maximum Output Current (Bank)15A Max
(UL de-rated 12A Max)
(PSE 10A)
10A Max
Maximum Output Current (Total)15A Max
(UL de-rated 12A Max)
(PSE 10A)
10A Max
OPD(Overcurrent Protection Device)YesYes
Physical Properties
Dimensions (L x W x H)71.56 x 4.44 x 6.00 cm
(28.17 x 1.75 x 2.36 in.)
71.56 x 4.44 x 6.00 cm
(28.17 x 1.75 x 2.36 in.)
Weight1.10 kg ( 2.42 lb )1.10 kg ( 2.42 lb )
Power Cord Length10ft(14#)10ft(3×1.0mm2)
Environmental
Temperature (Operating / Storage)0 – 40℃ / -20 – 60℃0 – 40℃ / -20 – 60℃
Elevation (Operating / Storage)3000m3000m
Compliance
EMC VerificationFCC Class ACE Class A
Safety VerificationULCE,LVD, UL
