Product Code : PE0316S
Brand Category : Rack PDU

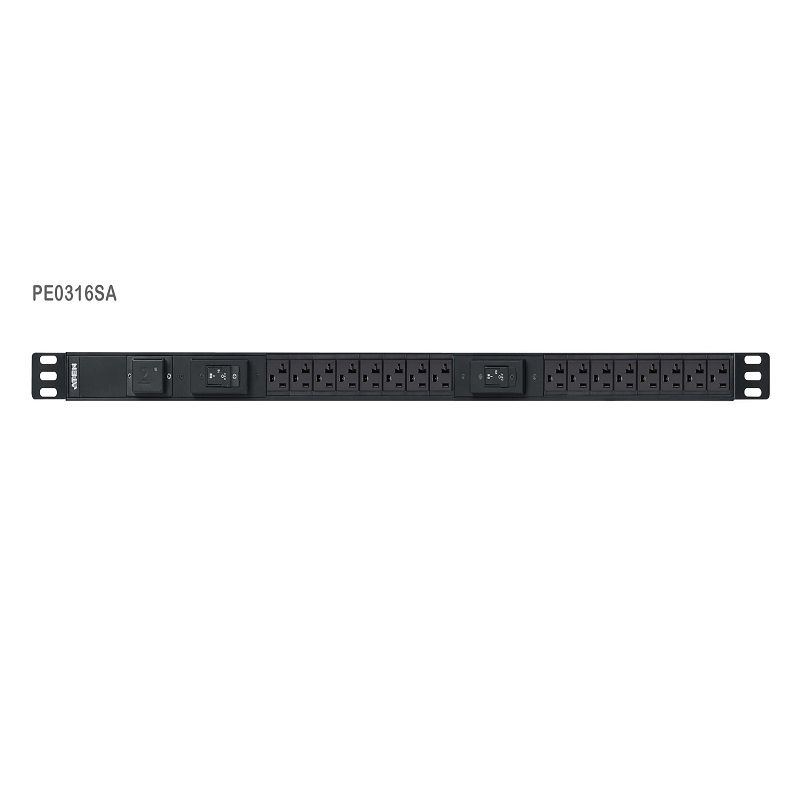

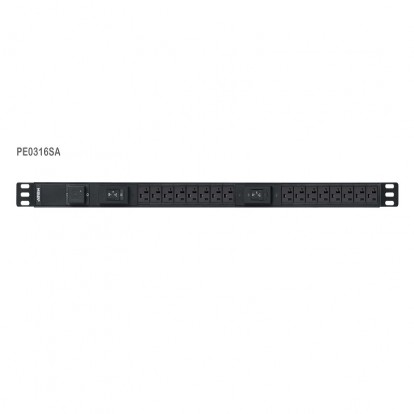

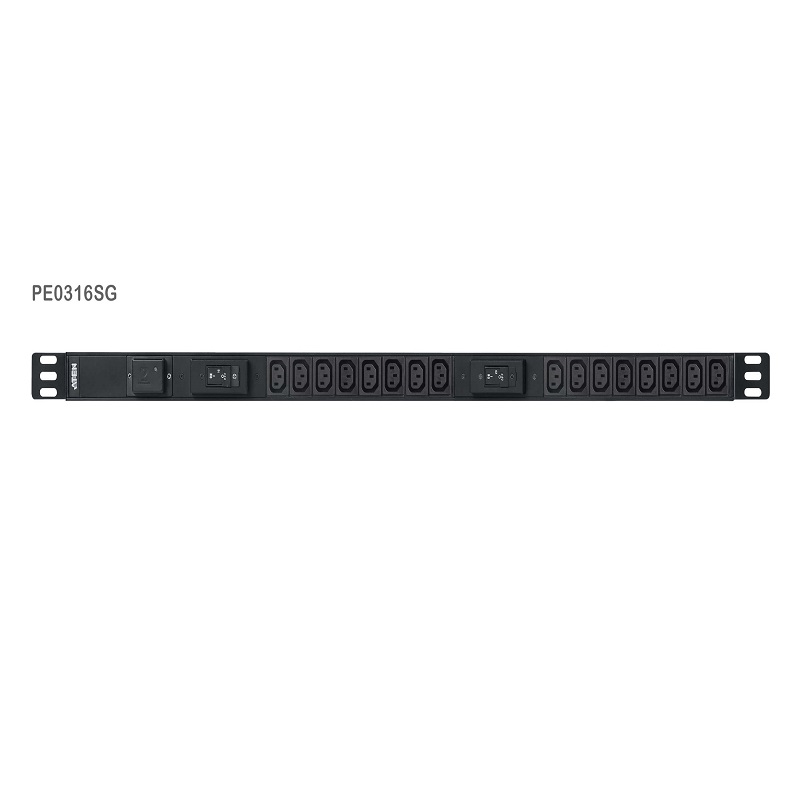

| Function | PE0316SA | PE0316SG |
| Electrical | ||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC |
| Maximum Input Current | 30A Max (UL de-dated 24A Max) | 32A Max |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA L5-30P | IEC 60309 32A |
| Input Power | 3600VA(Max); 2880VA(UL de-rated) | 7680VA(Max) |
| Outlet Type | (16) NEMA 5-20R | (16) IEC 320 C13 |
| Maximum Output Current (Outlet) | 20 Max (UL de-dated 16A Max) | 10A Max |
| Maximum Output Current (Bank) | 20A Max (UL de-dated 16A Max) | 16A Max |
| Maximum Output Current (Total) | 30A Max (UL de-dated 24A Max) | 32A Max |
| OPD(Overcurrent Protection Device) | Yes | Yes |
| Physical Properties | ||
| Dimensions (L x W x H) | 96.68 x 4.44 x 6.00 cm (38.06 x 1.75 x 2.36 in.) | 96.68 x 4.44 x 6.00 cm (38.06 x 1.75 x 2.36 in.) |
| Weight | 2.10 kg ( 4.63 lb ) | 2.10 kg ( 4.63 lb ) |
| Power Cord Length | 10ft(10#) | 10ft(3×4mm2) |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ | 0 – 40℃ / -20 – 60℃ |
| Elevation (Operating / Storage) | 3000m | 3000m |
| Compliance | ||
| EMC Verification | FCC Class A | CE Class A |
| Safety Verification | UL, other by request | CE,LVD, UL |
