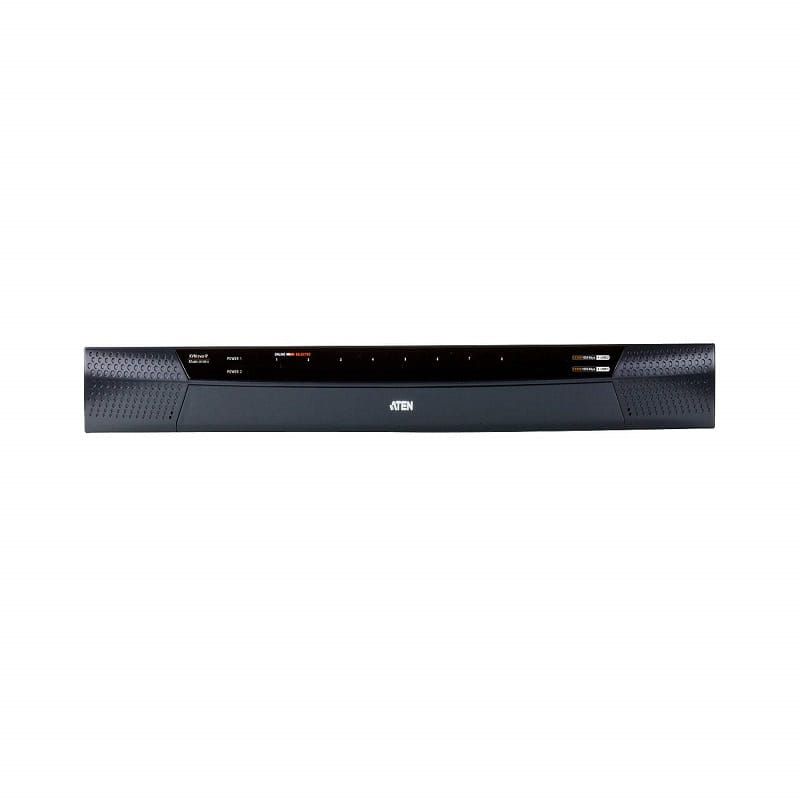

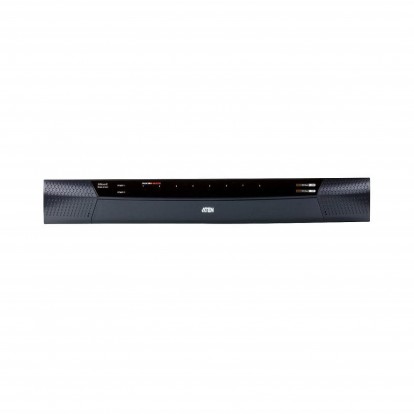

1-Local/1-Remote Access 8-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)

1-Local/1-Remote Access 8-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)

Product Code : KN1108VA

Brand Category : KVM over IP Switches


Description


  • Hardware
    • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
    • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
    • Two separate buses for one local console access and one remote over IP access
    • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
    • Blade server support
    • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
    • Local console provides PS/2 and USB keyboard and mouse support
    • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
    • Audio enabled
    • Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
    • Dual Power Supply
    • High video resolution – up to 1920 x 1200* @ 60Hz for local and remote sessions
    • Monitor and control up to 8 computers on a single level, or control up to 128 computers in a cascade**.

      *1920 x 1200 only supported by KA7166, KA7168, KA7169, KA7175, KA7176, KA7177, KA7170, and KA7178
      ** Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS1308, CS1316, KH1508A, and KH1516A

  • Management
    • Up to 64 user accounts
    • UP to 32 concurrent logins
    • End session feature – administrators can terminate running sessions
    • Event logging and Windows-based Log Server support
    • Critical system event notification via SMTP email; SNMP trap and Syslog support
    • Firmware upgradeable
    • Out-of-Band Access – Modem dial-in/dial-out/dial-back support
    • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
    • Port Share Mode allows multiple users to gain access to a server simultaneously
    • Integration with ATEN CC2000 Management Software
    • Integration with ATEN CCVSR Video Session Recording Software*
    • Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
    • Power Association enables the switch’s KVM ports to be associated with ATEN’S PDUs power outlets for remote power management of the servers from the switch’s interface
    • Power Over the NET™ integration for remote power control, plus support for 3rd party power distribution units (PDUs)
    • Manage browser access methods (Browser, http, https)
    • IPv6 capable

      *Supports recording computer operations accessed via remote sessions.

  • Easy-to-Use Interface
    • Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize the user training time and increase productivity
    • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
    • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
    • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
    • Magic Panel – a special hideaway control panel with configurable function icon
    • Full-screen or sizable and scalable Virtual Remote Desktop
    • Panel Array Mode available to both local console operators and remote access users
    • Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
    • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization

  • Advanced Security
    • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
    • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
    • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
    • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
    • IP/MAC Filter for enhanced security protection
    • Configurable user and group permissions for server access and control
    • Automated CSR creation utility and third party CA certificate authentication

  • Virtual Media
    • Virtual media enables file applications, OS patching, software installation and diagnostic testing
    • Works with USB enabled servers in operating system and BIOS level
    • Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

  • Virtual Remote Desktop
    • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
    • Full screen video display or scalable video display
    • Message Board for communication among remote users
    • Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
    • Keyboard pass through support
    • Exit Macros support
    • On-screen keyboard with multilanguage support
    • BIOS-level access

Add to Query Cart PDF Download


Technical Specification


Console Connections
Local 1
Remote 1
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection Pushbuttons, GUI, Hotkeys

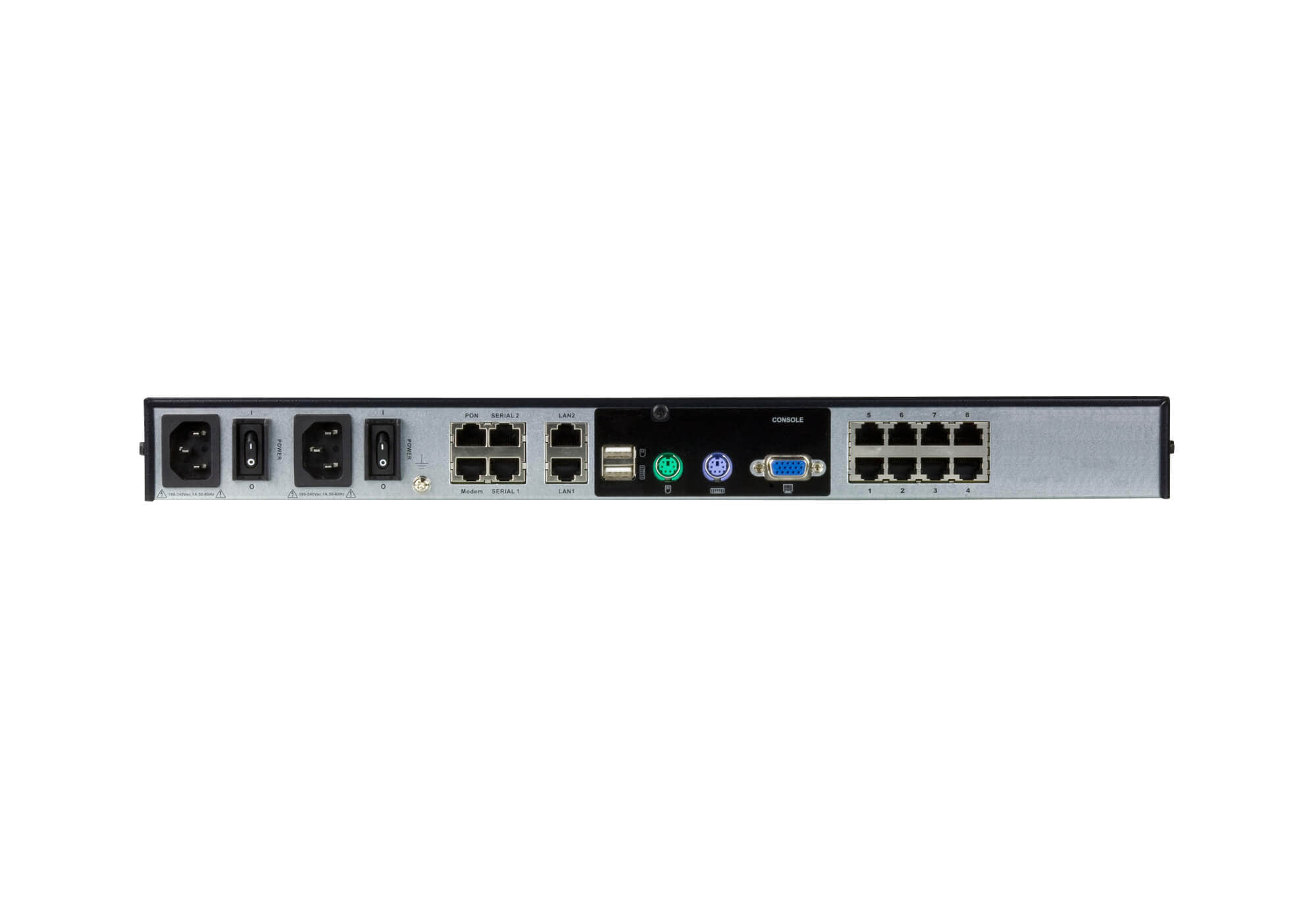

Connectors
Console Ports 2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 8 x RJ-45 Female
Serial 2 x RJ-45 Female
PON 1 x RJ-45 Female
Modem 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Switches
Port Selection 2 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker
LEDs
Online 8 (Green)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Emulation
Keyboard / Mouse PS/2 / USB
Video
Local 1920 x 1200@60 Hz
Remote 1920 x 1200@60 Hz
Scan Interval 1-255 Seconds
Maximum Input Power Rating 100-240V AC, 50-60Hz, 1A
Power Consumption AC110V:13.6W:100BTU
AC220V:14.5W:104BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.52 kg ( 7.75 lb )
Dimensions (L x W x H) 43.84 x 28.78 x 4.40 cm
(17.26 x 11.33 x 1.73 in.)
