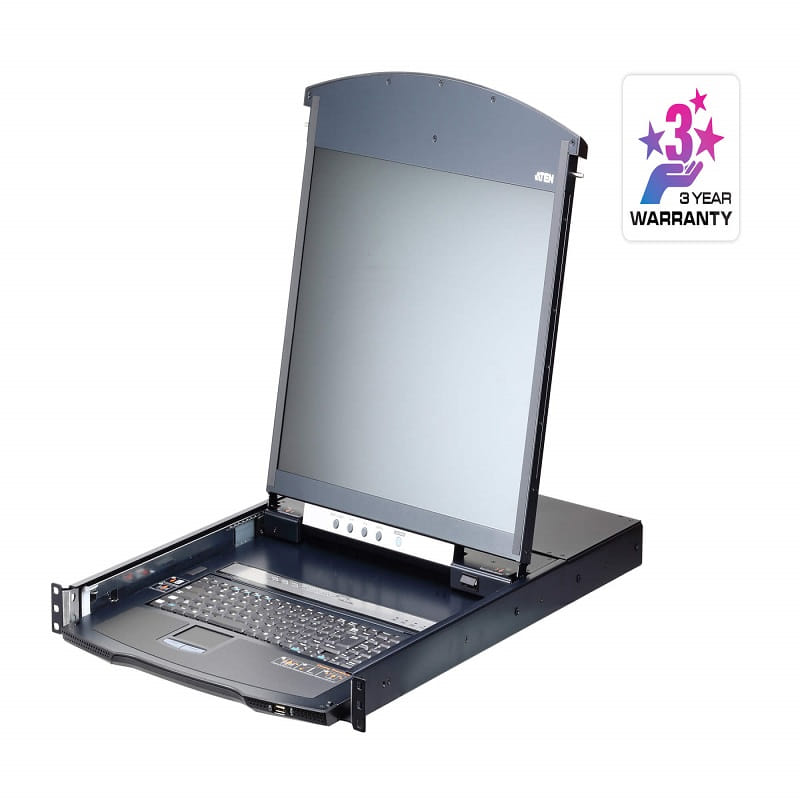

1-Local/1-Remote Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP Switch

1-Local/1-Remote Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP Switch

Product Code : KL1108V

Brand Category : LCD KVM Switches / Consoles


Description


"

  • Exclusive Features
  • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473, and#4282)
  • Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
  • 2x faster virtual media transmission speeds




  • Hardware
  • Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
  • Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
  • One bus for local and one bus for remote KVM over IP access
  • Space-saving RJ-45 ports for Cat 5e/6 cable connections
  • KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Supports external USB mouse
  • Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock enables the console drawer to remain securely locked away when not in use
  • LCD power button saves energy and prolongs the life of the display
  • High Port Density – RJ-45 connectors provide up to 16 ports in 1U housing
  • Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
  • Blade server support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
  • Monitor and control up to 16 computers on a single level or control up to 256 computers in a cascade*
  • Optional rack mount kits available including easy installation options
    Note: Cascade-compatible KVM switches include the following: CS1308, CS1316, KH1508A and KH1516A.




  • Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End Session Feature – administrators can terminate any remote session
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Remote power control for attached ATEN PDU devices
  • Integration with ATEN CC2000 Management Software
  • Integration with ATEN CCVSR Video Session Recording Software*
  • Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Firmware upgradeable
  • IPv6 capable
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Customizable events notification
  • Out-of-Band Access – modem dial-in / dial-out / dial-back support
  • Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
    Note: Supports recording computer operations accessed via remote sessions.




  • Easy-to-Use Interface
  • Easy computer selection via pushbuttons, OSD (On-Screen Display), and Browser-based GUI
  • Local console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
  • ATEN Exclusive Panel Array™ Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
  • Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
  • Launch virtual remote desktop sessions to control multiple servers at the same time
  • Full screen or scalable virtual remote desktop window
  • Video syncing allows the local console monitor’s EDID information to be stored on the KVM Adapter Cables for display resolution optimization




  • Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
  • Supports TLS 1.2 / 1.3 encryption and RSA 2048-bit certificates to secure browser logins
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third-party CA certificate authentication
  • IP/MAC Filter support for enhanced security protection




  • Virtual Media
  • Virtual media enables file application, OS patching, software installations and diagnostic testing
  • Works with USB-enabled servers at the operating system and BIOS level
  • Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
  • Supports Smart Card/CAC Reader




  • Virtual Remote Desktop
  • Video quality can be adjusted to optimize data transfer speeds; color depth, threshold and noise settings reduce data transmission to lower bandwidth
  • Full screen or scalable window for virtual remote desktop
  • Message board feature allows logged in users to communicate with each other
  • Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
  • Exit Macro support
  • On-screen keyboard with multi-language support
  • BIOS-level access for troubleshooting
