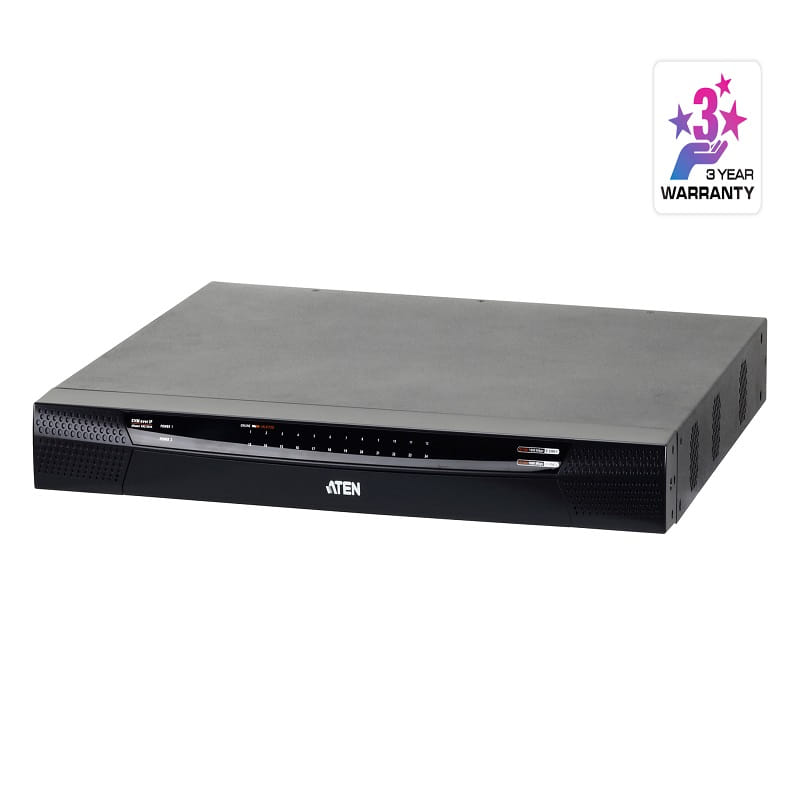

1-Local/2-Remote  Access 24-Port Multi-Interface Cat 5 KVM over IP Switch

1-Local/2-Remote Access 24-Port Multi-Interface Cat 5 KVM over IP Switch

Product Code : KN2124VA

Brand Category : KVM over IP Switches


Description


"

  • Exclusive KN Series Features
  • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
  • Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
  • 2x faster virtual media transmission speeds
  • Simultaneously share one local console and two independent connections to servers
  • Hardware
  • High Port Density – RJ-45 connectors for up to 40 ports in 1U housing
  • Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
  • Two separate buses for remote KVM over IP access
  • Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual Power Supply
  • High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
  • Monitor and control up to 24 computers on a single level or control up to 384 computers in a cascade*
    * Cascade-compatible KVM switches include the following: CS9138, KH1508A, KH1516A, and KH1532A
  • Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • Green IT Fan – speed varies according to temperature
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Customizable events notification
  • Firmware upgradeable
  • Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
  • Port Share Mode – allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management Software
  • Integration with ATEN CCVSR Video Session Recording Software*
  • IPv6 capable
    *supports recording computer operations accessed through the local console and via remote sessions.
  • Easy-to-Use Interface
  • ATEN Exclusive Panel ArrayTM Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera and Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
  • Launch multiple virtual remote desktop sessions to control multiple servers at the same time
  • Fullscreen or scalable virtual remote desktop window
  • Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
  • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
  • Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
  • Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
  • Supports IP/MAC address filtering
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third-party CA certificate authentication
  • Virtual Media
  • Virtual media enables applications, OS patching, software installations and diagnostic testing
  • Works with USB-enabled servers at the operating system and BIOS level
  • Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
  • Virtual Remote Desktop
  • Video quality can be adjusted to optimize data transfer speeds; monochrome color depth, threshold and noise settings reduce data transmission to lower bandwidth
  • Fullscreen or scalable window for desktop sessions
  • Message Board for communication among remote users
  • Mouse DynaSync – automatically synchronizes the local and remote mouse movements
  • Exit Macro support
  • On-screen keyboard with multi-language support
  • BIOS-level access for troubleshooting

"


Add to Query Cart PDF Download


Technical Specification


Console Connections
Local 1
Remote 2
Computer Connections
Direct 24
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI

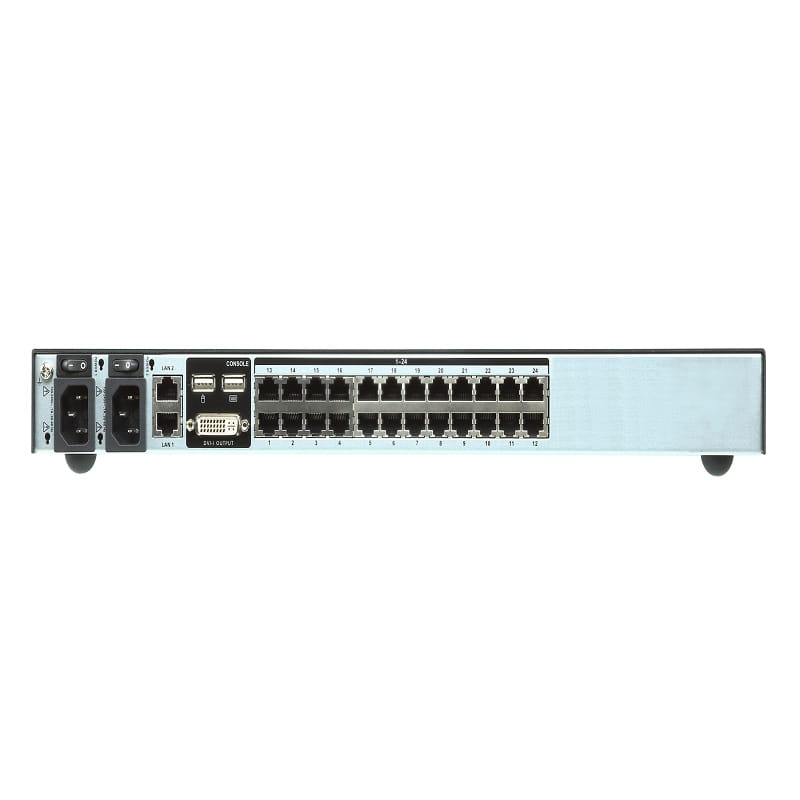

Connectors
Console Ports 2 x USB Type-A Female (White)
1 x DVI-I Female (White)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 24 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
Online / Selected 24 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 Sec
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption AC110V:34.3W:198BTU
AC220V:34.3W:198BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 5.48 kg ( 12.07 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.)
