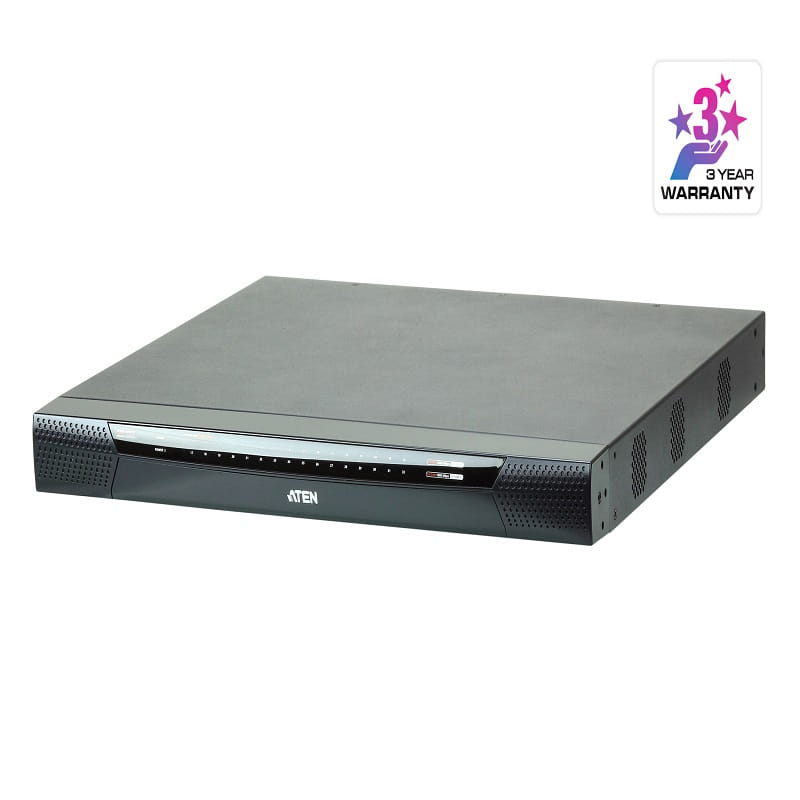

1-Local/2-Remote  Access 32-Port Multi-Interface Cat 5 KVM over IP Switch

1-Local/2-Remote Access 32-Port Multi-Interface Cat 5 KVM over IP Switch

Product Code : KN2132VA

Brand Category : KVM over IP Switches


Description


"

  • New KN Series Exclusive
  • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
  • Extreme virtual media speed – 2 x faster virtual media transmission speed
  • Advanced FPGA graphics processor – with an Full HD resolution of 1920 x 1200
  • Simultaneously share one local console and two independent connections to the attached servers
  • Hardware
  • High port density – RJ-45 connectors and Cat 5e/6 cable for up to 32 ports in a 1U housing
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
  • Two separate buses for remote KVM over IP access
  • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual Power Supply
  • High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
  • Monitor and control up to 32 computers on a single level, or control up to 512 computers in a cascade*
    * Cascade-compatible KVM Switches include the following: CS9138, CS1308, CS1316, KH1508A, KH1516A and KH1532A
  • Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • Green IT-Fan speed varies according to temperature
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Customizable events notification
  • Firmware upgradeable
  • Out-of-Band Access-Modem dial-in/dial out/dial back support
  • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management Software
  • Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
  • Integration with ATEN CCVSR Video Session Recording Software*
  • Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
  • IPv6 capable
    *supports recording computer operations accessed through the local console and via remote sessions.
  • Ease-to-Use Interface
  • ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
  • Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
  • Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
  • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
  • Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
  • Support for IP/MAC Filter
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third party CA certificate authentication
  • Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Virtual Remote Desktop
  • Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display
  • Message Board for communication among remote users
  • Mouse DynaSync-automatically synchronizes the local and remote mouse movements
  • Exit Macros support
  • On-screen keyboard with multilanguage support
  • BIOS-level access for trouble shooting

"


Add to Query Cart PDF Download


Technical Specification


Console Connections
Local 1
Remote 2
Computer Connections
Direct 32
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI

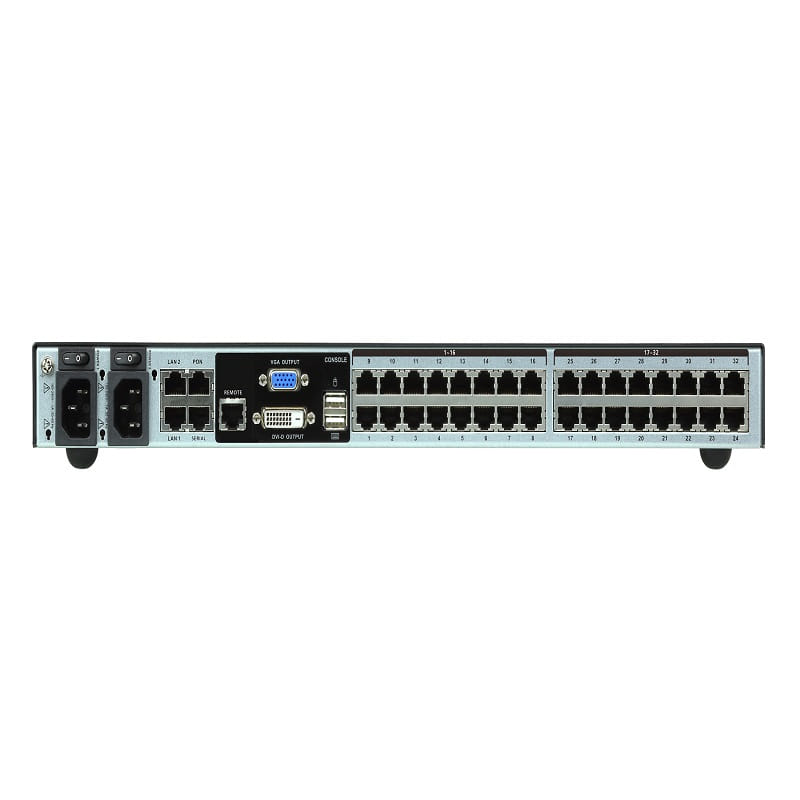

Connectors
Console Ports 2 x USB Type-A Female (White)
1 x DVI-D Female (White)
1 x VGA HDB-15 (Blue)
1 x RJ-45 Female (Black)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 32 x RJ-45 Female
Serial 1 x RJ-45 Female
PON 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
Online / Selected 32 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 Sec
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption AC110V:39.5W:221BTU
AC220V:39.7W:222BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 5.69 kg ( 12.53 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.)
