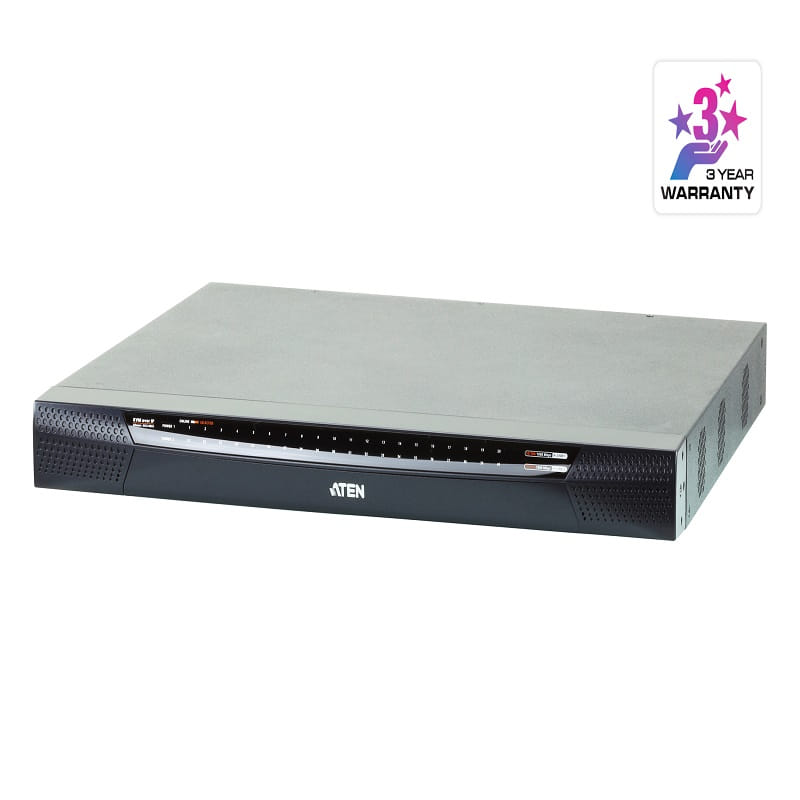

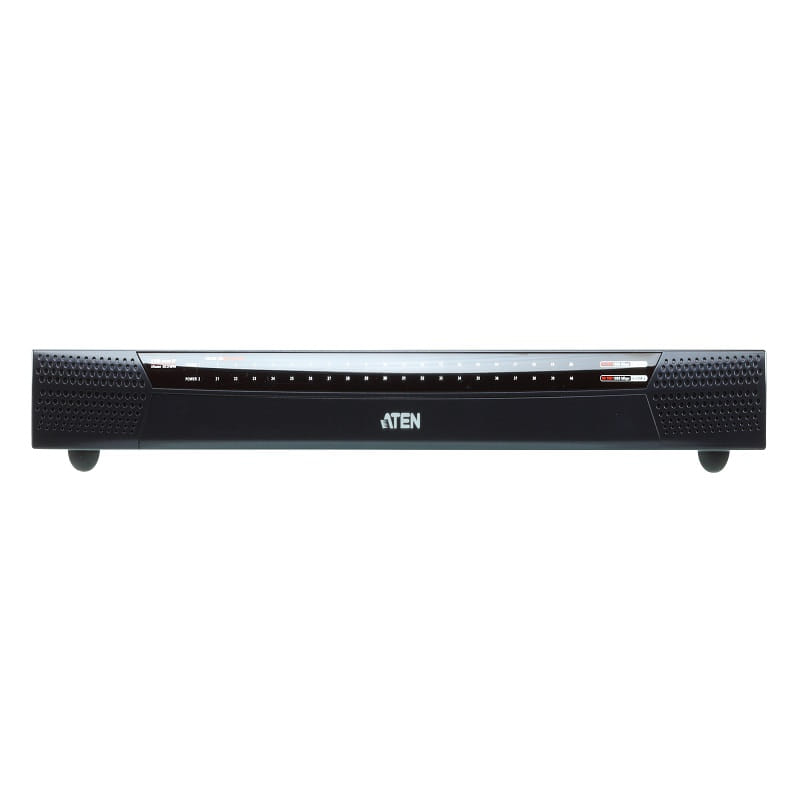

1-Local/2-Remote  Access 40-Port Multi-Interface Cat 5 KVM over IP Switch

1-Local/2-Remote Access 40-Port Multi-Interface Cat 5 KVM over IP Switch

Product Code : KN2140VA

Brand Category : KVM over IP Switches


Description


"

  • Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
  • ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
  • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)

"


Add to Query Cart PDF Download


Technical Specification


Console Connections
Local 1
Remote 2
Computer Connections
Direct 40
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI
Connectors
Console Ports 2 x USB Type-A Female (White)
1 x DVI-I Female (White)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 40 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
Online / Selected 40 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 Sec
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption AC110V:36.5W:207BTU
AC220V:36W:205BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 5.54 kg ( 12.2 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.)
