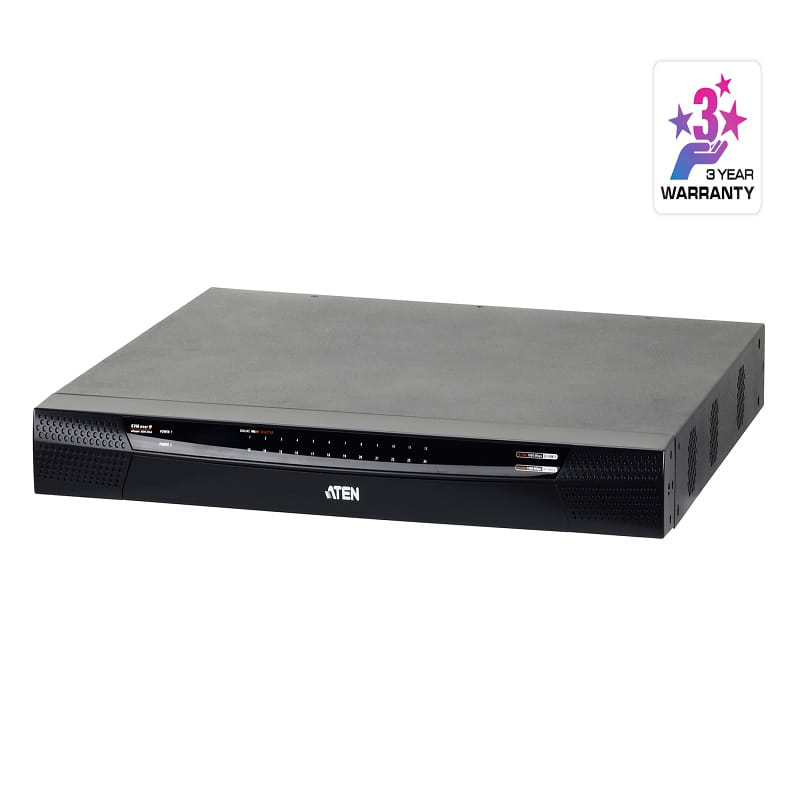

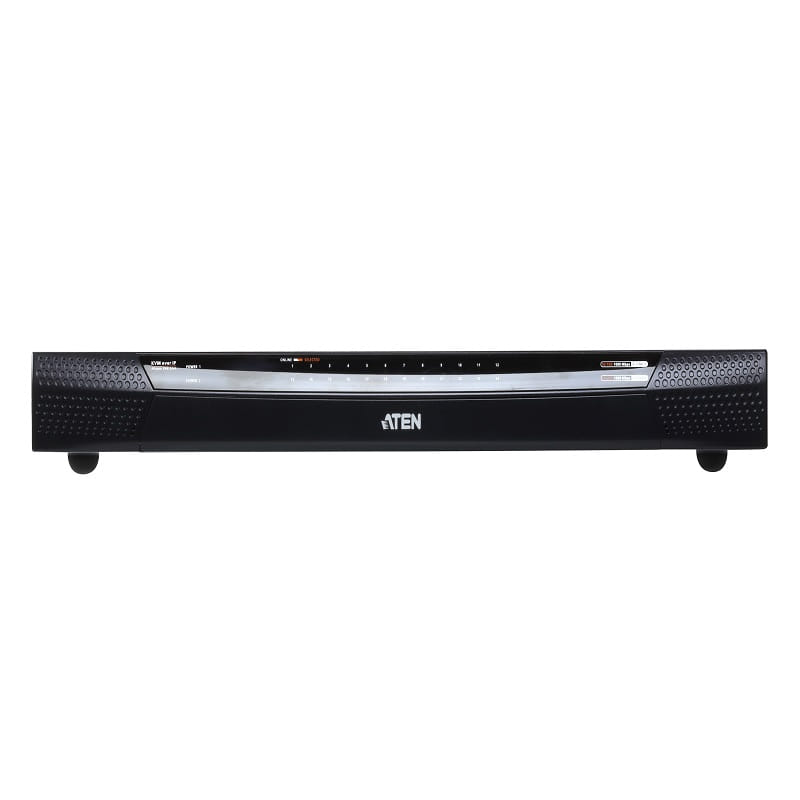

1-Local/4-Remote Access 24-Port Multi-Interface Cat 5 KVM over IP Switch

Product Code : KN4124VA

Brand Category : KVM over IP Switches

Description

Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)

Technical Specification

Console Connections
Local	1
Remote	4
Computer Connections
Direct	24
Maximum	512 (via Cascade)
Port Selection	Pushbuttons, Hotkeys, GUI
Connectors
Console Ports	2 x USB Type-A Female (White) 1 x DVI-I Female (White)
USB Port	3 x USB Type-A Female
Audio	2 x Audio Jack Female
Laptop USB Console (LUC) Port	1 x USB Mini-B Female
KVM Ports	24 x RJ-45 Female
LAN Ports	2 x RJ-45 Female
Power	2 x IEC 60320/C14
Switches
Port Selection	2 x Pushbuttons
Reset	1 x Semi-recessed Pushbutton
Power	2 x Rocker Switches
LEDs
Online / Selected	24 (Green/Orange)
Link 10 / 100 / 1000 Mbps	2 (Red/Orange/Green)
Power	2 (Blue)
Emulation
Keyboard / Mouse	PS/2; USB
Video
Local	1920 x 1200 @ 60Hz
Remote	1920 x 1200 @ 60Hz
Scan Interval	1 – 255 Sec
Maximum Input Power Rating	100–240V~ ; 50-60Hz; 1A
Power Consumption	AC110V:38.2W:215BTU AC220V:38.5W:217BTU
Environmental
Operating Temperature	0 - 40˚C
Storage Temperature	-20 - 60˚C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	5.51 kg ( 12.14 lb )
Dimensions (L x W x H)	43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.)
