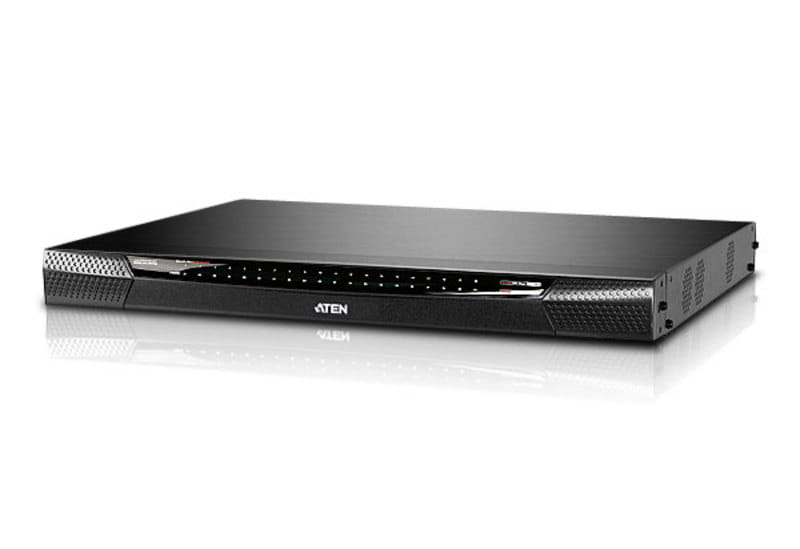

"1-Local/4-Remote Access 40-Port Cat 5 KVM over IP Switch with Virtual Media (1600 x 1200)"

Product Code : KN4140v

Brand Category : KVM over IP Switches


Description


Features

  • Hardware
  • High port density - RJ-45 connectors and Cat 5e/6 cable for up to 40 ports in a 1U housing
  • Simultaneously share access to one local console and four remote KVM over IP switches
  • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support NEW!
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
  • Dual Power Supply
  • High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m
  • Monitor and control up to 40 computers on a single level, or control up to 640 computers in a two-level cascade*

    * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A . Some KVM over IP features may not be supported, depending on the functionality of the cascaded KVM switch.

  • Management
  • Multi Display for viewing extended monitors in a remote session
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • Green IT-Fan speed varies according to temperature
  • End session feature - administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Customizable events notification NEW!
  • Firmware upgradeable
  • Out-of-Band Access-Modem dial-in/dial out/dial back support NEW!
  • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Integration with ALTUSEN CC2000 Management software
  • Power Association enables the switch's KVM ports to be associated with an ATEN/ALTUSEN'S PDUs power outlets for remote power management of the servers from the switch's interface NEW!
  • Manage browser access methods(Browser, http, https) NEW!
  • IPv6 capable NEW!
  • PadClient provides instant, convenient, and secure remote access to control servers through your iPad. Free available on Apple Store.* NEW!

    * PadClient works on iOS 7(and above) with ATEN KN2 and KN4 series KVM switches running on firmware 1.7.162 (and above).

  • Ease-to-Use Interface
  • Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
  • User can launch multiple Virtual Remote Desktop to control multiple connected servers from the same login session
  • Magic Panel
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Panel Array Mode available to both local console operators and remote access users
  • Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers NEW!
  • Video syncing with the local console – local console monitor's EDID information stored on the KVM Adapter Cables for display resolution optimization NEW!

  • Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
  • Support for IP/MAC Filter
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third party CA certificate authentication NEW!

  • Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Supports DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

  • Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display
  • Message Board for communication among remote usersc
  • Mouse DynaSync -automatically synchronizes the local and remote mouse movements
  • Exit Macros support
  • On-screen keyboard with multilanguage support
  • BIOS-level access

Add to Query Cart PDF Download


Technical Specification


Computer Connections
Direct 40
Maximum 640 (via Cascade)
Console Connections
Local 1
Remote 4
Port Selection Pushbutton, GUI, Hotkey

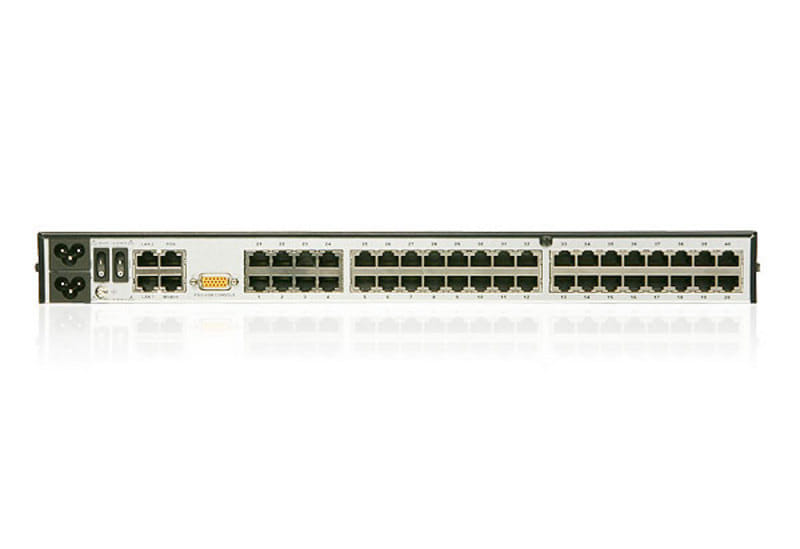

Connectors
Console Ports 1 x SPHD-18 Female (Yellow)
KVM Ports 40 x RJ-45 Female (Black)
Power 2 x 3-prong AC socket
LAN Ports 2 x RJ-45 Female (Black)
PON 1 x RJ-45 Female (Black)
Modem 1 x RJ-45 Female (Black)
USB Port 3 x USB Type A Female (White)
Audio 2 x Audio Jack Female
Switches
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker
Port Selection 2 x Pushbutton
LEDs
Online 40 (Green)
Selected 40 (Red)
Power 1 (Blue)
Link 10 / 100 / 1000 Mbps 2 (Red / Red + Green / Green)
Emulation
Keyboard / Mouse PS/2 / USB (PC, Mac, Sun) / Serial
Video 1600x1200 @ 60Hz
Scan Interval 1-255 Seconds
Maximum Input Power Rating 100-240VAC; 50-60Hz; 1.0A
Power Consumption 115V / 54W; 230V / 56W
Environmental
Operating Temperature 0 - 50˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 6.12 kg ( 13.48 lb )
Dimensions (L x W x H) 43.84 x 41.21 x 4.40 cm
(17.26 x 16.22 x 1.73 in.)
