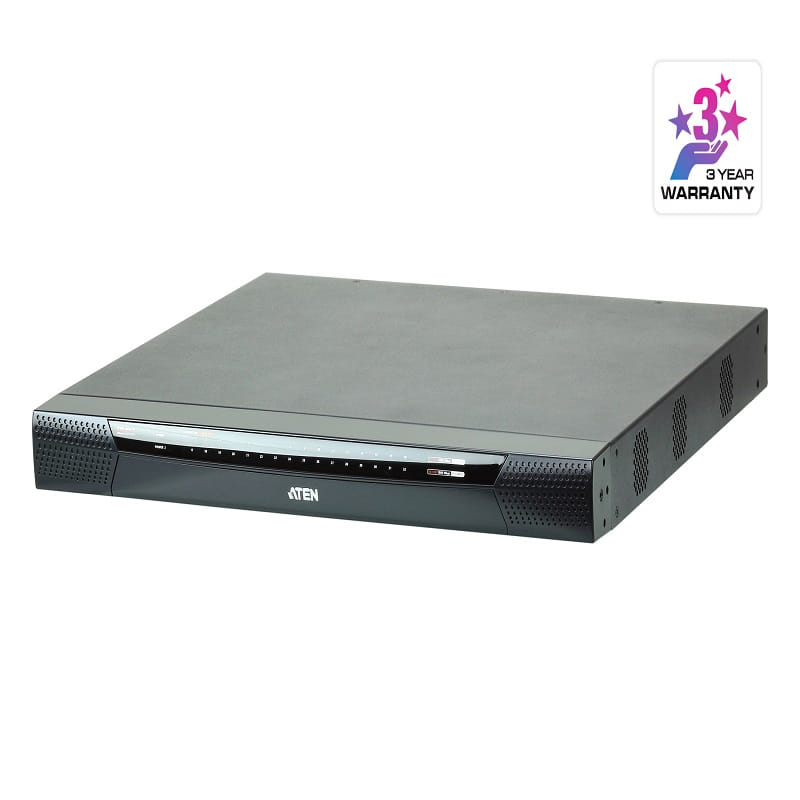

1-Local/8-Remote Access 32-Port Multi-Interface Cat 5 KVM over IP Switch

"

• New KN Series Exclusive
• Advanced FPGA graphics processor – with an Full HD resolution of 1920 x 1200
• Extreme virtual media speed – 2 x faster virtual media transmission speed
• High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
• Simultaneously share one local console and four/eight independent connections to the attached servers
• Hardware
• High port density – RJ-45 connectors and Cat 5e/6 cable for up to 32 ports in a 1U housing
• Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
• Eight separate buses for remote KVM over IP access
• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
• Blade server support
• Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
• Local console provides USB keyboard and mouse support
• Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
• Audio enabled
• Dual Power Supply
• High video resolution – up to 1920 x 1200 @ 60Hz – 24 bit color depth for the local console up to 50m, and 24 bit for the remote sessions
• Monitor and control up to 32 computers on a single level, or control up to 512 computers in a cascade*
• * Cascade-compatible KVM Switches include the following: CS9138, CS1308, CS1316, KH1508A, KH1516A and KH1532A
• Management
• Up to 64 user accounts
• Up to 32 concurrent logins
• Green IT-Fan speed varies according to temperature
• Event logging and Windows-based Log Server support
• Critical system event notification via SMTP email; SNMP trap and Syslog support
• Customizable events notification
• Firmware upgradeable
• Out-of-Band Access-Modem dial-in/dial out/dial back support
• Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Integration with ATEN CC2000 Management Software
• Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
• Integration with ATEN CCVSR Video Session Recording Software*
• Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
• IPv6 capable
  *Supports recording computer operations accessed via remote sessions.
• Ease-to-Use Interface
• ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
• Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
• Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
• Full-screen or sizable and scalable Virtual Remote Desktop
• Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
• Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
• Advanced Security
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
• Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
• Support for IP/MAC Filter
• Configurable user and group permissions for server access and control
• Automated CSR creation utility and third party CA certificate authentication
• Virtual Media
• Virtual media enables file applications, OS patching, software installation and diagnostic testing
• Works with USB enabled servers in operating system and BIOS level
• Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Virtual Remote Desktop
• Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full screen video display or scalable video display
• Message Board for communication among remote users
• Mouse DynaSync-automatically synchronizes the local and remote mouse movements
• Exit Macros support
• On-screen keyboard with multilanguage support
• BIOS-level access for trouble shooting

"
