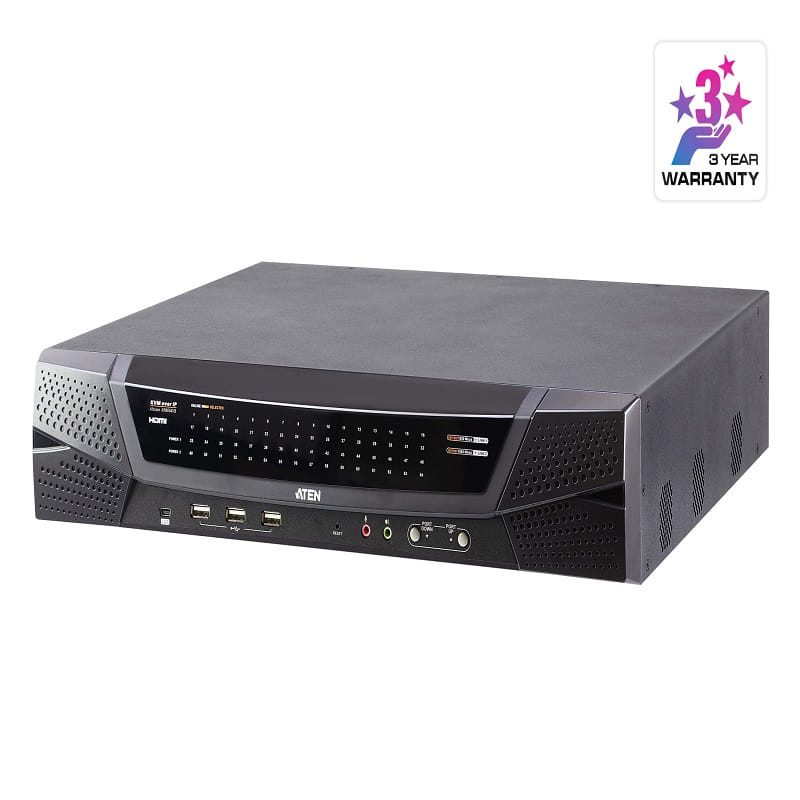

1-Local/8-Remote Shared Access 64-Port Multi-Interface Cat 5 KVM over IP Switch

1-Local/8-Remote Shared Access 64-Port Multi-Interface Cat 5 KVM over IP Switch

Product Code : KN8064VB

Brand Category : KVM over IP Switches


Description


"

  • Hardware
    • High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 64 ports in 2U housing
    • Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
    • 8 separate buses for remote KVM over IP access
    • Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
    • Blade server support
    • Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
    • Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
    • Audio enabled
    • Dual power supply
    • Video resolution up to 1920 x 1200 @ 60 Hz; 24-bit color depth
    • Cascadable – controls up to 512 computers




<!-- Features List-2 -->

  • Management
    • 8 separate buses for both local and remote KVM over IP access
    • Integration with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
    • Supports 64 user accounts and up to 32 users can be logged in at the same time for management
    • Green IT Fan – auto-fan-speed adjustment responding to temperature
    • Event logging and Windows-based log server
    • Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
    • Event destination – event logs will be saved to Log server, Syslog server, and USB drive
    • Firmware upgradeable
    • Out-of-Band access – modem dial-in / dial-out / dial-back support
    • Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
    • Port share mode – allows multiple users to gain access to a server simultaneously
    • Supports ATEN KVM over IP console station (KA82xx series)
    • Power association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
    • Supports IPv4, IPv6




<!-- Features List-3-->

  • Easy-to-Use Interface
    • Supports PadClient application on an iPad for mobile management
    • Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
    • Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivities
    • Multiplatform client support (Windows, Mac OS X, Linux, and Sun)
    • Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, and Netscape
    • Browser-based GUI in pure Web technology – allows administrators to perform administrative tasks without pre-installed software. (e.g. Java)
    • Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
    • Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
    • Full-screen or sizable and scalable virtual remote desktop
    • Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously
    • Video syncing with the local console – local console monitor’s EDID information stored on the KVM adapter for display resolution optimization




<!-- Features List-4 -->

  • Security
    • High-grade security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
    • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
    • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
    • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for independent keyboard / mouse, video, and virtual media data encryption
    • Support for IP / MAC filter
    • Configurable user and group permissions for server access and control
    • Automated CSR creation utility and third party CA certificate authentication




<!-- Features List-5 -->

  • Virtual Media
    • Virtual media enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Works with USB enabled servers in operating system and BIOS level
    • Support USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images




<!-- Features List-6 -->

  • Virtual Remote Desktop
    • Video quality such as monochrome color depth, threshold and noise settings, bandwidth increment / reduction can be adjusted for optimizing data transfer speed
    • Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
    • On-screen keyboard with multi-language support
    • BIOS-level access for Troubleshooting

"


Add to Query Cart PDF Download


Technical Specification


Console Connections
Local 1 (Share)
Remote 8
Computer Connections
Direct 64
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI

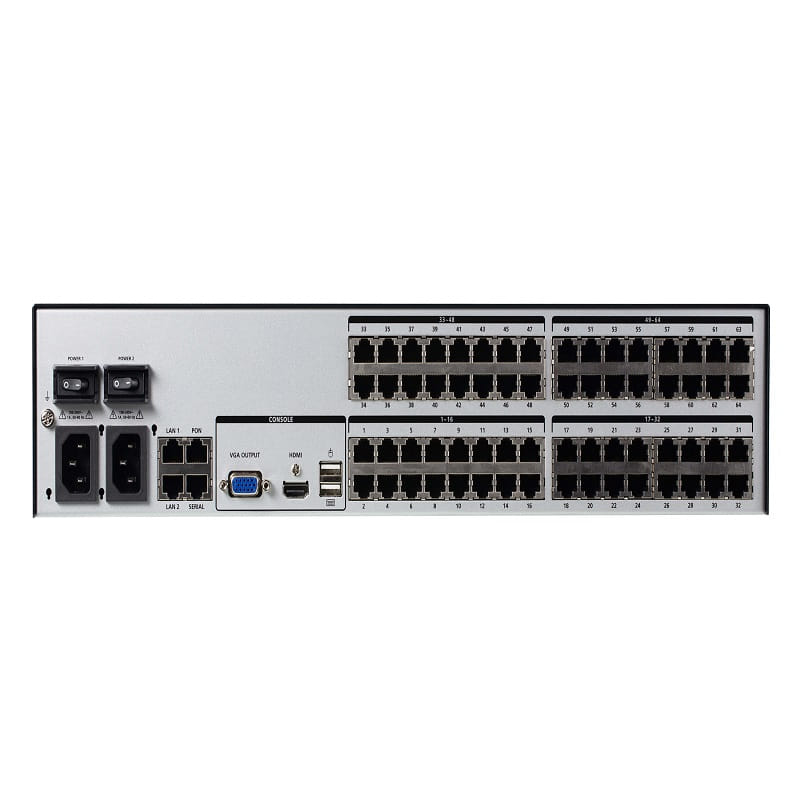

Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDMI Female (Black)
1 x VGA HDB-15 (Blue)
USB Port 3 x USB Type A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 64 x RJ-45 Female
Serial 1 x RJ-45 Female
PON 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
Online / Selected 64 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Green)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 Sec
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption AC110V:84.7W:450BTU
AC220V:83.3W:444BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 7.19 kg ( 15.84 lb )
Dimensions (L x W x H) 43.39 x 41.26 x 8.80 cm
(17.08 x 16.24 x 3.46 in.)
