1-Local/Remote Share Access 16-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP switch

1-Local/Remote Share Access 16-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP switch

Product Code : KL1516Ai

Brand Category : LCD KVM Switches / Consoles


Description


"

  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

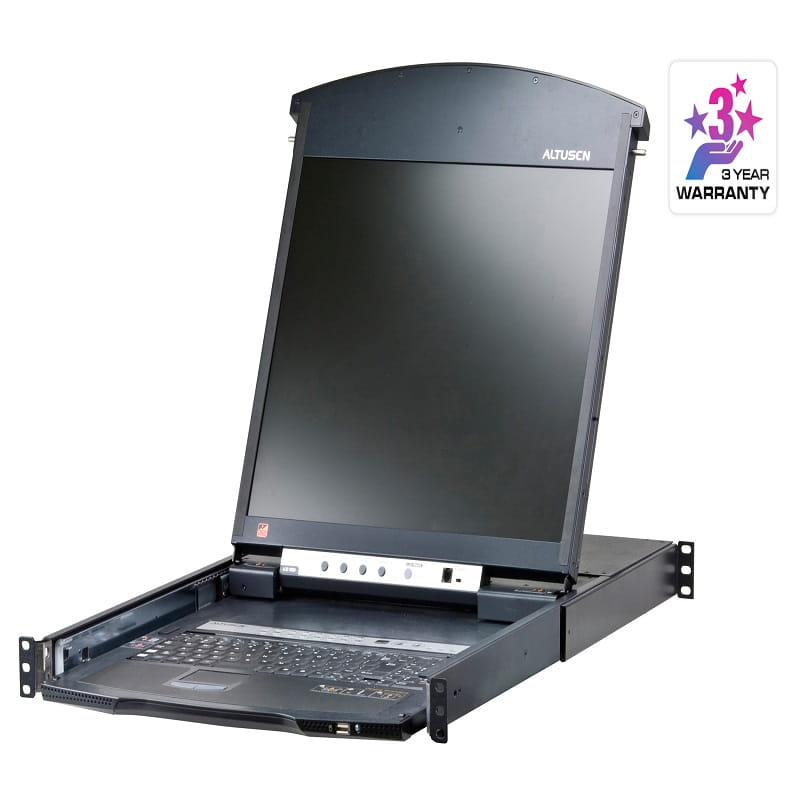

  • Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
  • A single console controls up to 16 computers
  • Daisy chain up to 15 additional KVM switches to control up to 256 computers*
  • One bus for remote KVM over IP access

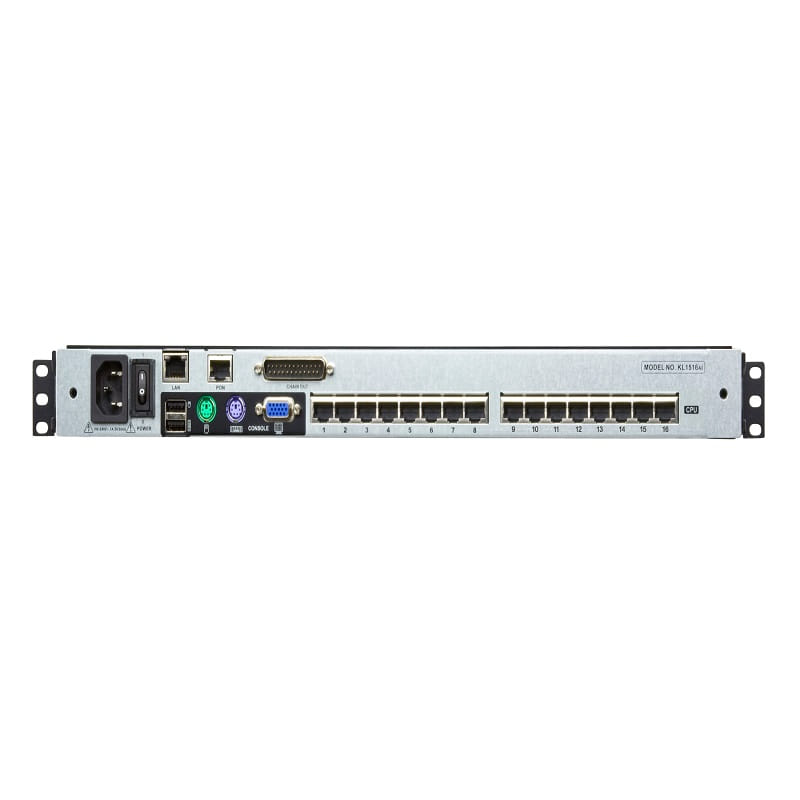

  • Space-saving RJ-45 connectors and Cat 5e/6 cabling
  • KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Multiplatform support: PC, Mac, Sun and Serial
  • Supports external USB mouse
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail – LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock – enables the console drawer to remain securely locked away in position when not in use
  • LCD power button helps save energy and prolong displays´ life
  • Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz** up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
  • Optional rack mount kits available including easy installation options

    * Compatible KVM switches: KH1508A/KH1516A, ACS1208A/ACS1216A, CS1708A/CS1716A
    ** With KVM Adapter Cable KA71xx or KA75xx series; please check the product label to ensure it's the FHD version.

    Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate any running session
  • Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Remote power control for attached Power Over the NET™ devices
  • Integration with ATEN CC2000 Management software
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Firmware upgradeable
  • IPv6 capable

    Easy-to-Use Interface
  • Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
  • Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Panel Array Mode™
  • Keyboard broadcast* – keyboard input can be duplicated on all the attached servers

    * Local Console only

    Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
  • IP/MAC Filter support for enhanced security protection
  • Configurable user and group permissions for server access and control

    Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Message board feature allows logged in users to communicate with each other
  • Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multi language support
  • BIOS-level access
  • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

    More information about ""Easy Rack Mounting""...

"


Add to Query Cart PDF Download


Technical Specification


"

"
