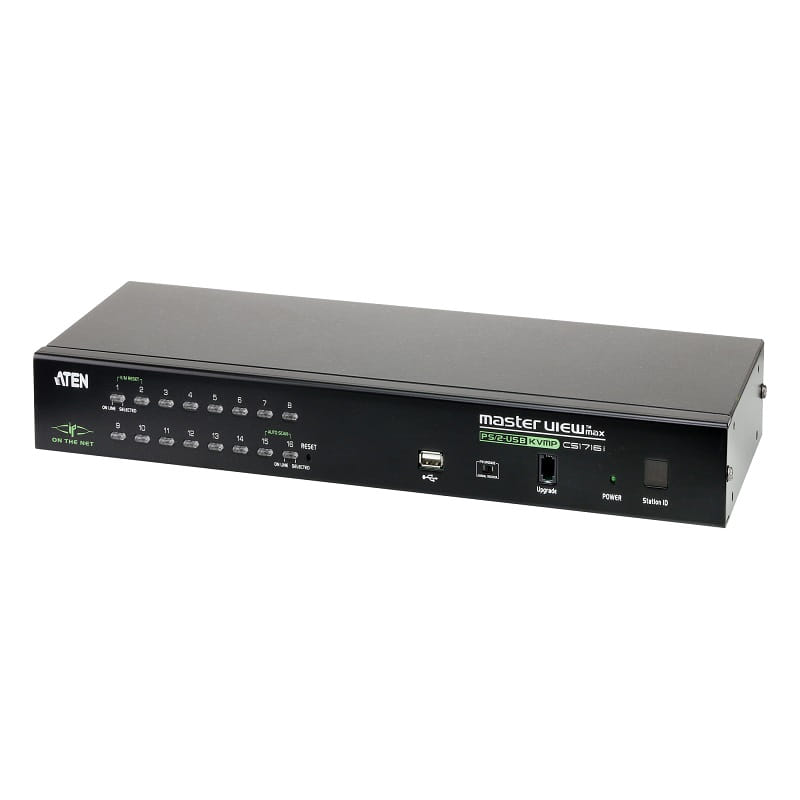

1-Local/Remote Share Access 16-Port PS/2-USB VGA KVM over IP Switch

Product Code : CS1716i

Brand Category : KVM over IP Switches

Description

Management
Up to 64 user accounts
Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Up to 32 concurrent logins
Multilanguage web UI support featuring a tree-structured local and remote OSD
Adjustable video quality for flexible adaptation to diverse network environments
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
Firmware upgradable
Backup and restore configuration and user account settings
Event logging
Enable/disable browser access
IPv6 capable

Ease-to-Use Interface
Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Port names automatically reconfigured when station sequence is changed
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
Windows client and Java client software support; Java client works with all operating systems

Advanced Security
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP/MAC Filter
Local and remote access logged and authenticated

Virtual Remote Desktop
Resizable remote desktop window
Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
Mouse DynaSync™
On-screen keyboard with multilanguage support
BIOS-level access

Hardware
16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console
Daisy chain up to 15 additional units - control up to 256 computers from a single console*
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Multiplatform support - Windows, Linux, Mac, and Sun
Front panel USB hub allows connected computers to access USB peripherals
Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Supports USB keyboards for Windows, Mac and Sun
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack

*Compatible KVM Switches include the following: ACS1208A, ACS1216A, CS1708A, CS1716A, KH1508A, KH1516A

** The video quality of CS1708i/CS1716i has been enhanced to Full HD. To distinguish between the non-FHD and FHD versions, please refer to below link: FHD & Non-FHD Comparison Photo

Add to Query Cart PDF Download

Computer Connections
Direct	16
Maximum	256 (via daisy chain)
Port Selection	OSD/GUI; Hotkey; Pushbutton

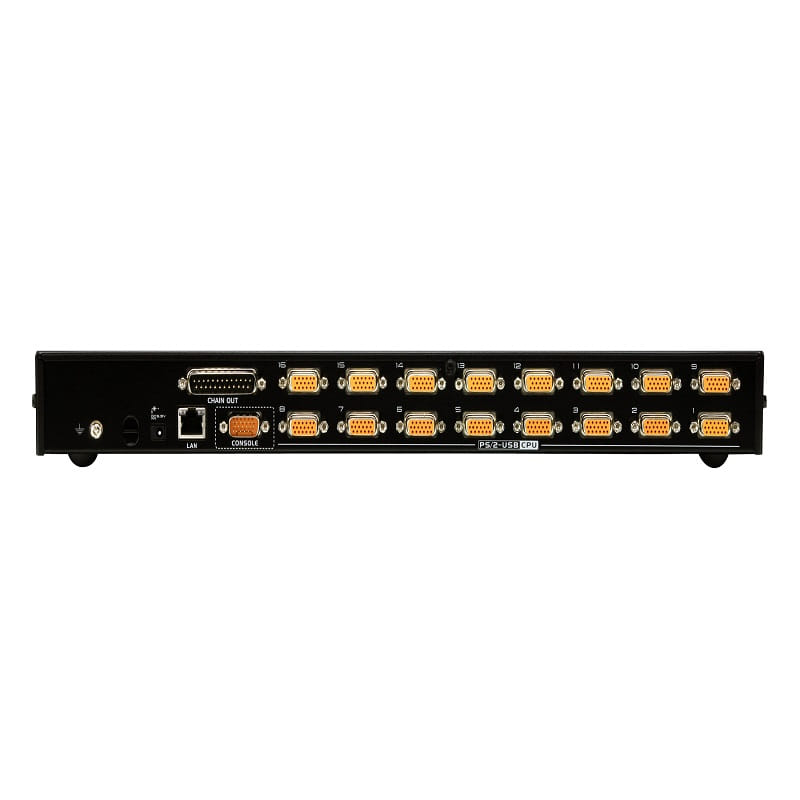

Connectors
Console Ports	1 x SPHD Male (Yellow)
KVM Ports	16 x SPHD Female (Yellow)
Daisy Chain Ports	1 x DB-25 Male
Power	1 x DC Jack
LAN Ports	1 x RJ-45 Female
Firmware Upgrade	1 x RJ-11
USB Port	1 x USB Type A Female
Switches
Reset	1 x Semi-recessed Pushbutton
Port Selection	16 x Pushbutton
Firmware Upgrade Recovery	1 x Slide
LEDs
Online	16 (Orange)
Selected	16 (Green)
Station ID	1 x 2-digit, 7-segment (Orange)
Power	1 (Dark Green)
10/100 Mbps	1 (Orange/Green - at LAN port)
Emulation
Keyboard / Mouse	PS/2, USB
Video
Local	2048 x 1536; DDC2B
Remote	FHD : 1920 x 1200 @ 60Hz Non-FHD : 1600 x 1200 @ 60Hz
Scan Interval	1–255 sec.
Power Consumption	DC5.3V:9.2W:58BTU
Environmental
Operating Temperature	0–50°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	3.00 kg ( 6.61 lb )
Dimensions (L x W x H)	43.72 x 15.96 x 4.40 cm (17.21 x 6.28 x 1.73 in.)
