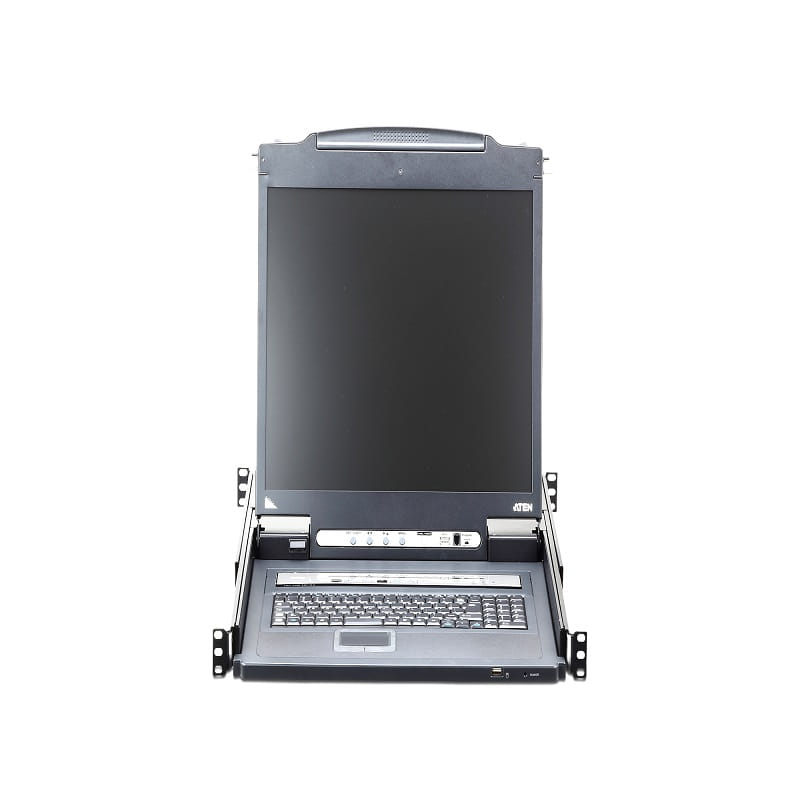

1-Local/Remote Share Access 16-Port PS/2-USB VGA Single Rail LCD KVM over IP switch

1-Local/Remote Share Access 16-Port PS/2-USB VGA Single Rail LCD KVM over IP switch

Product Code : CL5716I

Brand Category : LCD KVM Switches / Consoles

Description

"

  • Hardware
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17"" or 19"" LED-backlit LCD monitor in a Slideaway™ housing
  • Space saving technology - up to two consoles (one bus) control up to 16 computers
  • Daisy chain up to 15 additional units – control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
  • Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
  • Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • LCD module USB port allows connected computers to access USB peripherals*
  • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
  • Hot pluggable - add or remove computers without having to power down the switch
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
  • Supports multimedia USB keyboards for Windows, Mac and Sun
  • Supports external USB mouse
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Rack mountable in a 1U system rack
  • Optional rack mount kits available including easy installation options
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
    * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.




  • Management
  • Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Up to 32 concurrent logins
  • Multilanguage web UI support featuring a tree-structured local and remote OSD
  • Adjustable video quality for flexible adaptation to diverse network environments
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
  • Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
  • Integration with CC2000 Centralized Management Software
  • Backup and restore configuration and user account settings
  • Event logging
  • IPv6 capable




  • Ease-to-Use Interface
  • Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
  • Windows client and Java client software support; Java client works with all operating systems
  • Beeper on/off via hotkey and OSD
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese




  • Advanced Security
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
  • Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
  • Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
  • External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
  • Support for IP/MAC Filter
  • Local and remote access logged and authenticated




  • Virtual Remote Desktop
  • Resizable remote desktop window
  • Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
  • Mouse DynaSync™
  • On-screen keyboard with multi-language support
  • BIOS-level access

    More information about ""Easy Rack Mounting""...

"

Add to Query Cart PDF Download

Technical Specification

Function CL5716IM CL5716IN
Console Connections
Local 1 (Share Remote Bus) 1 (Share Remote Bus)
Remote 1 1
Computer Connections
Direct 16 16
Maximum 256 (via Daisy-chain) 256 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton OSD, Hotkey, Pushbutton

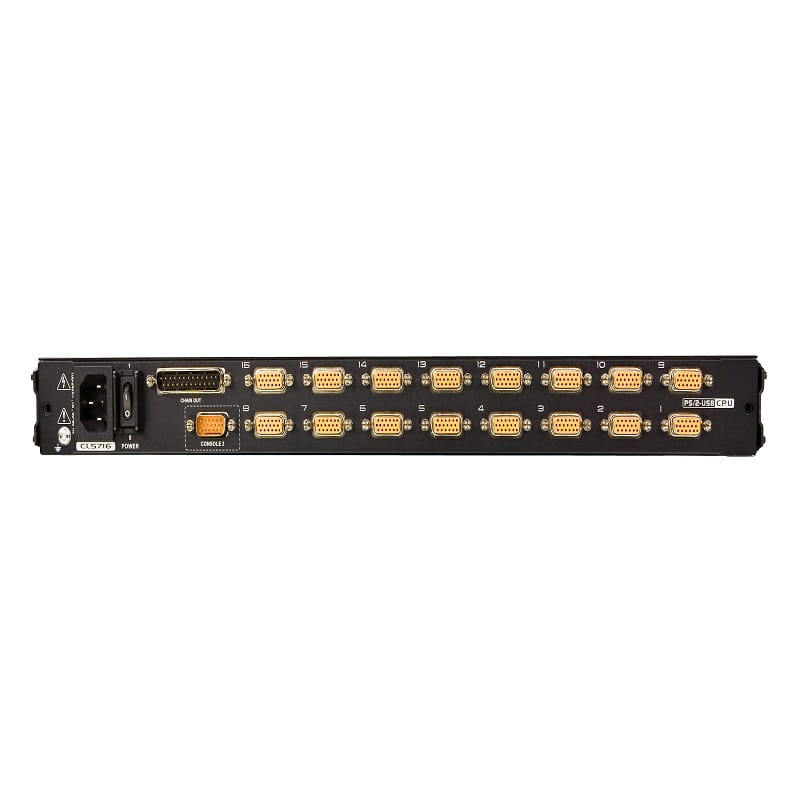

Connectors
External Console Ports 1 x SPHD Male (Yellow) 1 x SPHD Male (Yellow)
External Mouse Port 1 x USB Type-A Female 1 x USB Type-A Female
USB Port 1 x USB Type-A Female 1 x USB Type-A Female
KVM Ports 16 x SPHD Female 16 x SPHD Female
Daisy Chain Ports 1 x DB-25 Male 1 x DB-25 Male
Firmware Upgrade 1 x RJ-11 Female 1 x RJ-11 Female
LAN Ports 1 x RJ-45 Female 1 x RJ-45 Female
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
Switches
Port Selection 2 x Pushbuttons 2 x Pushbuttons
Station Selection 2 x Pushbuttons 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Switch 1 x Switch
Power 1 x Rocker Switch 1 x Rocker Switch
LCD On/Off 1 x LED Pushbutton (Orange) 1 x LED Pushbutton (Orange)
LCD Adjustment 4 x Pushbuttons 4 x Pushbuttons
LEDs
Online 16 x (Orange) 16 x (Orange)
Port ID 1 x 2-digit, 7-segment (Yellow) 1 x 2-digit, 7-segment (Yellow)
Station ID 1 x 2-digit, 7-segment (Yellow) 1 x 2-digit, 7-segment (Yellow)
10/100 Mbps 1 x (Orange/Green) 1 x (Orange/Green)
Power 1 x (Dark Green) 1 x (Dark Green)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)		 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Video
Remote 1920 x 1200 @60 Hz 1920 x 1200 @60 Hz
Panel Spec
LCD Module 17" TFT-LCD 19" TFT-LCD
Resolution 1280 x 1024 @75 Hz 1280 x 1024 @75 Hz
Pixel Pitch 0.264 mm x 0.264 mm 0.294 mm x 0.294 mm
Response time 5 ms 5 ms
Viewing Angle 170° (H), 160° (V) 170° (H), 160° (V)
Support Color 16.7M colors 16.7M colors
Contrast Ratio 1000:1 1000:1
Luminance 250 cd/m⊃2; 250 cd/m⊃2;
Emulation
Keyboard / Mouse PS/2, USB PS/2, USB
Scan Interval 1-255 sec. 1-255 sec.
Maximum Input Power Rating 100-240V AC, 50-60Hz, 1A 100-240 VAC, 50-60Hz, 1A
Power Consumption AC110V:26.8W:138BTU
AC220V:27.7W:143BTU		 AC110V:30.8W:157BTU
AC220V:31.8W:162BTU
Environmental
Operating Temperature 0-50°C 0-50°C
Storage Temperature -20-60°C -20-60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic Metal + Plastic
Weight 13.61 kg ( 29.98 lb ) 13.67 kg ( 30.11 lb )
Dimensions (L x W x H) 48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.)		 48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)
