1-Local/Remote Share Access 8-Port Multi-Interface Cat 5 KVM over IP Switch

1-Local/Remote Share Access 8-Port Multi-Interface Cat 5 KVM over IP Switch

Product Code : KH1508Ai

Brand Category : KVM over IP Switches

Description

  • Hardware
  • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
  • A dedicated USB port directly connects to a laptop for easy Console operation
  • One bus for remote KVM over IP access
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Multiplatform support - Windows, Mac, Sun and Linux
  • Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
  • Daisy-chain up to 15 additional units – control up to 128 computers from a single console

    Note: With KVM Adapter KA71xx or KA75xx series

    Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
  • Port Shared Mode allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management software
  • Power Over the NET™ integration for remote power control
  • Firmware upgradeable
  • IPv6 capable

    Easy-to-Use Interface
  • Local console, browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support (IE, Firefox, Safari, Opera, Netscape)
  • Browser-based UI in Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Panel Array Mode™
  • Keyboard broadcast – keyboard input can be duplicated on all the attached servers

    Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
  • IP/MAC Filter for enhanced security protection
  • Configurable user and group permissions for server access and control

    Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen or scalable video display
  • Message Board for communication among remote users
  • Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multilanguage support
  • Exit Macros support
  • BIOS-level access

Add to Query Cart PDF Download

Technical Specification

Computer Connections
Direct 8
Maximum 128 (via Daisy-chain)
Port Selection OSD; Hotkey; Pushbutton

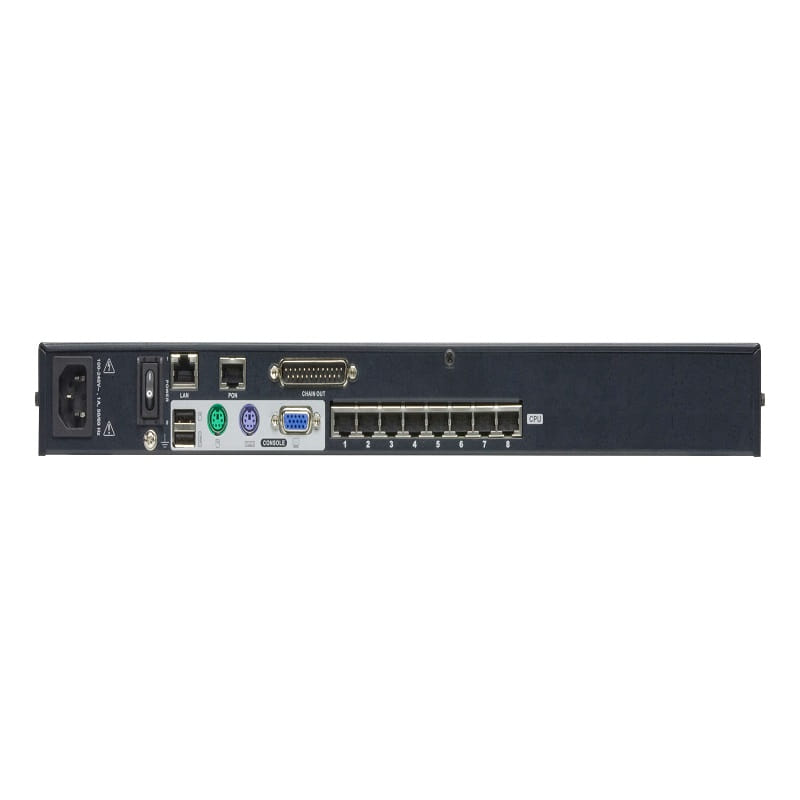

Connectors
Console Ports 2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 8 x RJ-45 Female
Daisy Chain Ports 1 x DB-25 Male
Power 1 x IEC 60320/C14
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11 Female
PON 1 X RJ-45 Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
Switches
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
Port Selection 8 x Pushbutton
LEDs
Online 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Station ID 1 x 2-digit 7-segment (Orange)
Link 1 (Orange)
10/100/1000 Mbps non-FHD:10/100 Mbps (Orange / Green)
FHD:100/1000 Mbps (Orange / Green)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1600 x 1200 @ 60Hz (non-FHD version)
1920 x 1200 @ 60Hz (FHD version)
Remote 1600 x 1200 @ 60Hz (non-FHD version)
1920 x 1200 @ 60Hz (FHD version)
Scan Interval 1–255 secs
Maximum Input Power Rating 100–240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:8.7W:49BTU
AC220V:8.7W:49BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0–80% RH; Non-condensing
Physical Properties
Housing Metal
Weight 2.68 kg ( 5.9 lb )
Dimensions (L x W x H) 43.72 x 16.36 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
