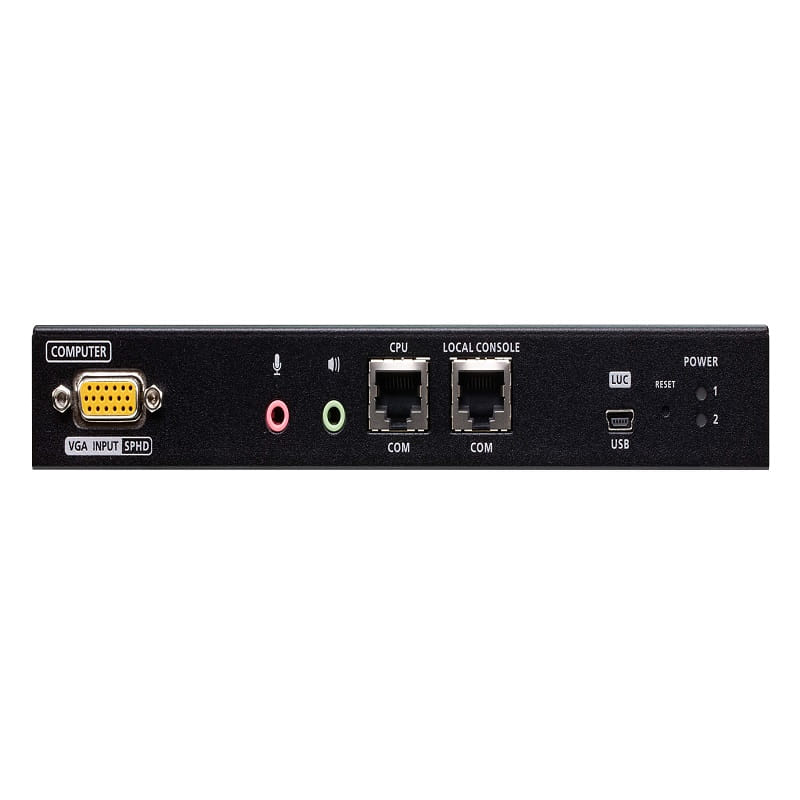

"1-Local/Remote Share Access Single Port VGA KVM over IP Switch"

Product Code : CN9000

Brand Category : KVM over IP Switches


Description


"

  • Hardware
  • Provides over-IP capability to KVM switches that do not have built in over-IP functionality *
  • Supports PS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
  • Local console provides PS/2, USB keyboard and mouse support***
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Virtual Media Support
  • High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
  • Enhanced fps (frames per second) throughput for crisp responsive video display
    Note:
    * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
    - Some of the CN8000A’s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
    - Some features found on the cascaded KVM switches may not be supported on the CN8000A. (For example, the CS1754’s audio.)
    ** Requires CV130A converter purchase
    ***Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue.




  • Management
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
  • Easy configuration through local console OSD
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Critical system events sent by email and SNMP trap; and Syslog support
  • Remote Firmware upgradable
  • Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party
  • software (such as PuTTY) for Telnet and SSH sessions
  • PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
  • Integration with ATEN CC2000 Centralized Management Software
  • Integration with ATEN CCVSR Video Session Recording Software
  • Power Over the NET integration for remote power control
  • DDNS (Dynamic Domain Name System)
  • Export/import user account and configuration settings
  • Enable/disable browser operation
  • IPv6 capable




  • Easy-to-Use Interface
  • Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Magic Panel




  • Advanced Security
  • Smart Card /CAC Reader Support
  • External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • TLS 1.2 encryption to protect password when users log in
  • Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
  • Support for IP/MAC Filter
  • Supports password protection
  • Private CA




  • Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Convenient to use without virtual media cable




  • Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display
  • Message Board for communication among remote users
  • On-screen keyboard with multilanguage support
  • Mouse Dynasync
  • Exit Macros support
  • BIOS-level access

"


Add to Query Cart PDF Download


Technical Specification


"

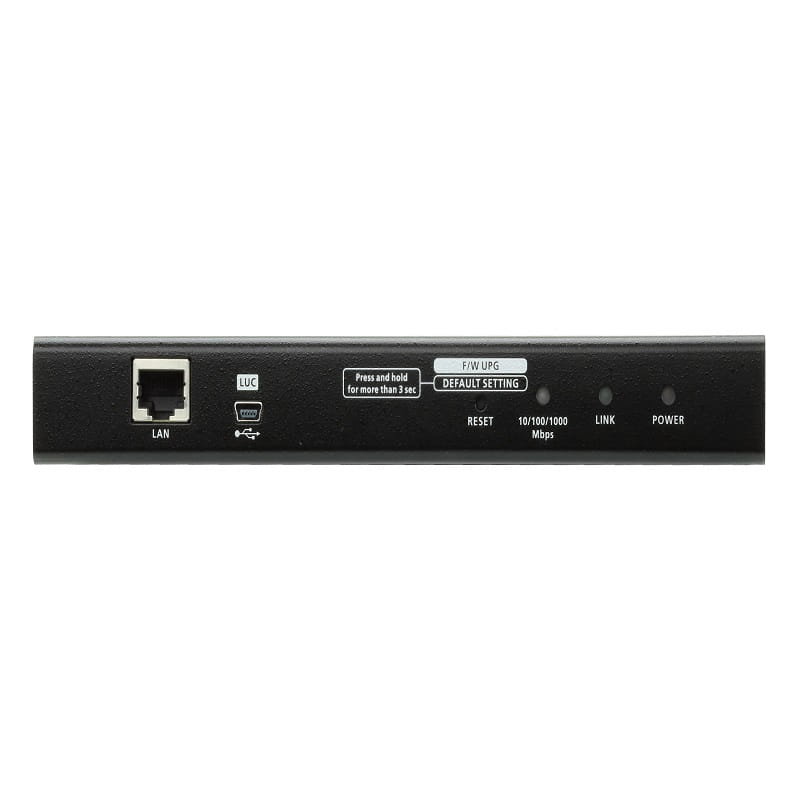

Connectors
Console Ports 1 x SPHD Male (Yellow)
KVM (Computer) Ports 1 x SPHD Female (Yellow)
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
PON 1 x DB-9 Male
RS-232 1 x DB-9 Male
LAN Ports 1 x RJ-45 Female
Power 1 x DC Jack
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
Power 1 (Orange)
Link 1 (Green)
10/100/1000 Mbps 1 (Orange / Orange+Green /Green)
Emulation
Keyboard / Mouse USB; PS/2
Video Up to 1920 x 1200 @ 60 Hz; DDC2B
Power Consumption DC5.3V:4.79W:31BTU
Environmental
Operating Temperature 0 - 50°C (CN8000A)
0 - 40°C (Power Adapter)
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 20.00 x 8.14 x 2.50 cm
(7.87 x 3.2 x 0.98 in.)

"
