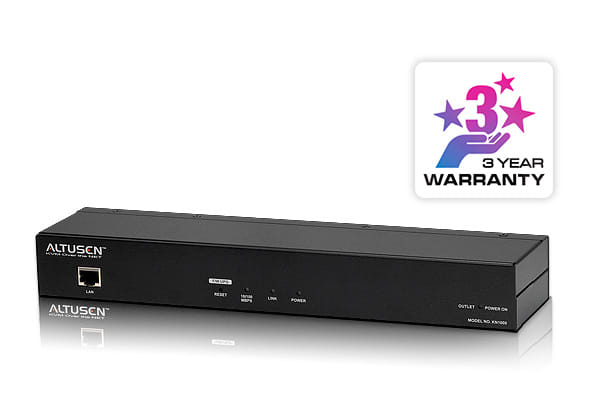

1-Local/Remote Share AccessSingle Port VGA KVM over IP Switch with Single Outlet

1-Local/Remote Share AccessSingle Port VGA KVM over IP Switch with Single Outlet

Product Code : KN1000

Brand Category : KVM over IP Switches

Description

  • Hardware
  • Provides over-IP capability to servers or KVM switches that do not have built in over-IP functionality*
  • Built in single port Power Switch
  • Supports PS/2, USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
  • Local console provides PS/2, and USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Virtual Media Support
  • High video resolution – up to 1600 x 1200 @ 60Hz- 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hzwith 24 bit color depth for remote sessions
    * Compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758, CS1708A, CS1716A, ACS1208A, ACS1216A, KH2508A, KH2516A, KH1508A, and KH1516A
  • Some of the KN1000's features may not be supported, depending on the functionality of the connected KVM switch. (For example, some switches do not support virtual media.)
  • Some features found on the connected KVM switches may not be supported on the KN1000. (For example, the CS1754's audio.)
    ** Requires CV130A converter purchase

    Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Remote Firmware upgradable
  • Serial console management – serial terminal access. Access the device connected to KN1000 via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
  • PPP mode (modem) dial-in/dial out support for out-of-band, and low bandwidth operation
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Integration with ALTUSEN CC2000 Management software
  • Power Over the NET™ integration for remote power control
  • Remote power on and off control function with Wake on LAN
  • On/Off scheduling for power outlet. Power management tasks can be scheduled on a daily, weekly, monthly or user-specified time basis
  • Safe shutdown support
  • Auto-Ping pings a device to determine its status, if the ping test fails after a set amount of time- it automatically takes an action assigned
  • DDNS (Dynamic Domain Name System)
  • Export/import user account and configuration settings
  • Manage browser access methods (disable browser, http, or https)

    Ease-to-Use Interface
  • Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Magic Panel – a special hideaway control panel with configurable function icon

    Advanced Security
  • Smart Card /CAC Reader Support
  • External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
  • IP/MAC Filter for enhanced security protection
  • Supports password protection
  • Private CA

    Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

    Virtual Remote Desktop
  • BIOS-level access
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display
  • Message Board for communication among remote users
  • On-screen keyboard with multilanguage support
  • Mouse Dynasync™
  • Exit Macros support

Add to Query Cart PDF Download

Technical Specification

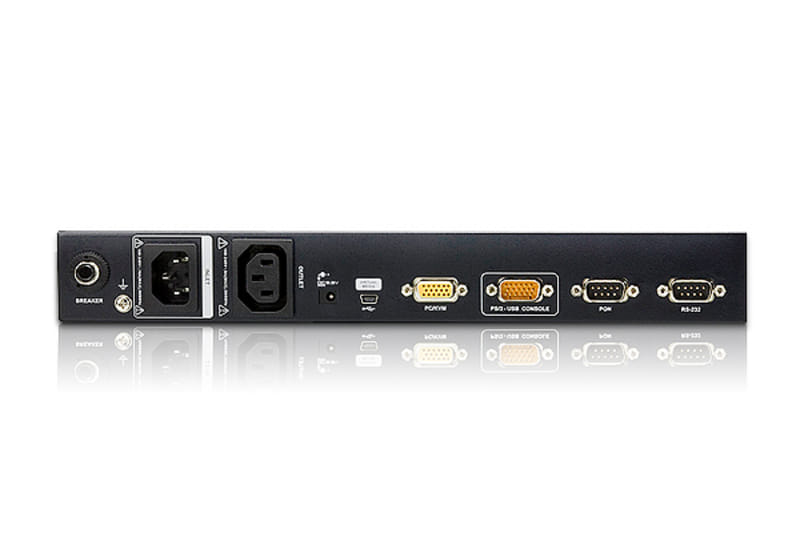

Connectors
Console Ports 1 x SPHD Male (Yellow)
KVM Ports 1 x SPHD Female (Yellow)
PON 1 x DB-9 Male
RS-232 1 x DB-9 Male
LAN Ports 1 x RJ-45 Female
Power Inlets 1 x IEC320 C14
Power Outlets 1 x IEC320 C13
Power 1 x DC Jack
Virtual Media 1 x USB Mini-B Female
Switches
Reset 1 x Semi-recessed pushbutton
LEDs
Power 1 (Orange)
Power Outlets 1 (Orange)
Link 1 (Green)
10/100 Mbps 1 (Orange/Green)
Emulation
Keyboard / Mouse USB; PS/2
Video 1600 x 1200 @ 60 Hz; DDC2B
Maximum Input Power Rating 100–240 V~ 50/60 Hz, 10A
Output 100–240 V~; 50/60 Hz; 9A
Power Consumption DC5.3V:6.77W:40BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.86 kg ( 1.89 lb )
Dimensions (L x W x H) 31.00 x 8.15 x 4.20 cm
(12.2 x 3.21 x 1.65 in.)
