Product Code : VE781010
Brand Category : Video Extenders
| Cable Length | 10M / 32.8ft |
| Cable Type | Hybrid type with optical fiber (OM3) and copper wire |
| Video Input | |
| Interfaces | 1 x HDMI 19-pin Type-A Male |
| Video Output | |
| Interfaces | 1 x HDMI 19-pin Type-A Male |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps per Channel) |
| Max. Pixel Clock | 600 MHz (Max.) |
| Max. Resolutions / Distance | Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M *Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 *Color Depth: 30 / 36 / 48 bit |
| Compliance | HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2 |
| Communication | |
| Signals | TMDS / HDCP 2.2 / EDID / CEC |
| Audio | |
| Input | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Output | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Conductor | |

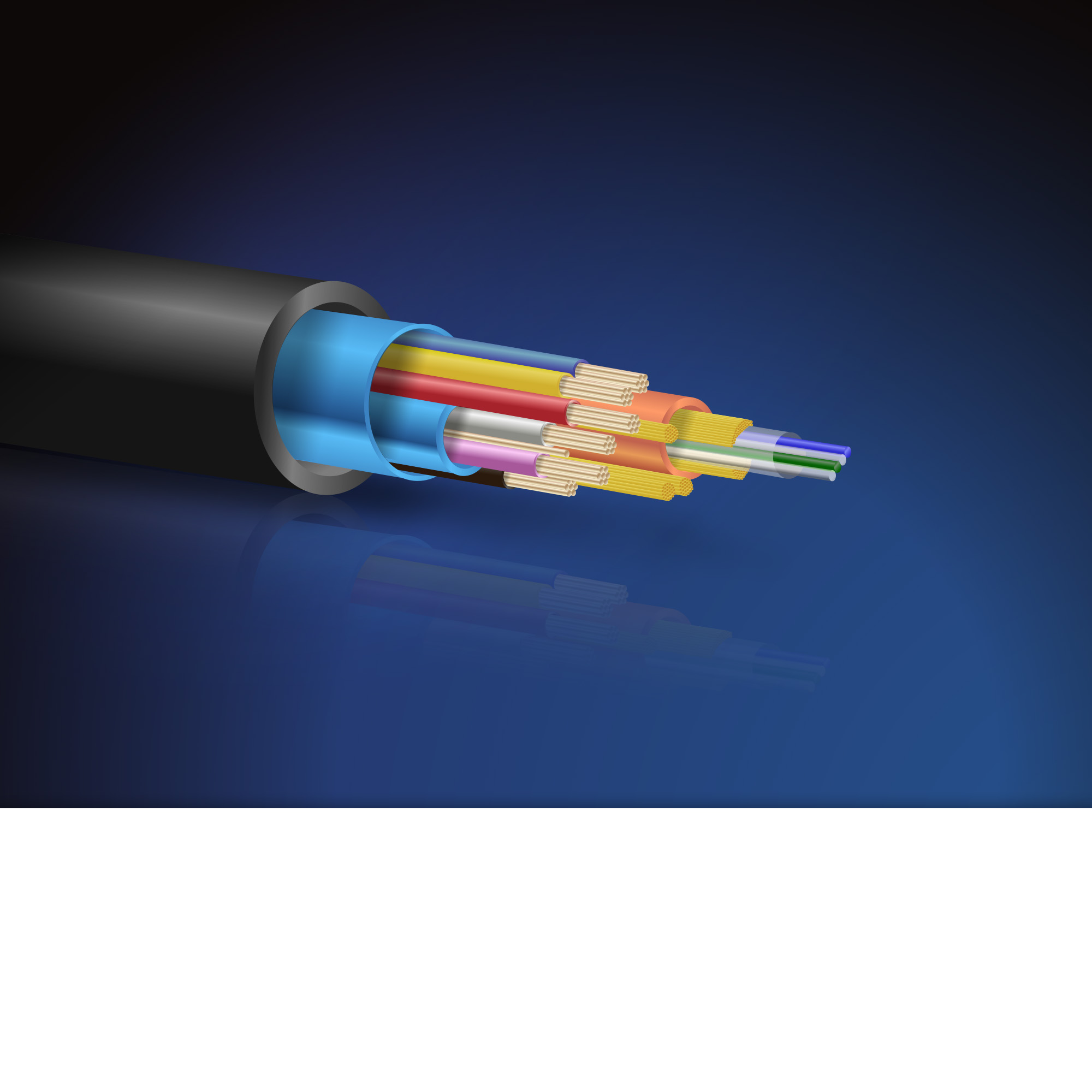

| Construction | 7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um) |
| Notification | Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE * NO external power required |
| Certifications | |
| Certifications | Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B |
| Power Consumption | DC5.0V:0.25W:0.05ABTU |
| Jacketed | |
| Material | PVC (85P) Color: Black |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32℉ to 122℉) |
| Storage Temperature | -20°C to 70°C (-4℉ to 158℉) |
| Humidity | 0 - 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Connector Case: Zinc Alloy |
| Weight | 0.35 kg ( 0.77 lb ) |
| Cable Outer Dimension | 4.5mm (± 0.2mm) |
| Carton Lot | 5 pcs |
