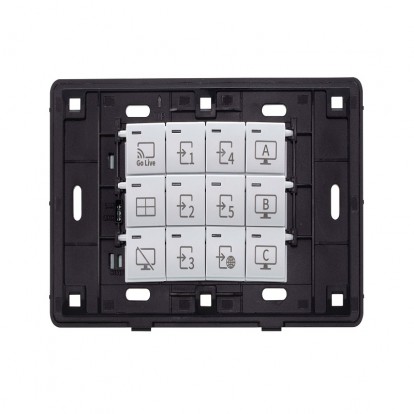

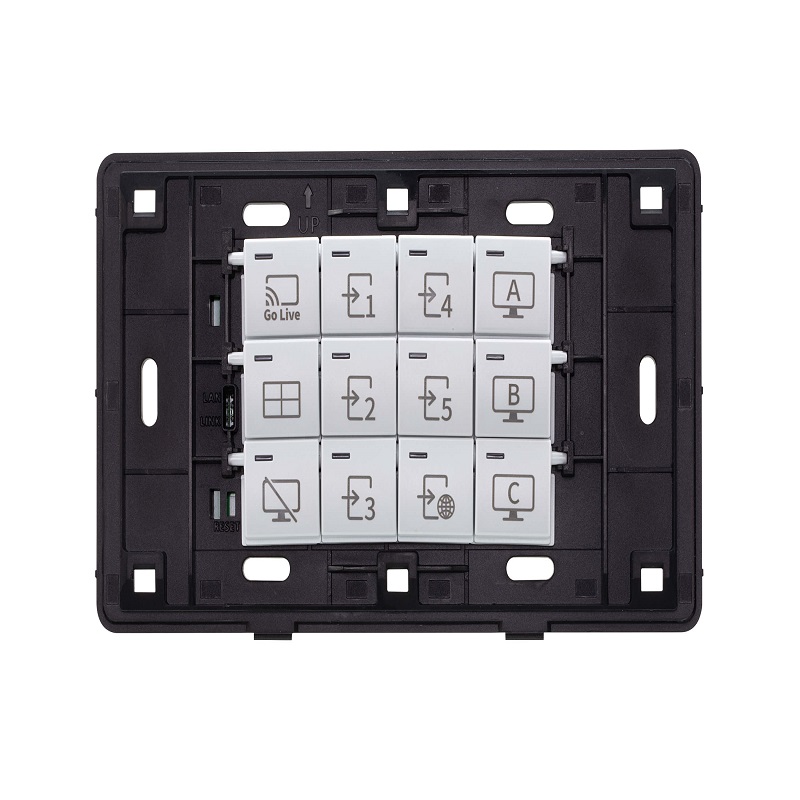

12-Key Network Remote Pad (EU, 2 Gang)

Product Code : VPK312

Brand Category : Presentation Switches

Description

12-key Network Remote Pad for ATEN Presentation Switches
Easy pairing with a Presentation Switch via the host Presentation Switch's web console
Effortless configuration via the intuitive web GUI
Fully customizable for the functions and layout of the keys
Dual-color button LEDs for clear indication and visibility
Power redundancy supported when both DC power and Power over Ethernet (PoE) are supplied
Convenient reset of system and network settings using the built-in reset button
Firmware upgradable
Engraved buttons for intuitive port indication and operation

Note: VPK312K1 provides 29 engraved buttons to support multiple function control with VP2730.

Technical Specification

Interfaces
Keypad Layout	12 engraved buttons
Ethernet	• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: DHCP, HTTP/ HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Reset Button	1 x Semi-recessed Pushbutton
Power Consumption	DC5V:0.8W:3BTU POE:1W:4BTU
Connectors
Power	2-pole terminal block connector
Environmental
Operating Temperature	0 – 40°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.20 kg ( 0.44 lb )
Dimensions (L x W x H)	8.32 x 14.76 x 4.80 cm (3.28 x 5.81 x 1.89 in.)
Faceplate Dimensions (L x W x H)	8.62 x 15.12 x 0.92 cm (3.39 x 5.95 x 0.36 in.)
Carton Lot	5 pcs
