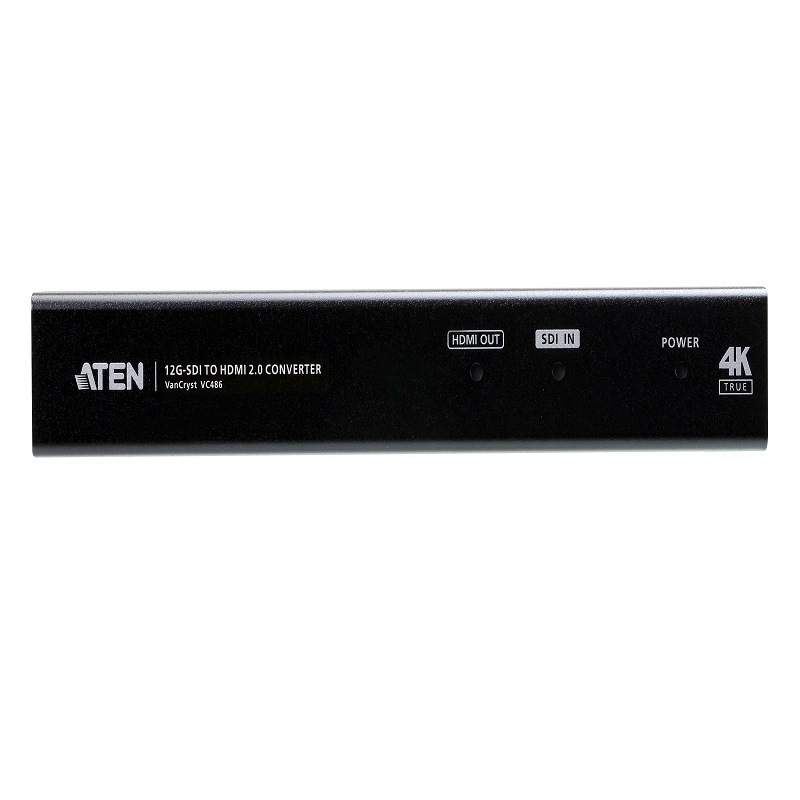

12G-SDI to HDMI Converter

Product Code : VC486

Brand Category : Video Converters

Description

Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time
SDI signal re-clocked for high signal quality
Supports SDI standard SMPTE-292/424/425-3/2081/2082
Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m (3G-SDI) and 150 m (HD-SDI)
Supported SDI formats:
• HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
• 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps)
• 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)
• 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)
Supports analog stereo audio output with RCA (R/L) connector
Automatic detection of input video signals
Analog Audio channel selection with a 8-step rotary switch
Locking power connector

Technical Specification

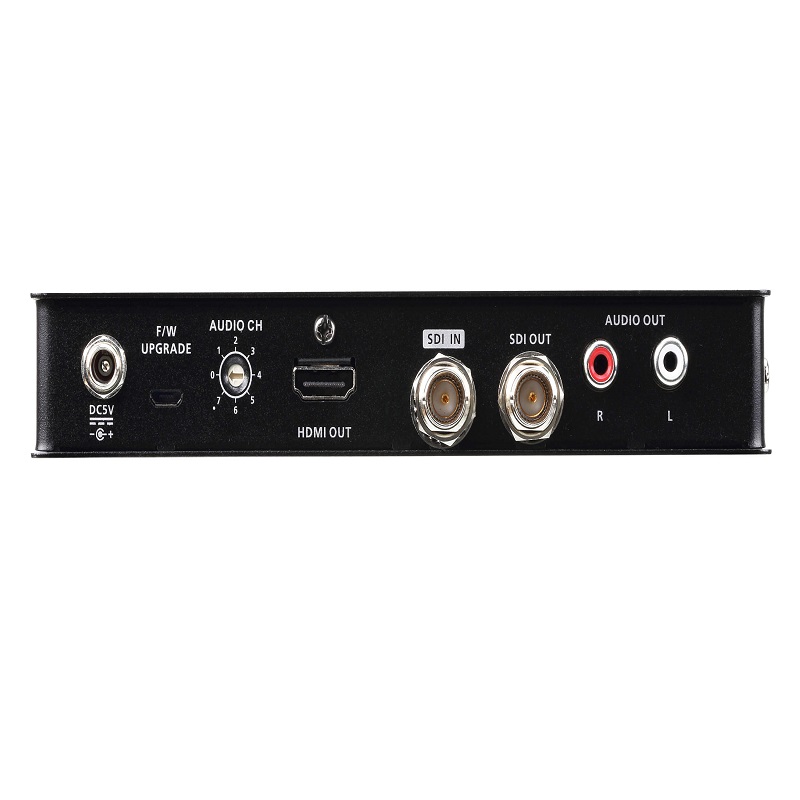

Switches
Audio EDID Selection	1 x rotary switch (8-steps)
Control
USB	1 x Micro USB (FW upgrade)
Video Input
Interfaces	1 x SDI (BNC connector, inter-locked socket)
Impedance	75 Ω
Video Output
Interfaces	1 x HDMI (Type-A) Female 1 x SDI (BNC connector, inter-locked socket)
Impedance	HDMI 100 Ω / SDI 75 Ω
Video
Max. Data Rate	12 Gbps
Supported Resolutions	720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 , 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 25PsF 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Max. Distance	[12G-SDI] up to 45m [6G-SDI] up to 60m [3G-SDI] up to 90m [HD-SDI] up to 150m HDMI up to 3m (3840 X 2160@60Hz)
Audio
Output	1 x HDMI (Type-A) Female 2 x RCA connector Female (R/L, analog audio)
Format	Compliance with HDMI 2.0 with 2 CH Audio
SDI Formats	HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps) 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps) 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12Gbps)
Connectors
Power	1 x DC 5V 3A, Lockable
Power Consumption	DC5V:5.69W:27BTU
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.65 kg ( 1.43 lb )
Dimensions (L x W x H)	18.20 x 12.96 x 2.87 cm (7.17 x 5.1 x 1.13 in.)
Carton Lot	5 pcs
