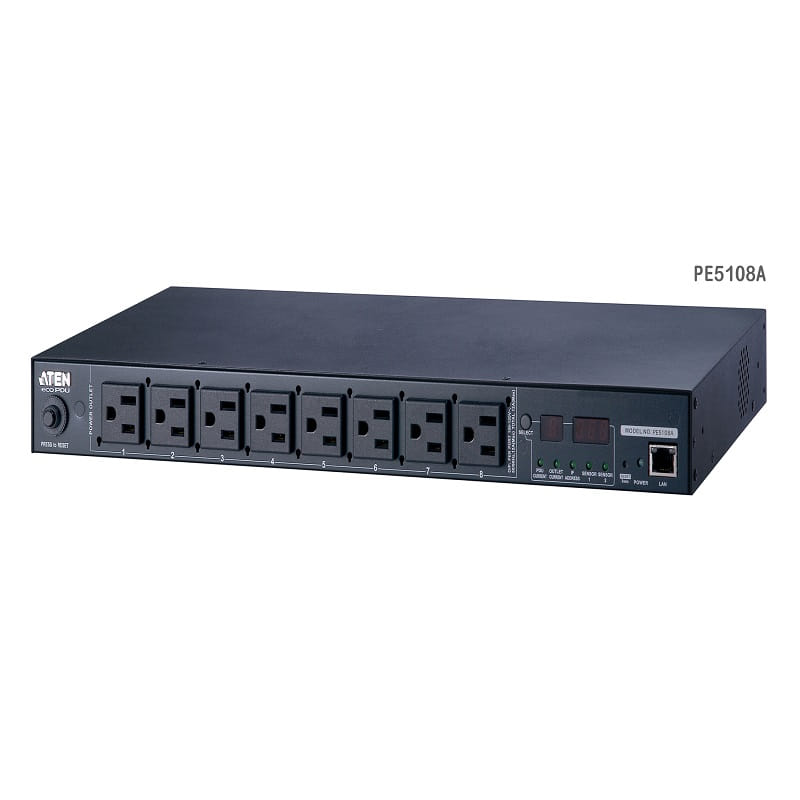

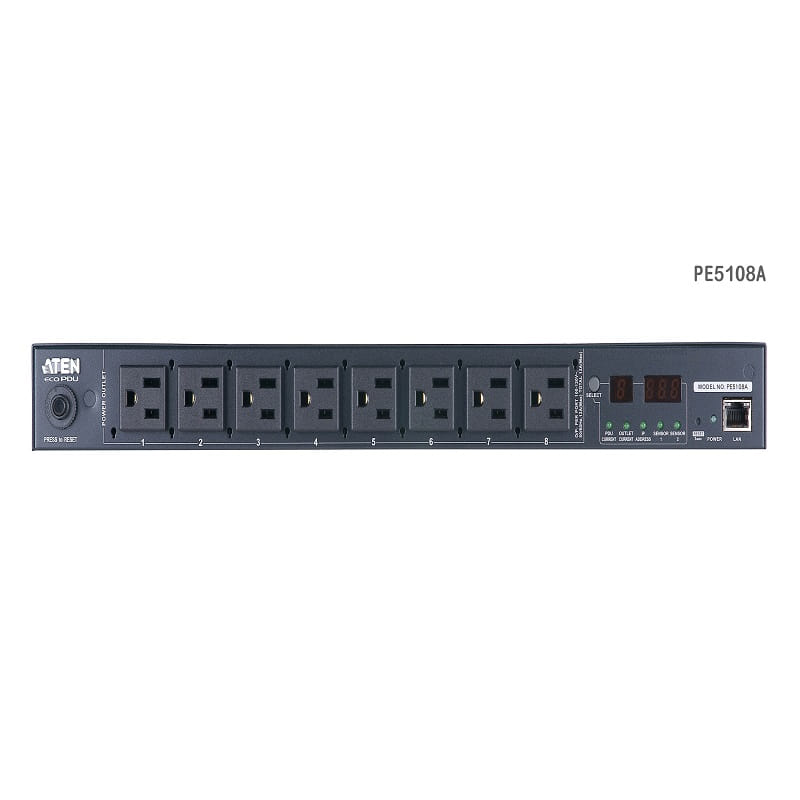

15A/10A 8-Outlet 1U Metered eco PDU

15A/10A 8-Outlet 1U Metered eco PDU

Product Code : PE5108

Brand Category : Rack PDU

Description

  • Connections
  • Support 10/100Mbit Ethernet Interface
  • Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
  • Support : eco DC, Browser (IE, Firefox, Chrome, Safari)
  • Metering
  • Bank level power metering and monitoring
  • Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting

Add to Query Cart PDF Download

Technical Specification

Function PE5108A PE5108B PE5108G
Electrical
Nominal Input Voltage 100 – 120 VAC 100 – 240 VAC 100 – 240 VAC
Maximum Input Current 15A Max; 12A(UL de-rated) 15A Max; 12A(UL de-rated) 10A Max
Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Input Connection NEMA 5-15P NEMA 6-15P IEC 60320 C14
Input Power 1800 VA(Max); 1440 VA(UL de-rated) 3120 VA(Max); 2496 VA(UL de-rated) 2300 VA(Max)
Outlet Type Total: 8 x NEMA 5-15R Total: 8 x IEC320 C13 Total: 8 x IEC320 C13
Nominal Output Voltage 100 – 120 VAC 100 – 240 VAC 100 – 240 VAC
Maximum Output Current (Outlet) NEMA 5-15R: 15A(Max); 12A(UL de-rated) C13 : 15A(Max); 12A(UL de-rated) C13 : 10A(Max)
Maximum Output Current (Bank) 15A(Max); 12A(UL de-rated) 15A(Max); 12A(UL de-rated) 10A(Max)
Maximum Output Current (Total) 15A(Max); 12A(UL de-rated) 15A(Max); 12A(UL de-rated) 10A(Max)
Breakers 1 x 15A Non-Fuse Breaker 1 x 15A Non-Fuse Breaker 1 x 15A Non-Fuse Breaker
Metering Bank level Current, Voltage, VA , PF and KWh Monitoring Bank level Current, Voltage, VA , PF and KWh Monitoring Bank level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switching None None None
Environment Sensor Ports 2 2 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		 Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		 Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 43.24 x 4.40 x 21.93 cm 43.24 x 4.40 x 21.93 cm 43.24 x 4.40 x 21.93 cm
Weight 2.77 kg 2.82 kg 2.82 kg
Power Cord Length 3 m 3 m 3 m
Environmental
Temperature (Operating / Storage) 0 – 50°C / -20 – 60°C 0 – 50°C / -20 – 60°C 0 – 50°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Compliance
EMC Verification FCC, Others by Request FCC, Others by Request CE, Others by Request
Safety Verification TUV-CB, cTUVus, UL, Others by Request TUV-CB, cTUVus, UL, Others by Request TUV-CB, CE-LVD, Others by Request
