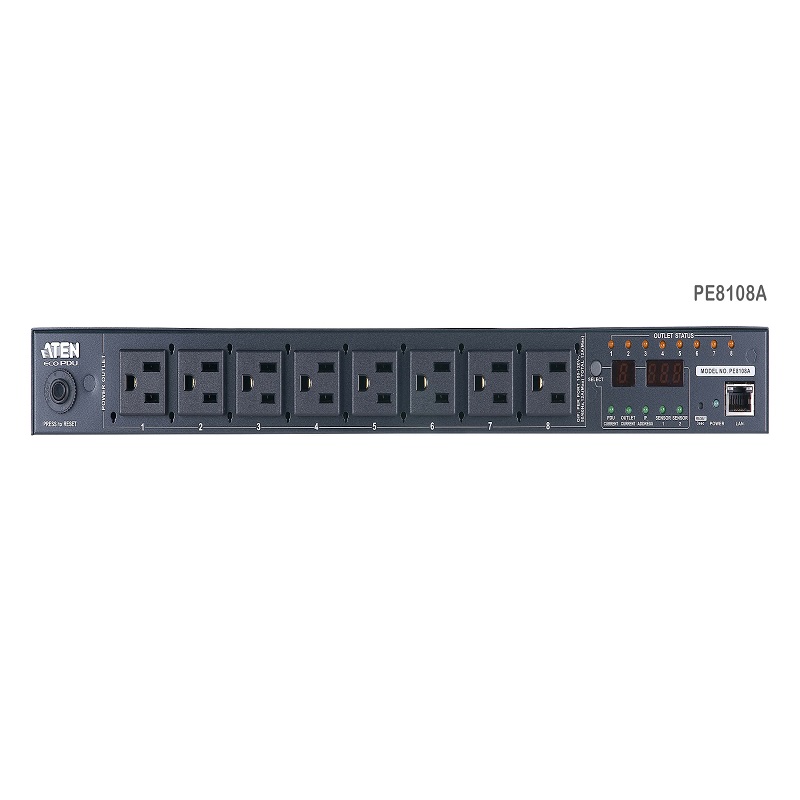

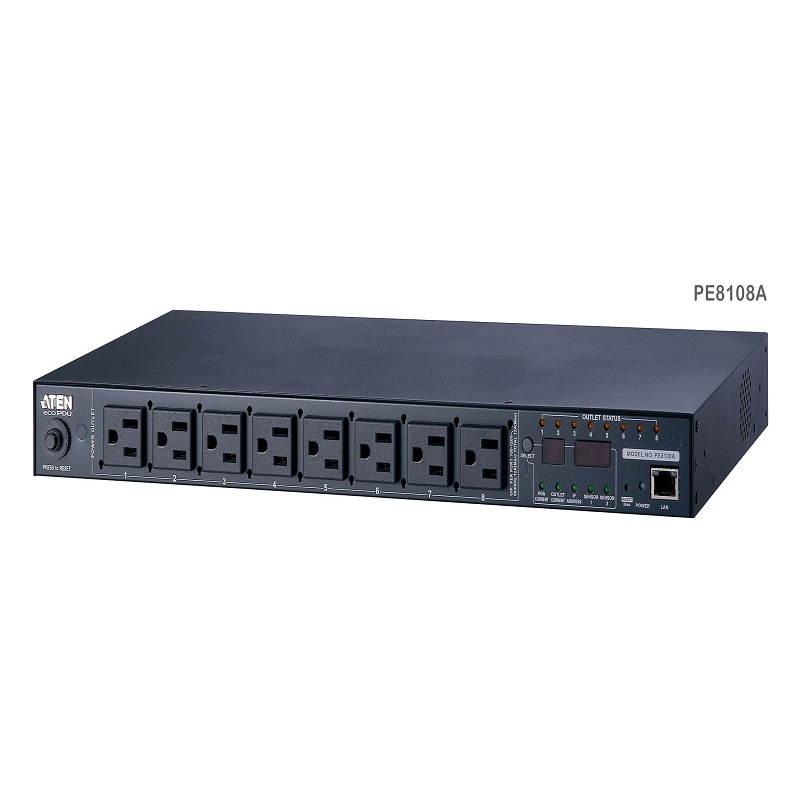

15A/10A 8-Outlet 1U Outlet-Metered & Switched eco PDU

15A/10A 8-Outlet 1U Outlet-Metered & Switched eco PDU

Product Code : PE8108

Brand Category : Rack PDU

Description

"
  • Power Distribution
  • Space saving 1U rack mount design with rear mounting
  • IEC or NEMA outlet models
  • 3 digit 7-segment front panel LED shows Current / IP Address
  • Remote users can monitor outlet status via web pages on their browsers
  • Safe shutdown support
  • Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker


    Remote Access
  • Remote power control via TCP/IP and a built in 10/100 Ethernet port
  • Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
  • eco PDU Power Management software – eco DC
  • Supports SNMP Manager V3


    Operation
  • Remote power outlet control (On, Off, Power Cycle) by individual outlets
  • Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
  • Easy setup and operation via a browser-based user interface
  • Multibrowser support (IE, Firefox, Chrome, Safari)
  • RTC support to keep the timer running during times of no power.
  • Supports up to 8 user and 1 administrator accounts


    Management
  • Power status measurement at the PDU or Outlet level
  • LED indicators for current and IP address at Outlet levels
  • Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level (PE8108 / PE8208)
  • Current and voltage threshold setting
  • Naming support for outlets
  • User outlet access assignment on an outlet-by-outlet basis.
  • Event logging and syslog support
  • Upgradeable firmware
  • Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian


    Security
  • Two-level password security
  • Strong security features include password protection and advanced encryption technologies – 128 bit SSL
  • Remote authentication support: RADIUS


    eco DC Energy Management Software
  • Automatic discovery of all PE devices within the same intranet
  • Remote real-time power measurement and monitoring
  • Remote real-time power outlet management*
  • Remote real-time environment sensor monitoring
  • Plotting/Monitoring of all PE devices
  • Exceed threshold alert through SMTP and Syslog
  • Power Analysis Report
"

Add to Query Cart PDF Download

Technical Specification

FunctionPE8108APE8108BPE8108G
Electrical
Nominal Input Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Input Current15A Max; 12A(UL de-rated)15A Max; 12A(UL de-rated)10A Max
Input Frequency50-60 Hz50-60 Hz50-60 Hz
Input ConnectionNEMA 5-15PNEMA 6-15PIEC 60320 C14
Input Power1800 VA(Max); 1440 VA(UL de-rated)3120 VA(Max); 2496 VA(UL de-rated)2300 VA(Max)
Outlet TypeTotal: 8 x NEMA 5-15RTotal: 8 x IEC320 C13Total: 8 x IEC320 C13
Nominal Output Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Output Current (Outlet)NEMA 5-15R: 15A(Max); 12A(UL de-rated)C13: 15A(Max); 12A(UL de-rated)C13: 10A(Max)
Maximum Output Current (Bank)15A(Max); 12A(UL de-rated)15A(Max); 12A(UL de-rated)10A(Max)
Maximum Output Current (Total)15A(Max); 12A(UL de-rated)15A(Max); 12A(UL de-rated)10A(Max)
Breakers1 x 15A Non-Fuse Breaker1 x 15A Non-Fuse Breaker1 x 15A Non-Fuse Breaker
MeteringOutlet level Current, Voltage, VA , PF and KWh MonitoringOutlet level Current, Voltage, VA , PF and KWh MonitoringOutlet level Current, Voltage, VA , PF and KWh Monitoring
Outlet SwitchingYesYesYes
Environment Sensor Ports222
Metering AccuracyVoltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)		43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)		43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)
Weight2.75 kg ( 6.06 lb )2.75 kg ( 6.06 lb )2.75 kg ( 6.06 lb )
Power Cord Length3 m3 m3 m
Environmental
Temperature (Operating / Storage)0 – 50°C / -20 – 60°C0 – 50°C / -20 – 60°C0 – 50°C / -20 – 60°C
Humidity (Operating & Storage)0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing
Compliance
EMC VerificationFCC, Others by RequestFCC, Others by RequestCE, Others by Request
Safety VerificationTUV-CB, cTUVus, UL, Others by RequestTUV-CB, cTUVus, UL, Others by RequestTUV-CB, CE-LVD, GOST, Others by Request
