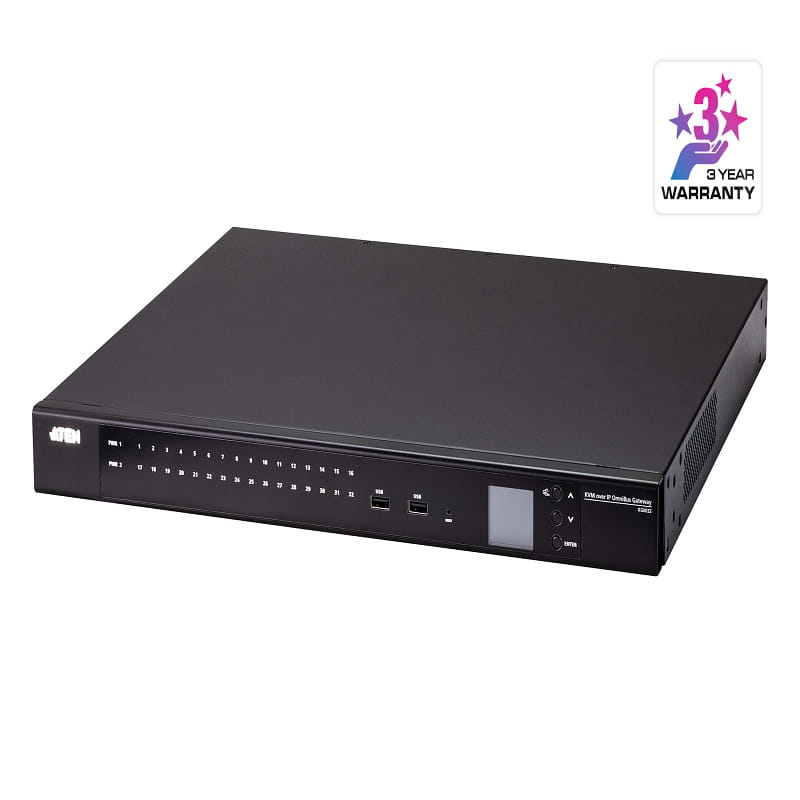

16-Port KVM over IP OmniBus Gateway

16-Port KVM over IP OmniBus Gateway

Product Code : KG0016

Brand Category : KVM over IP Switches


Description


  • Hardware
    • High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
    • All-digital KVM over IP optimum transmission – offers reliable transmission over long distances with noise immunity, signal quality preservation, and efficient compression and storage
    • Extends 1920 x 1200 @ 60 Hz resolutions up to 100m via Cat 5e/6 without signal interference and close-to-zero latency
    • Up to 16 independent connections for remote KVM over IP access
    • Dual 10G NICs for redundant LAN or two IP operation
    • LCD display – provides real-time connection status, notifications, and system alert message
    • LED indication of connection and hardware status
    • Multi-platform server environments: Windows, Mac, and Linux
    • All-around ventilation chassis design improves airflow efficiency – induces cold air suction on both sides at the front panel and dissipates heat via ventilation holes on the back panel
    • Dual power supply with power redundancy

  • Management
    • Simultaneously shares 16 independent connections to the attached servers
    • Out-of-Band access
    • Green IT Fan – auto-fan-speed adjustment corresponding to temperature
    • Event logging and Windows-based log server
    • Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
    • Event destination – event logs will be saved to Log server, Syslog server, and USB drive
    • Firmware upgradeable
    • Port share mode – allows multiple users to gain access to a server simultaneously
    • Supports IPv4, IPv6

  • Easy-to-Use Interface
    • The intuitive WinClient AP's supports of an Array View and a Control View – enables users to monitor all servers and control a specific server concurrently
    • Panel Array Mode™ Live+ – real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout
    • Browser-based, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
    • Multiplatform client support (Windows, Mac OS X, and Linux) via WebClient
    • Multi-browser support – Edge, Chrome, Firefox, Safari, and Opera
    • Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
    • Full-screen or sizable and scalable virtual remote desktop
    • Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously

  • Security
    • High-grade security – supports an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
    • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
    • Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure user logins in from browser
    • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for video, and virtual media data encryption
    • Support for IP / MAC filter
    • Configurable user and group permissions for server access and control
    • Automated CSR creation utility and third party CA certificate authentication

  • Virtual Media
    • Virtual media transmission rate is approximately 10 times faster than traditional KVM, ideally for file transfers, OS patching, software installation, and diagnostic testing
    • Works with USB-enabled servers in operating system and at the BIOS level
    • Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives, and ISO images

  • Virtual Remote Desktop
    • Video quality such as monochrome color depth and bandwidth’s increment / decrement can be adjusted for optimizing data transfer speed
    • Mouse DynaSync™ – automatically synchronizes remote mouse movements
    • On-screen keyboard with multi-language support
    • BIOS-level access for troubleshooting

Add to Query Cart PDF Download


Technical Specification


Console Connections
Local N/A
Remote 16
Computer Connections
Direct 16
Port Selection GUI

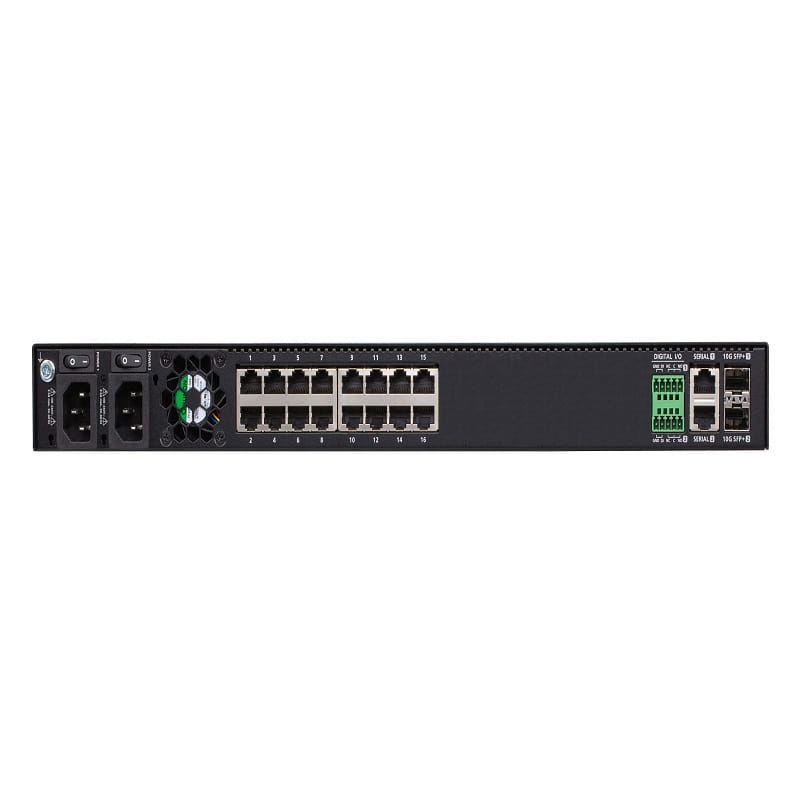

Connectors
USB Port 2 x USB Type-A Female (Reserved for futuer expansion)
KVM Ports 16 x RJ-45 Female
SFP+ Uplink Ports 2 x SFP+ Slots
Serial 2 x RJ-45 Female (Reserved for future expansion)
Power 2 x IEC 60320/C14
Input 2 x 2-pin DI (Reserved for future expansion)
Relay 2 x 3-pin Relay (Reserved for future expansion)
Switches
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
KVM Ports 16 (Green)
Power 2 (Green)
Panel Spec
Size 1.6"
Resolution 128x64
Pushbuttons
Select 3 x Pushbuttons (Up, Down, Enter)
Emulation
Keyboard / Mouse USB
Video
Remote 1920 x 1200 @ 60Hz
Maximum Input Power Rating 100–240V~, 2.5A max, 50-60Hz
Power Consumption AC110V:34.1W:117BTU
AC220V:34.6W:118BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 10 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 6.43 kg ( 14.16 lb )
Dimensions (L x W x H) 43.36 x 37.90 x 4.40 cm
(17.07 x 14.92 x 1.73 in.)
