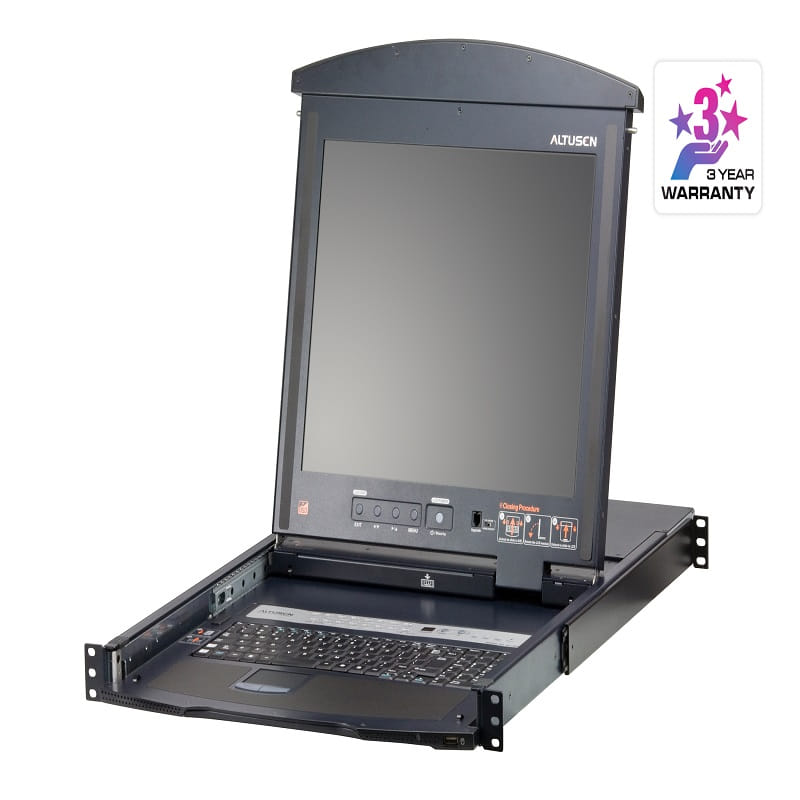

16-Port Multi-Interface Cat 5 Dual Rail LCD KVM Switch

16-Port Multi-Interface Cat 5 Dual Rail LCD KVM Switch

Product Code : KL1516A

Brand Category : LCD KVM Switches / Consoles


Description


"

  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17"" or 19"" LED-backlit LCD monitor in a Dual Rail housing
  • A single console controls up to 16 computers
  • Space-Saving RJ-45 connectors and Cat 5e/6 cabling
  • KVM adapter cables* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • OSD tree structure makes finding and managing computers easy
  • Conveniently located station and port selectors with LED displays to quickly switch to target computers
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space

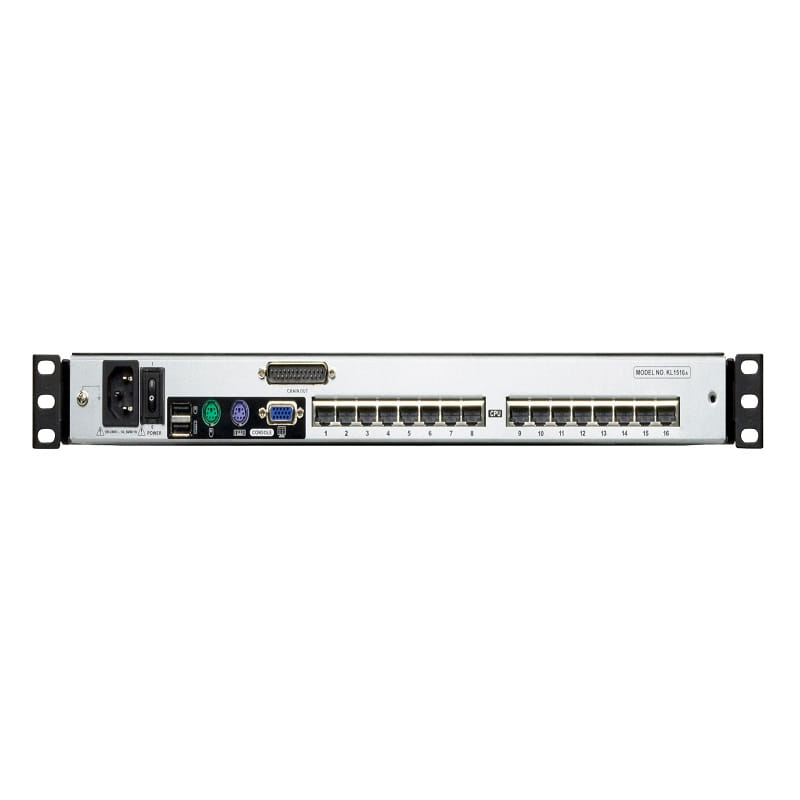

  • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
  • Dual Rail - LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
  • Daisy chain up to 31 additional KVM switches to control up to 512 computers
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Multiplatform support: PC, Mac, Sun and Serial
  • Superior Video Quality- Supports the video resolutions up to 1280x1024@75 Hz for up to 50 meters
  • Configure port access rights for users on a port - by - port basis
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
  • LCD power button helps save energy and prolong displays' life
  • Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable
  • Optional rack mount kits available including easy installation options
  • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese.

    More information about ""Easy Rack Mounting""...

"


Add to Query Cart PDF Download


Technical Specification


"

"
