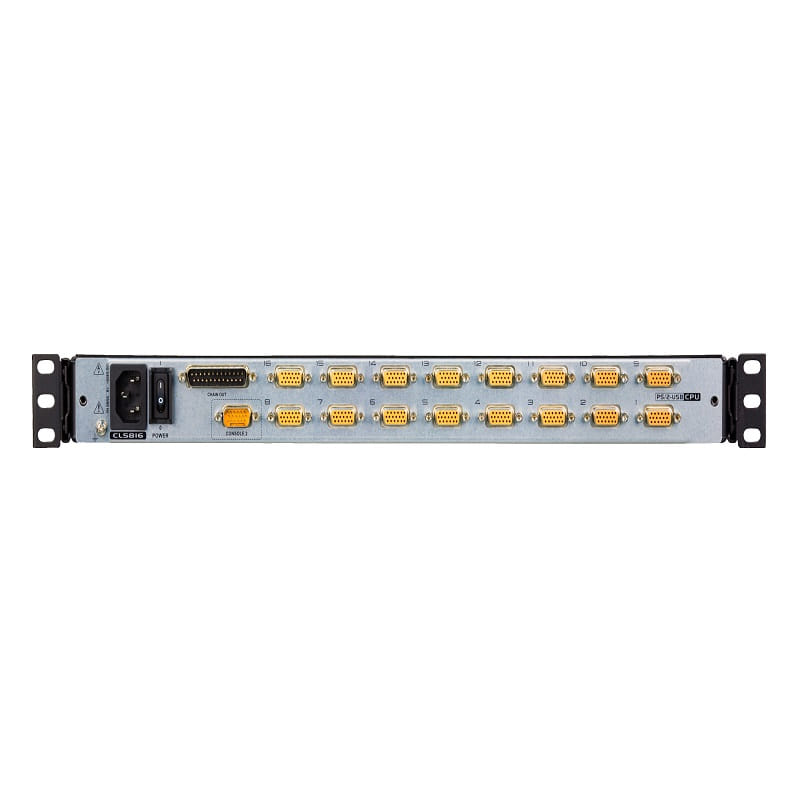

16-Port PS/2-USB VGA Dual Rail LCD KVM Switch

"

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 19"" LED-backlit LCD monitor in a Dual Rail housing
• Space saving technology - up to two consoles (one bus) control up to 16 computers
• Daisy-chain up to 31 additional units*– control up to 512 computers from two consoles (one bus)
• Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
• Supports USB peripherals for computers connected to the local station
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console Lock - enables the console drawer to remain securely locked away in position when not in use
• Multiplatform support - Windows, Linux, Mac, and Sun
• Supports multimedia USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
  *With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A
• Supports external USB mouse
• Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
• No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
• Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
• Port names automatically reconfigured when station sequence is changed
• Two level password security - only authorized users can view and control computers
• LCD power button helps save energy and prolong display's life
• Supports one administrator and four user accounts with separate profiles
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable - add or remove computers without having to power down the switch
• Beeper on/off via hotkey and OSD
• Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
• Optional rack mount kits available including easy installation options
• Keyboard Language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
