16-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch

16-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch

Product Code : CL3116

Brand Category : LCD KVM Switches / Consoles

Description

"

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

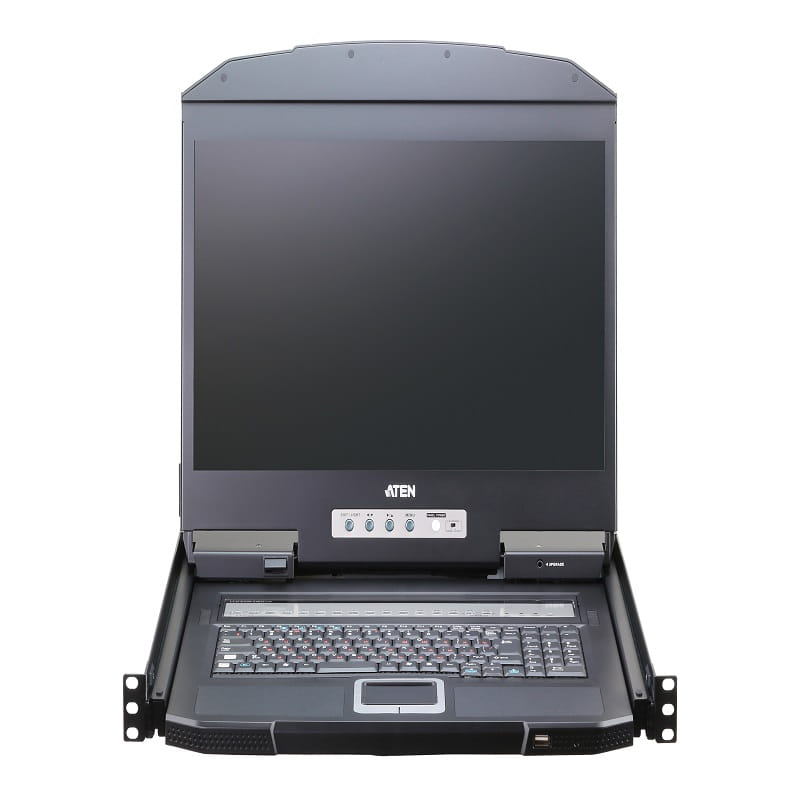

    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use




<!-- Features List-2 -->

  • Reliability and Operational Versatility
    • Superior video quality - up to 1366 x 768 @60Hz; DDC2B
    • Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
    • Dual Interface – supports computers with PS/2 or USB keyboards and mice
    • Auto PS/2 and USB interface detection
    • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
    • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
    • Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
    • Two level password security – only authorized users can view and control computers
    • Auto Scan mode – enables continuous monitoring of user-selected computers
    • Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
    • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse




<!-- Features List-3 -->

  • Installation Flexibility

"

Add to Query Cart PDF Download

Technical Specification

Function CL3116NX
Computer Connections
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton

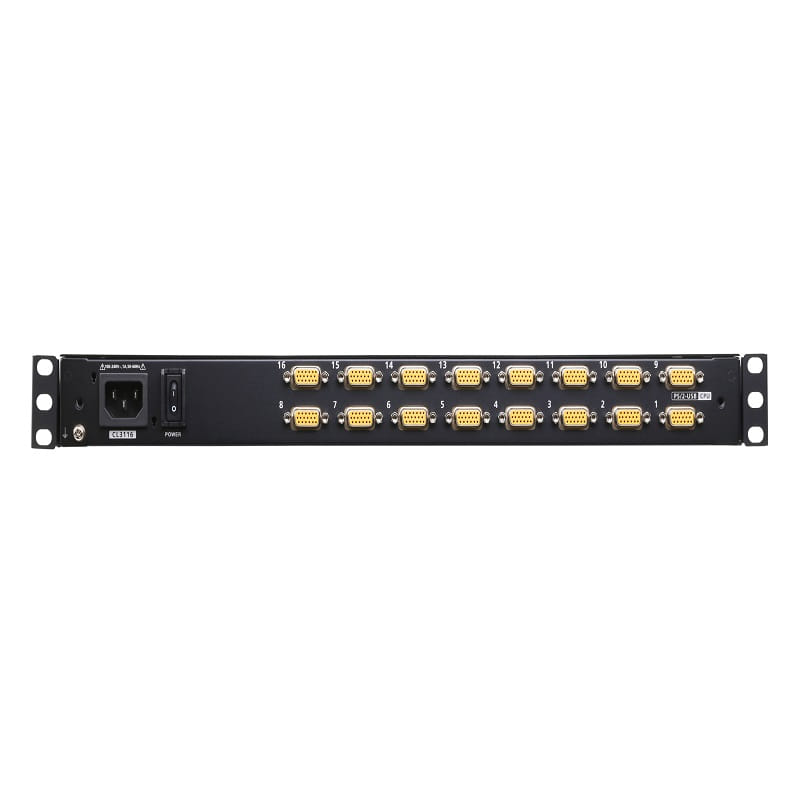

Connectors
KVM Ports 16 x SPHD Female (Yellow)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14
External Mouse Port 1 x USB Type A Female (Front)
Switches
Port Selection 16 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Online 16 (Orange)
Selected 16 (Green)
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1366 x 768 @ 60 Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.3 mm x 0.3 mm
Support Color 16.77M colors
Contrast Ratio 1000 : 1
Luminance 450 cd/m⊃2;
Video
Input Video Resolution up to 1920 × 1200 @ 60 Hz;
1366 × 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.60 kg ( 23.35 lb )
Dimensions (L x W x H) 48.06 x 63.10 x 4.28 cm
(18.92 x 24.84 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)
Note Body Dimensions exclude I/O ports, handles, and mounting brackets.
