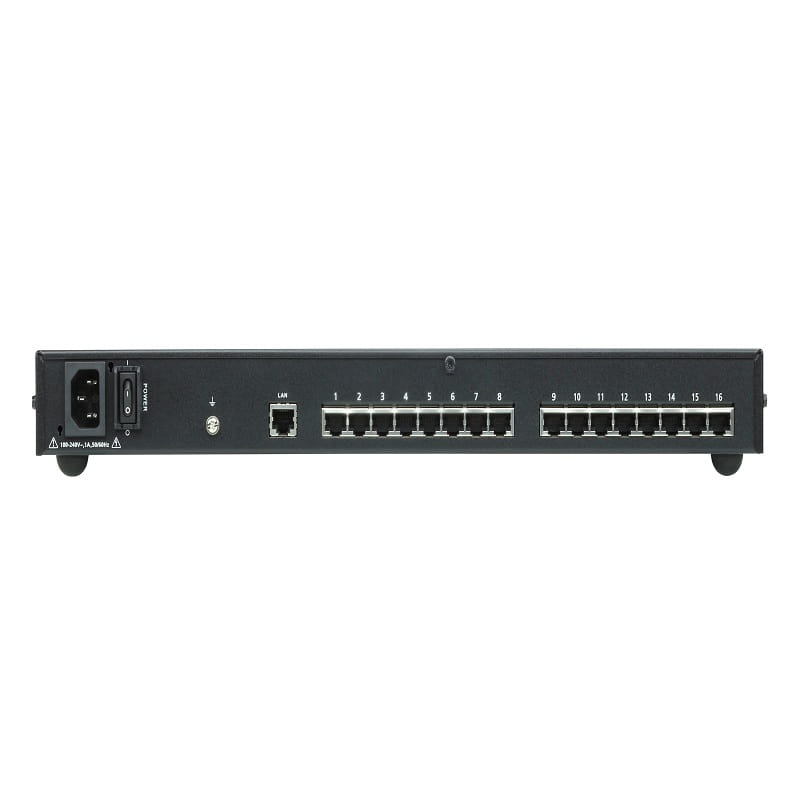

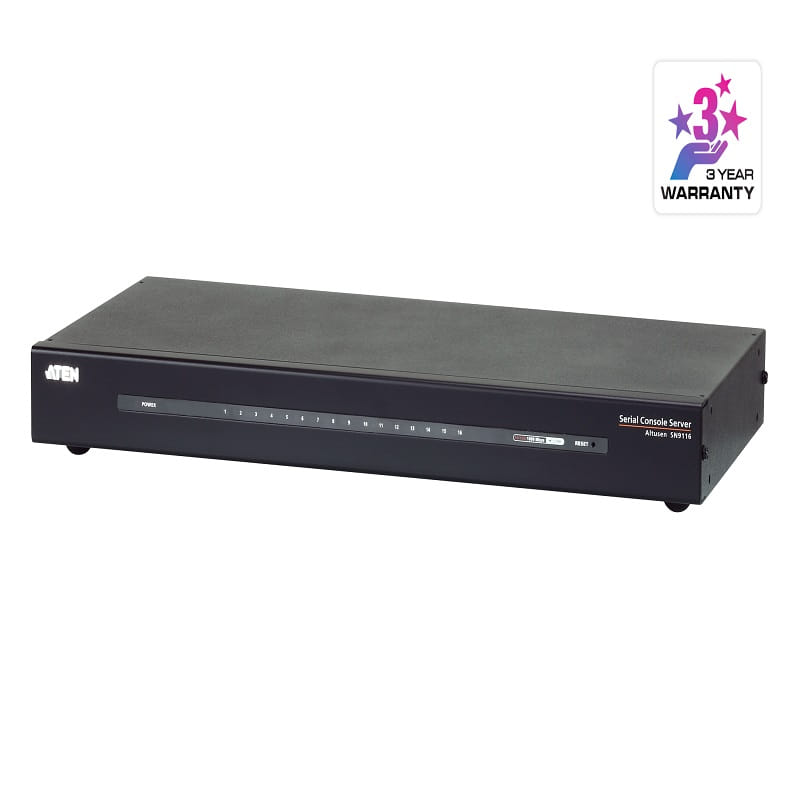

16-Port Serial Console Server

"

• System Accessibility and Availability
• Secure in-band and out-of-band remote serial console access
• In-band Ethernet access of serial devices
• Browser access with an intuitive GUI
• Terminal-based access with a menu-driven UI
• Out-of-band access via dial-up modem
• Modem dial-in/dial-back/dial-out

• Serial Console Management
• Convenient and simple serial device access via browser or Telnet/SSH client
• Port access via Telnet/SSH client and third-party clients such as PuTTY
• Direct port access from Telnet client – bypasses SN login
• Convenient port access via the applet serial viewer from SN Web GUI
• Selectable Telnet or SSH serial viewer
• Selectable ActiveX or Java serial viewer
• Comprehensive viewer function – Copy/paste, logging, data import, Macro, broadcast and Message Board
• Sun Solaris ready – Sun “break-safe”
• Alert Strings
• Command filter – administrators can define what commands cannot be executed by users
• Data buffering
• Multiple users can simultaneously access to the same port – up to16 connections per port
• Selectable mode for multiple simultaneous access – Exclusive/Occupy/Share mode
• Integrated with Power Over the NET™ product for port and power outlet association

• Security
• SSH and SSL (TLS v1.0 / TLS v1.1 / TLS v1.2) support
• Secure login from browser with TLS 1.2 data encryption and RSA 2048-bit certificates
• Configurable user permissions for port access
• Configurable group permission for port access
• Local and remote authentication and logging
• Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
• IP filtering and MAC filtering

• System Management
• System configuration via web browser, Telnet/SSH client and local console
• System log and event logging
• Comprehensive logging and event notification
• ATEN Log server and Syslog server
• SNMP agent
• Event notification – via SMTP email, SNMP Trap and SMS (to mobile devices)
• Backup/restore system configuration
• Firmware upgradeable
• Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera and Mozilla
• Customizable global time zone
• NTP for time server synchronization
• DHCP for dynamic IP address assignment
• IPv6 support
• Integrates with CC2000 for centralized data center management

• Serial Device Management
• Versatile serial operating modes – support Real COM, TCP Server, TCP Client, UDP, Serial Tunnel and Virtual Modem
• 128-bit/256-bit SSL encryption (TLS v1.0 / TLS v1.1 / TLS v1.2) for Real COM, TCP Server, TCP Client, Serial Tunnel and Virtual Modem
• Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
• Real TTY driver for Linux
• Fixed TTY driver for UNIX

• Language
• Web-based GUI multi-language – available for English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

"
