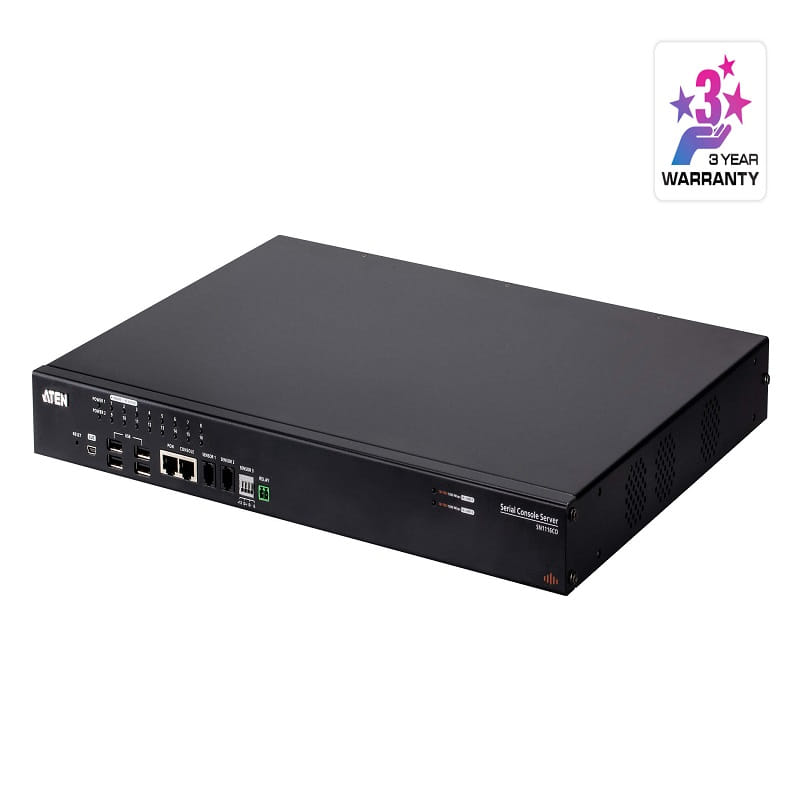

16-Port Serial Console Server with Dual Power / SFP

"

• System Accessibility and Availability
  • Secure in-band, out-of-band remote serial console and USB console² access
  • Browser access with an intuitive GUI
  • Terminal-based access with a menu-driven UI or command-line interface
  • Modem dial-in / dial-back / dial-out access
  • Front USB ports for storage, USB console¹, and UC232B connection²
  • Laptop USB Console (LUC) port for local console access via laptop²
  • Dual Ethernet ports allow fail control or dual IP address access²
  • Dual power supply²

<!-- Features List-2 -->

• Serial Console Management
  • Support sensor ports for environmental monitoring³
  • Relay port supports cabinet door access control
  • Auto-sensing DTE / DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
  • Online / Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
  • Response Check – checks the system status of the connected serial devices, and sents a notification if the check fails (e.g.system crash)
  • Convenient and simple serial device access via selectable Telnet / SSH and third-party clients such as PuTTY
  • Easy port access via selectable ActiveX, Java serial viewer or WebClient
  • Comprehensive viewer functions – copy / paste, logging, data import, macros, broadcasting and message board
  • Sun Solaris ready – Sun ""break-safe""
  • Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and / or an email
  • Command filter – administrators can restrict users to execute only pre-defined commands
  • Multiple users can simultaneously access the same port – up to 16 connections per port
  • Modes for simultaneous access – Exclusive / Occupy / Share mode

<!-- Features List-3-->

• Security
  • Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
  • Configurable user permissions for port access and control
  • Local and remote authentication and login
  • Third-party authentication via RADIUS, TACACS+, LDAP / AD and Kerberos
  • IP and MAC address filter for enhanced security protection
  • High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
  • Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control

<!-- Features List-4 -->

• System Management
  • System configuration via web browser, Telnet / SSH client and local console
  • System log and event login
  • Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive²
  • SNMP agent v1 / v2 / v3
  • Event notification – supports notification of SMTP email and SNMP Trap
  • Backup / Restore system configuration and upgradeable firmware
  • Multi-browser support – Internet Explorer, Chrome, Firefox
  • NTP for time server synchronization
  • IPv4 / IPv6 support
  • LLDP support
  • CLI (command-line interface) support
  • Integrates into CC2000 software for centralized data center management
  • Integrates into CCVSR software for user session recording

<!-- Features List-5 -->

• Virtual Media
  • Serial Device Management
  • Serial operation modes – Console Management, Console Management Direct, Real COM Port, TCP Server / Client, UDP Server / Client, and Virtual Modem
  • Real COM driver for Windows 2000 or higher and Windows Server 2003 / 2008
  • Real TTY driver for Linux
  • Fixed TTY driver for UNIX⁴
  • Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps

<!-- Features List-6 -->

• Language
  • Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

    Note:
    1. Compatible models: Cisco Catalyst 2960-C series
    2. SN11xxCO / SN11xxCOD only
    3. This is achieved using ATEN sensors
    4. Fixed TTY Driver supports:
    – OpenServer (Sco Unix)
    – UnixWare 7, SVR 5
    – UnixWare 2.1, SVR 4.2
    – QNX 4.25, QNX 6
    – FreeBSD
    – Solaris 10
    – AIX 5.x
    – HP-UX 11i

"
