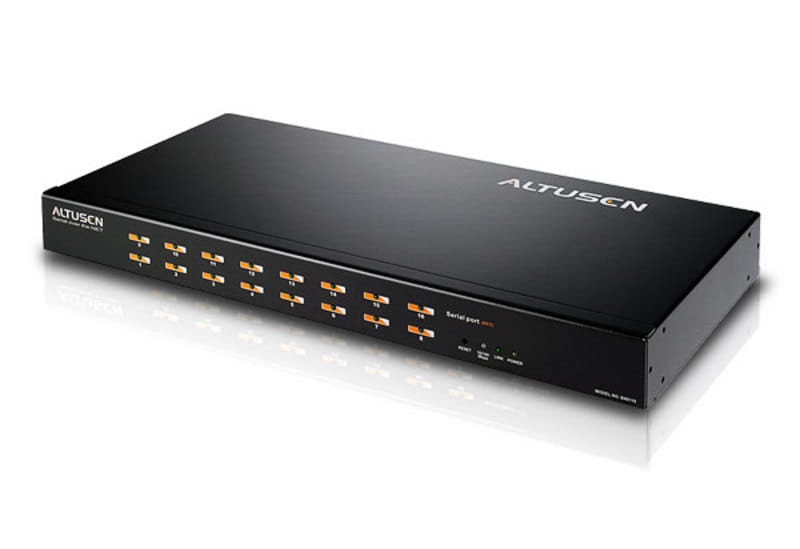

16-Port Serial Console Servers

"

• System Accessibility and Availability
• Secure in-band and out-of-band network access to serial consoles
• In-band access of Ethernet
• Browser access with an intuitive GUI
• Terminal-based access with a menu-driven UI
• Out-of-band access of dial-up modem
• Serial Console Management
• Convenient and simple access via browser or Telnet/SSH client
• Port access via Telnet/SSH client and third-party client such as PuTTY
• Direct port access from Telnet client – bypassing login to SN
• Convenient port access via the applet serial viewer from SN Web GUI
• Selectable Telnet or SSH for the serial viewer
• Sun Solaris ready – Sun “break-safe”
• Alert String
• Multiple users simultaneously access to the same port – up to 16 connections per port.
• SN0116 allows only one user to have full access to one port, and the other concurrent users may view only to the same port.
• Integrated with Power Over the NET product for port and power outlet association
• Security
• SSH and SSL support
• Private certificate support – SN0116support private certificate importing Configurable user permissions for port access and control
• Local and remote authentication and logging
• Third-party authentication – SN0116 support RADIUS and indirectly support AD through CC2000
• System Management
• System confi guration via Web browser of HTTP/HTTPS, Telnet/SSH client and local console
• System log and event logging
• Comprehensive logging and event notifi cation
• SNMP agent
• Event notification – SN0116 support notification of SMTP email and SNMP Trap
• Firmware upgradeable
• Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape
• Customizable global time zone
• NTP for time server synchronization
• DHCP for dynamic IP address assignment
• Integrated with CC2000 for data center centralized management
• Serial Device Management
• Versatile serial operating modes – SN0116 support Real COM and TCP Server
• Multiple simultaneous connections to the same port – up to 16 connections per port
• Real COM driver for Windows 2000/XP/Vista/7 and Windows Server 2003/2008
• Real TTY driver for Linux
• Fixed TTY driver for UNIX

  Information about Interface Adapters of SN0116 (Not included)

"
