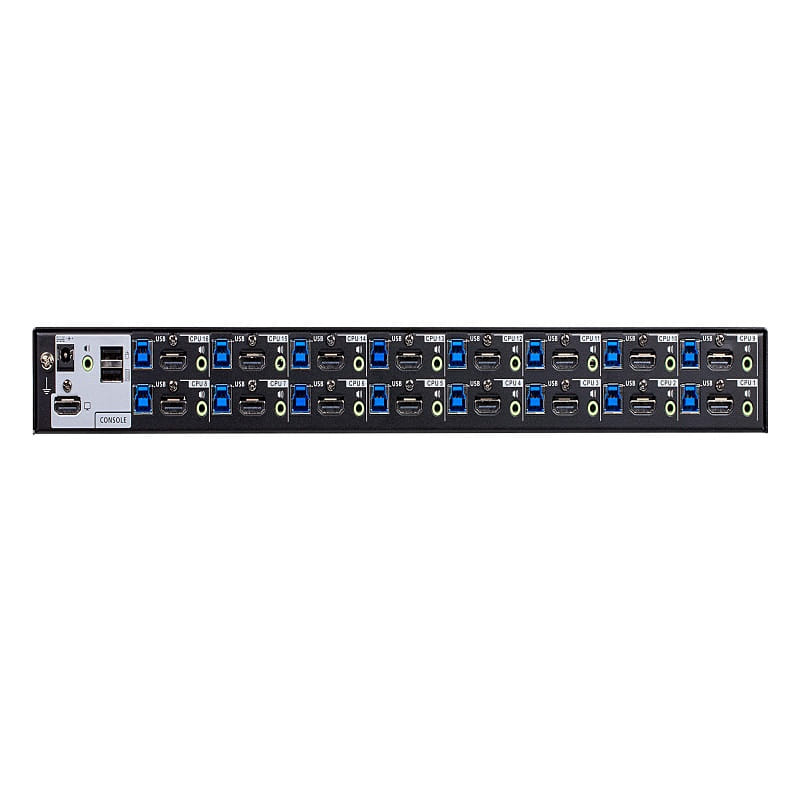

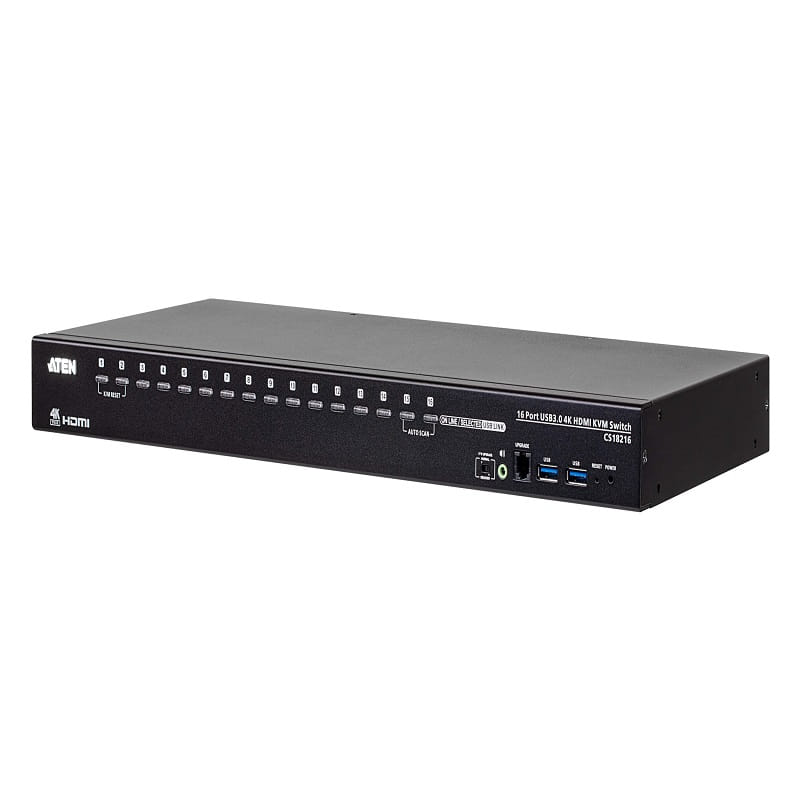

16-Port USB 3.0 4K HDMI KVM Switch

"

• One USB console controls up to 16 HDMI interface computers and two additional USB 3.1 Gen 1 peripheral devices
• Cascadable to two levels – controls up to 256 computers¹
• Multi-Display feature – stacks up to eight CS18216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
• Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
• Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
• Supports HD audio²
• Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
• Independent switching of KVM and USB peripheral focus³
• Two-level (administrator / user) password authorization for enhanced security protection
• Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
• Auto Scan Mode for monitoring all computers
• Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
• Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
• Mac / Sun keyboard support and emulation⁴
• Supports hot-plugging
• HDMI compliant; HDCP 2.2 compliant
• Multiplatform support – Windows, Linux, Mac, and Sun
• Firmware upgradable
• Supports multimedia, wireless keyboards and mouse

  Note:
  1. CS18216 cascades to CS18216 only.
  2. HD audio through HDMI channel cannot be switched independently.
  3. Independent switching is only supported under mouse emulation mode.
  4. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.

"
