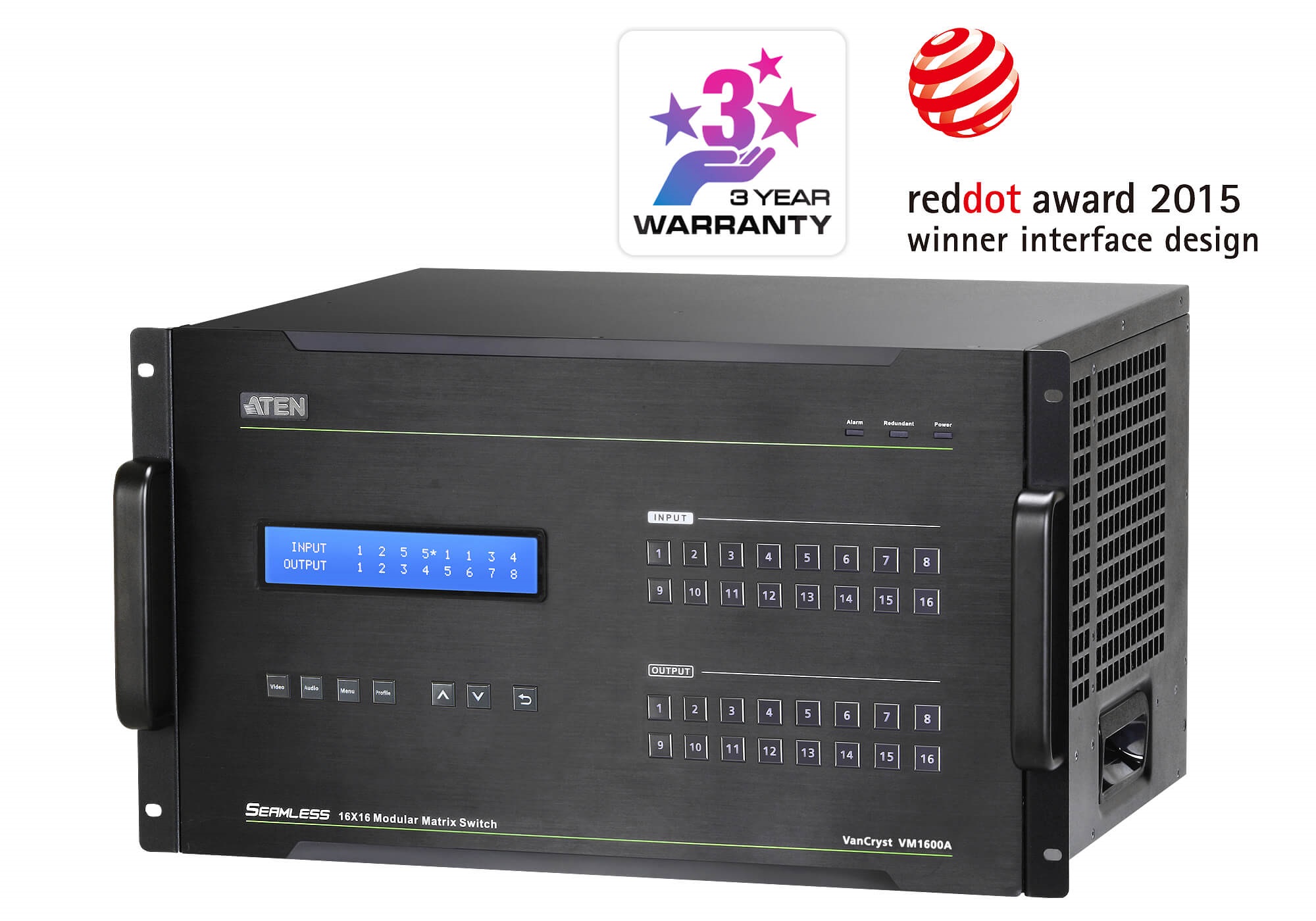

16 x 16 Modular Matrix Switch

16 x 16 Modular Matrix Switch

Product Code : VM1600A

Brand Category : Video Matrix Switches


Description


  • Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
  • Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
  • Scaler –features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*
  • Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Video wall –allows you to create custom video wall layouts via intuitive web GUI*
  • Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC
  • EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
  • Audio-enabled –HDMI audio can be extracted and stereo audio can be embedded*
  • Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI
  • Supports redundant power module for higher reliability
  • Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
  • Enables power supply via HDBaseT with installation of I/O boards and power injectors (VE44PB recommended), eliminating the need for separately installing power infrastructures to save overall cost
  • Optional redundant power supply –ensures reliability for mission-critical applications
  • Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
  • HDCP 2.2 Compatible*
  • HDMI: 3D, Deep Color, 4K*
  • Consumer Electronics Control (CEC) supported*
  • Rack mountable (6U design)
    Note:
    1. The availability of the features with “*”depends on which I/O board is inserted.
    2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
    3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Add to Query Cart PDF Download


Technical Specification


Board Output4 x Slot
Board Input4 x Slot
Video Input
InterfacesDepends on which I/O board is inserted
Max. Data Rate15.2 Gbps (3.8Gbps per Lane)
Audio
InputDepends on which Input board is inserted
OutputDepends on which Output board is inserted
Control
RS-232Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422Connector: 1 x Captive Screw Connector, 5 Pole
EthernetConnector: 1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power1 x 3-Prong AC Socket
Power
Maximum Input Power Rating100-240 VAC; 50/60Hz; 3/6 A
Power ConsumptionAC110V:460W:166BTU
AC220V:460W:156BTU
FanAirflow: 55.2 cfm
Operating Voltage: 10.2 - 12VDC
Operating Temp: -10 - 60°C
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight15.11 kg ( 33.28 lb )
Dimensions (L x W x H)48.20 x 46.66 x 26.59 cm
(18.98 x 18.37 x 10.47 in.)
Rack Height (U Spaces)6U
Carton Lot1 pc
