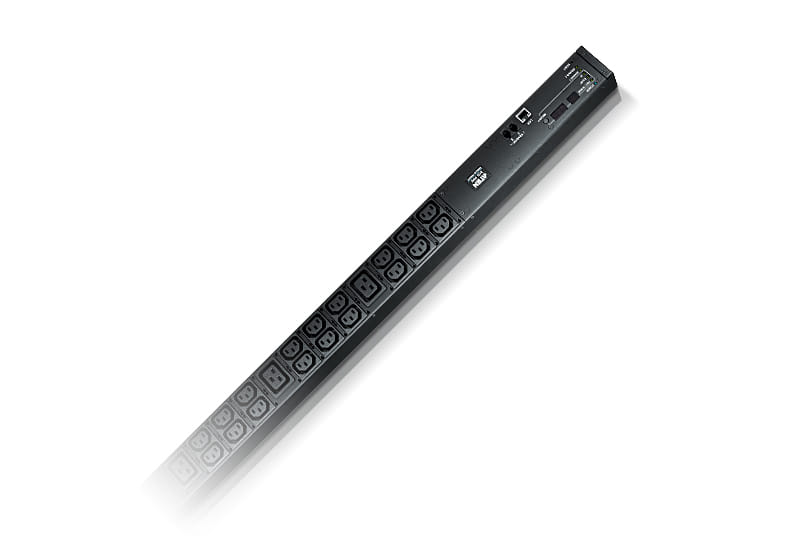

16A 21-Outlet Metered Thin Form Factor eco PDU

16A 21-Outlet Metered Thin Form Factor eco PDU

Product Code : PE5221T

Brand Category : Rack PDU


Description


  • Thin form factor design with 56 mm width
  • Built-in 10/100 Mbps Ethernet port
  • Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • 2-level account and password security
  • IP/MAC filters, SSL 128-bit data encryption and RADIUS for remote authentication
  • Supports eco DC Energy Management Software
  • Browser access via IE, Firefox, Chrome, Safari and more
  • Bank level power metering and monitoring
  • Environment monitoring via external sensors for rack temperature and humidity readings with threshold alerts
  • Real-time aggregate current, voltage, power, and aggregate power dissipation displayed in a browser-based UI
  • Space saving 0U rack mount design with rear mounting
  • Lok-U-Plug and EZ-Lok Holders – easily secures power cables to the PDU

    eco DC Energy Management Software*
  • Automatic discovery of all ATEN PDUs within the same intranet
  • Remote real-time power measurement and monitoring of PDUs
  • Real-time environment monitoring via sensors
  • Plotting and monitoring of all ATEN PDU devices
  • Exceed threshold alerts through real-time monitoring, SMTP and System log
  • Power analysis reports
    * eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.

Add to Query Cart PDF Download


Technical Specification


Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 16A(Max)
Input Frequency 50-60 Hz
Input Connection For B Plug: NEMA 6-20P
For G Plug: IEC 60320 C20
Input Power 3680 VA(Max)
Outlet Type Total: 18 x IEC320 C13 + 3 x IEC320 C19
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) For B Plug:
C13: 12A
C19: 16A
For G Plug:
C13: 10A
C19: 16A
Maximum Output Current (Bank) 16A(Max)
Maximum Output Current (Total) 16A(Max)
Metering Bank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet Switching None
Environment Sensor Ports 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 90.20 x 5.60 x 4.80 cm
(35.51 x 2.2 x 1.89 in.)
Weight 2.34 kg ( 5.15 lb )
Power Cord Length 3 m
Environmental
Temperature (Operating / Storage) For B Plug: 0–50°C / -20–60°C
For G Plug: 0–40°C / -20–60°C
Humidity (Operating & Storage) 0–80% RH, Non-Condensing
Compliance
EMC Verification CE, FCC, J55022 Others by Request
Safety Verification CE-LVD, PSE, Others by Request
