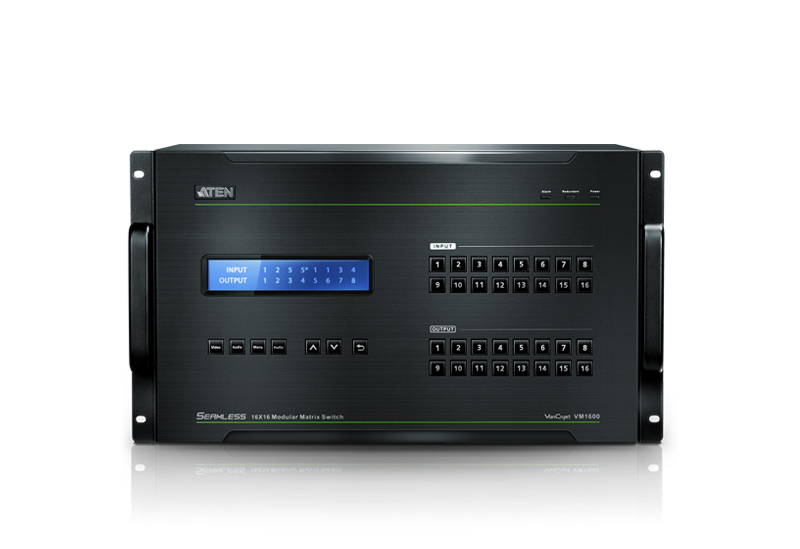

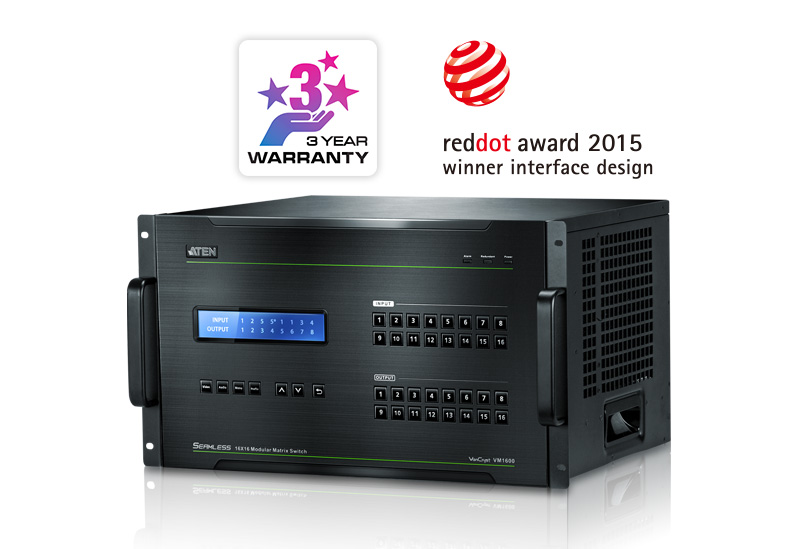

16x16 Modular Matrix Switches

16x16 Modular Matrix Switches

Product Code : VM1600

Brand Category : Video Matrix Switches


Description


  • Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
  • Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
  • 4K resolutions – up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
  • Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Scaler – features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*
  • Video wall – allows you to create custom video wall layouts via intuitive web GUI*
  • EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
  • Audio-enabled – HDMI audio can be extracted and stereo audio can be embedded*
  • Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI
  • Supports redundant power module for higher reliability
  • Hot-swappable design for easy integration of I/O boards, fan module, and power supplies
  • HDCP 2.2 Compatible*
  • HDMI: 3D, Deep Color, 4K*
  • Consumer Electronics Control (CEC) supported*
  • ESD protection for HDMI
  • Rack mountable (6U design)
    * Note:
    1. The availability of the features with “*” depends on which I/O board is inserted.
    2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
    3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Add to Query Cart


Technical Specification


Video Input
InterfacesDepends on which I/O board is inserted
Impedance100 Ω
Max. Data Rate10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Support depends on the boards selected
Consumer Electronics Control (CEC)
HDBaseT Compatible
Audio
InputDepends on which Input board is inserted
OutputDepends on which Output board is inserted
Control
RS-232Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422Connector: 1 x Captive Screw Connector, 5 Pole
EthernetConnector: 1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power1 x 3-Prong AC Socket
Power
Maximum Input Power Rating100-240 VAC; 50-60Hz; 1.0A
Power Consumption378W (Max.)
*A power module can be purchased for power redundancy.
FanAirflow: 60 cfm
Operating Voltage: 10.8 - 13.8 VDC
Operating Temp: -10 - 70°C
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight17.00 kg ( 37.44 lb )
Dimensions (L x W x H)48.22 x 39.90 x 26.59 cm
(18.98 x 15.71 x 10.47 in.)
Rack Height (U Spaces)6U
Carton Lot1 pc
"
