Product Code : PE0118S
Brand Category : Rack PDU

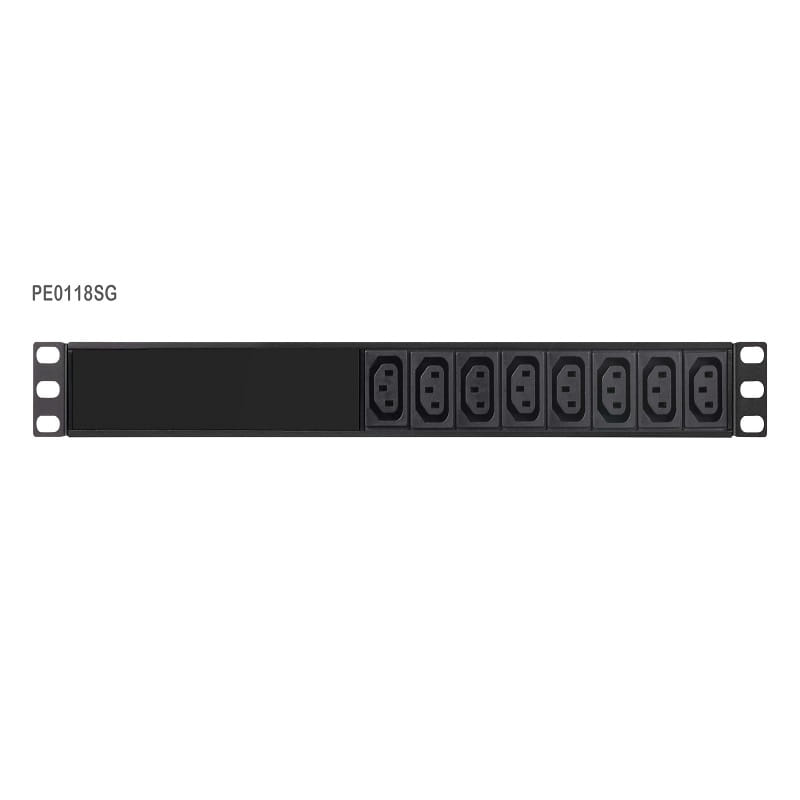

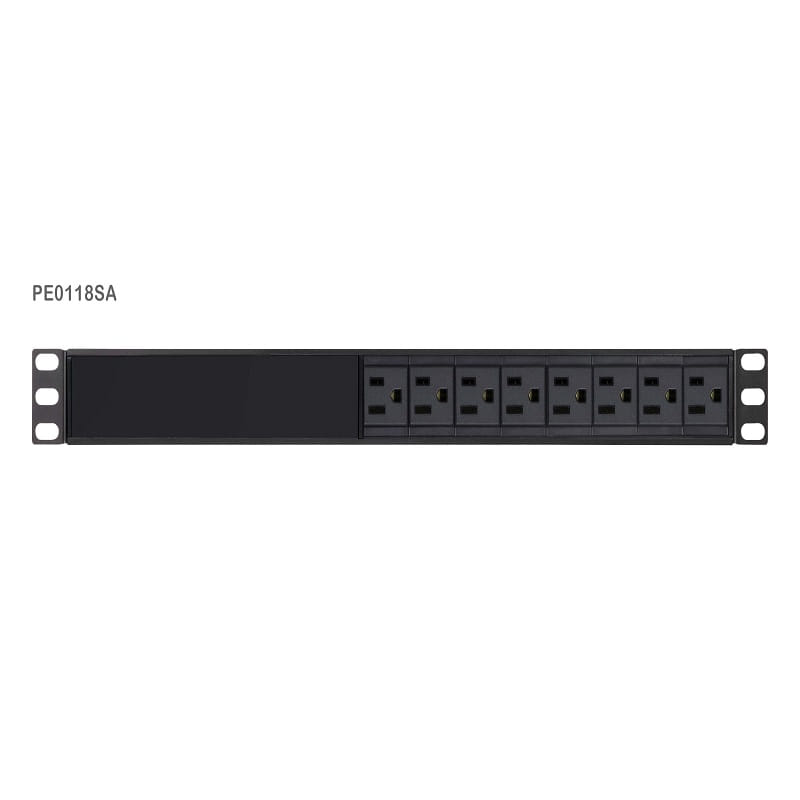

| Function | PE0118SA | PE0118SG |
| Electrical | ||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC |
| Maximum Input Current | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-15P | IEC-320 C14 |
| Input Power | 1800VA(Max); 1440VA(UL de-rated) | 2400VA (Max) |
| Outlet Type | (18) NEMA 5-15R | (18) IEC 320 C13 |
| Maximum Output Current (Outlet) | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| Maximum Output Current (Bank) | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| Maximum Output Current (Total) | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| OPD(Overcurrent Protection Device) | Yes | Yes |
| Physical Properties | ||
| Dimensions (L x W x H) | 48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.) | 48.20 x 4.44 x 8.85 cm (18.98 x 1.75 x 3.48 in.) |
| Weight | 1.22 kg ( 2.69 lb ) | 1.22 kg ( 2.69 lb ) |
| Power Cord Length | 10ft(14#) | 10ft(3×1.0mm2) |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ | 0 – 40℃ / -20 – 60℃ |
| Elevation (Operating / Storage) | 3000m | 3000m |
| Compliance | ||
| EMC Verification | FCC Class A | CE Class A |
| Safety Verification | UL | CE,LVD, UL |
