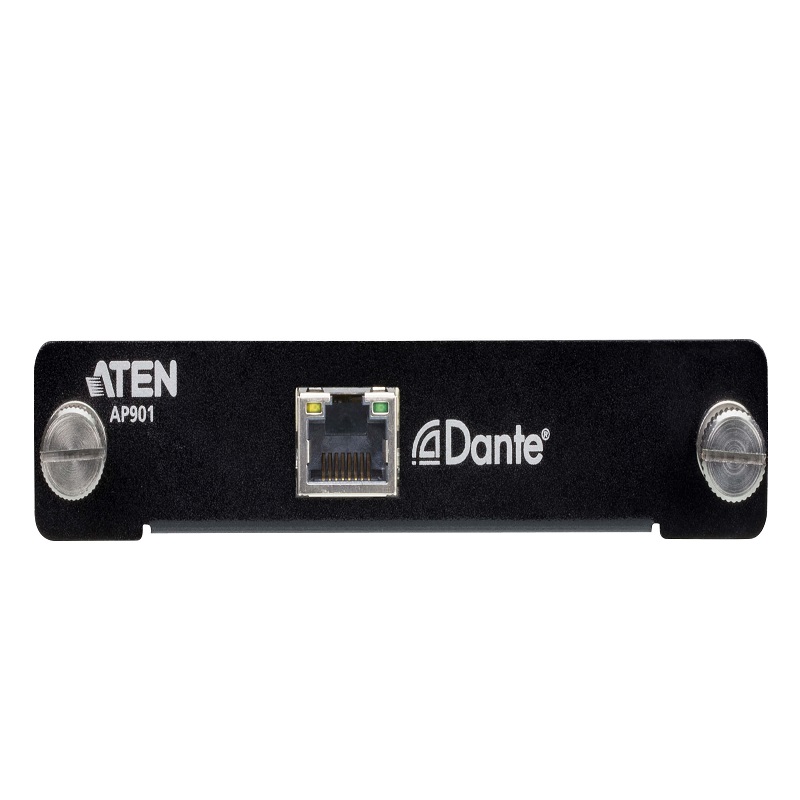

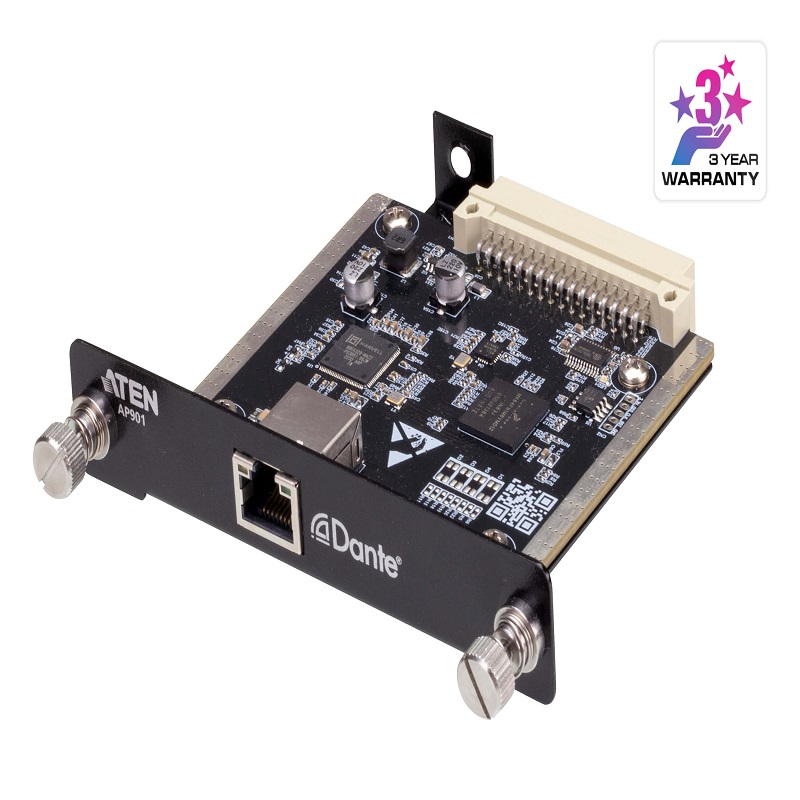

2-CH Dante Expansion Card for AP Series

Product Code : AP901

Brand Category : Audio

Description

Dedicated for use with ATEN’s AP DSP Power Amplifier series
Allows AP power amplifiers to receive 2 inputs of highquality, low-latency digital audio via Dante AoIP solution
Enables AP power amplifiers to easily integrate with Dante-enabled devices, such as digital mixers, processors, and media players
Supports 24-bit and sampling rates of 44.1 / 48 kHz
Compatible with Dante Controller software to achieve streamlined workflow
Easy to be installed into the AP power amplifiers’ expansion slot
Firmware upgradable via Dante LAN

Technical Specification

Network Protocol
1000/10000 Mbps	Dante Ultimo
Connector	RJ45
Audio Sampling	24-bit, 44.1/48kHz
Compliance
Certification	FCC, CE, UKCA Tested with AP2 Amplifier
Environmental
Operating Temperature	0~50℃
Humidity	0-80% RH, Non-Condensing
Storage Temperature	-20~60℃
Physical Properties
Weight	0.12 kg ( 0.27 lb )
Housing	Metal Panel
Dimensions (L x W x H)	11.50 x 2.20 x 11.00 cm (4.53 x 0.87 x 4.33 in.)
