2-Console 16-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

2-Console 16-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

Product Code : KH2516A

Brand Category : Cat 5 KVM Switches


Description


"

  • Two KVM consoles independently and simultaneously control up to 16 directly connected computers
  • By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console
  • Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
  • Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
  • OSD Backup/Restore feature – enables the administrator to back up the switch's configuration and user profile information
  • Configure port access rights for users on a port - by - port basis
  • Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support – Windows, Linux, Mac and Sun
  • Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
  • Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable

    *With KVM Adapter Cable KA7000 series.

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections
Direct 16
Maximum 256 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton

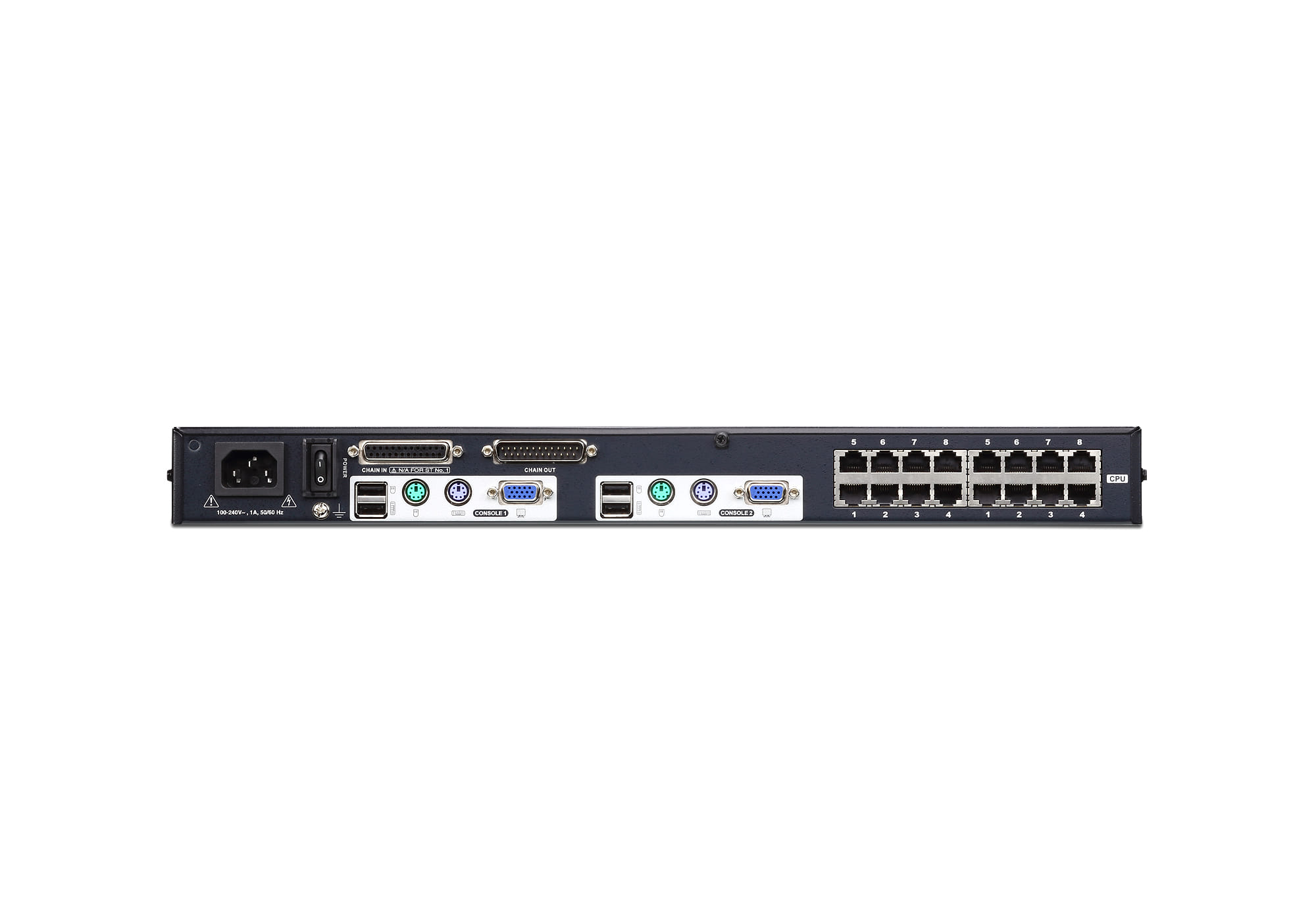

Connectors
Console Ports 4 x USB Type A Female
2 x 6-pin Mini-DIN Female (Purple)
2 x 6-pin Mini-DIN Female (Green)
2 x HDB-15 Female (Blue)
KVM Ports 16 x RJ-45 Female
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female
Power 1 x IEC 60320/C14
Switches
Port Selection 16 x Pushbutton
Console Selection 2 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide
Power 1 x Rocker
LEDs
Online 16 (Green)
Selected 16 (Orange)
Console 2 (Orange)
Power 1 (Blue)
Station ID 1 x 7-segment LED display (Orange)
Emulation
Keyboard / Mouse PS/2; USB
Scan Interval 1-255 Seconds
Video 1920 x 1200 @ 60 Hz (30 m);
1600 x 1200 @ 60 Hz (40 m);
1280 x 1024 @ 75 Hz (50 m)
Maximum Input Power Rating 100–240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:9.7W:63BTU
AC220V:10.7W:67BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.85 kg ( 6.28 lb )
Dimensions (L x W x H) 43.72 x 15.58 x 4.40 cm
(17.21 x 6.13 x 1.73 in.)
