2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

Product Code : CM1942

Brand Category : Desktop KVM Switches

Description

One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
Two PC Operation Modes:
- Single PC Mode – allows content of the PC with current KVM focus to be displayed over both monitors
- Dual PC Mode – allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus
Supports superior video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
Computer selection via pushbuttons, hotkeys, mouse wheel, mouse cursor, and remote port selector

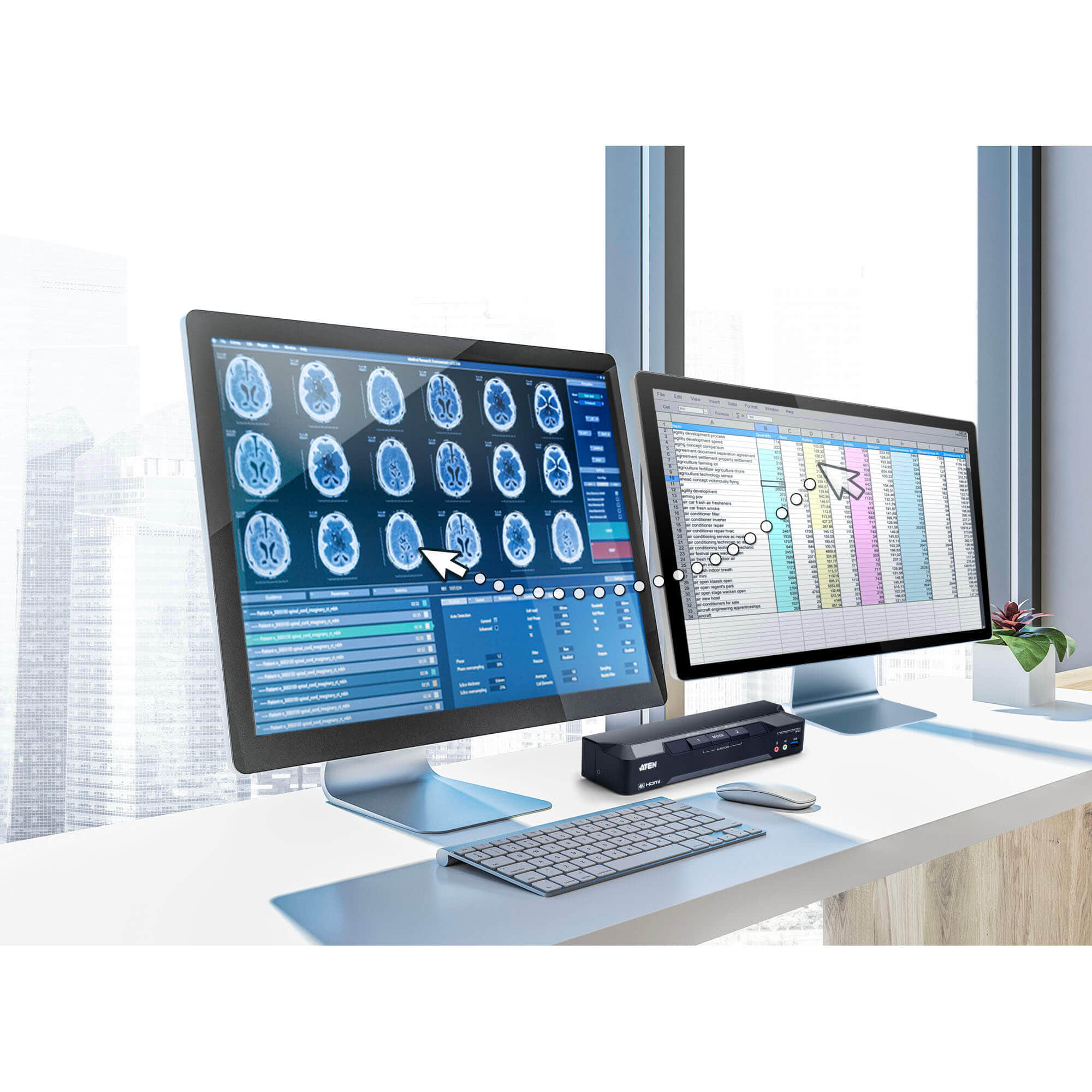

Boundless Switching – allows the mouse cursor to move across screen borders for quick switching between video sources
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
Audio Mixer Mode – mixes up to two audio sources as one audio output
DisplayPort 1.2 , HDMI, and HDCP compliant
Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Power on detection
Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
Console keyboard emulation / bypass feature supports most multimedia keyboards
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector

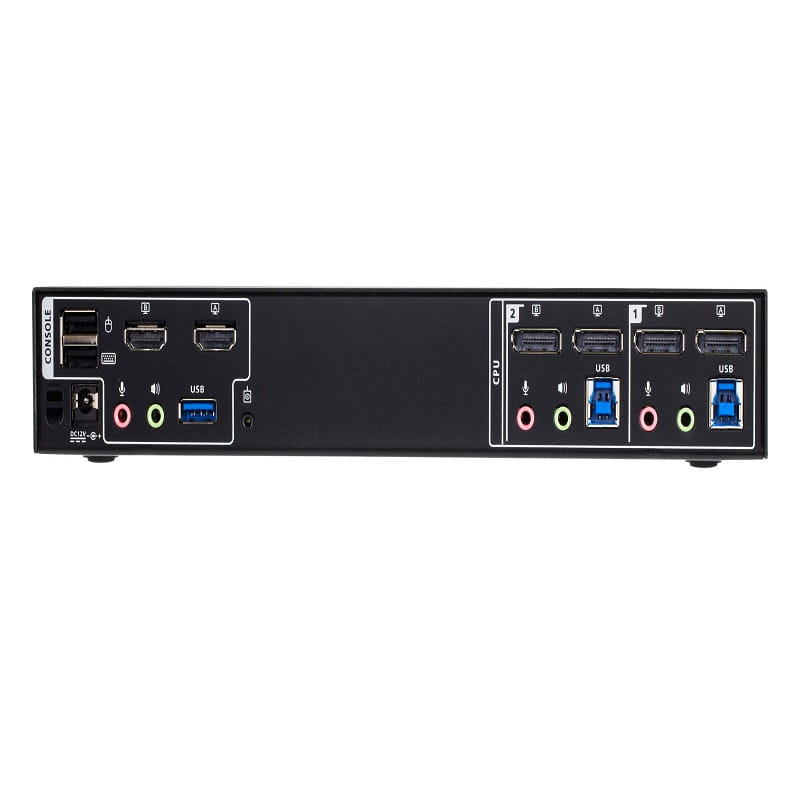

Connectors
Console Ports	2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports	2 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Remote Port Selector	1 x 2.5mm Audio Jack Female
Power	1 x DC Jack
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected	3 x Pushbutton
LEDs
Audio	2 (Green)
KVM	2 (Orange)
USB	2 (Green)
Mode of Operation	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	4096 x 2160 @ 60Hz
Scan Interval	1-99 Seconds (Default: 5 sec.)
Power Consumption	DC12V:11.58W:97BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.64 kg ( 1.41 lb )
Dimensions (L x W x H)	26.00 x 7.18 x 4.25 cm (10.24 x 2.83 x 1.67 in.)
