2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector

Product Code : US3312

Brand Category : Cable KVM Switches

Description

One KVM switch allows for easy control and fast switch between two USB-C devices from a single set of keyboard, mouse, and monitor
Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4)
Instant computer selection via remote port selector
LED indicators will light to display port focus
Supports two USB and one DisplayPort downstream ports for USB peripheral sharing
DisplayPort 1.2 compliant
Bus-powered – no external power adapter or driver needed
Supports USB hot-plugging
Compact enclosure with hook design for space-saving and organized workstation

Note：For DisplayPort 1.4 compliant display devices, please make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issues

Technical Specification

Computer Connections	2
Port Selection	Remote Port Selector
Connectors

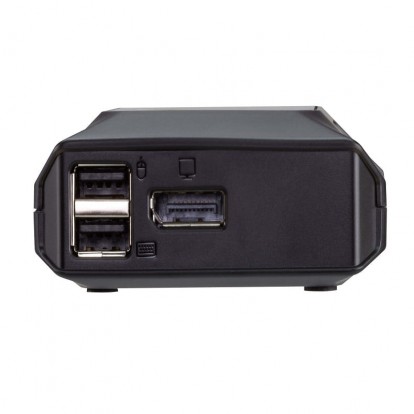

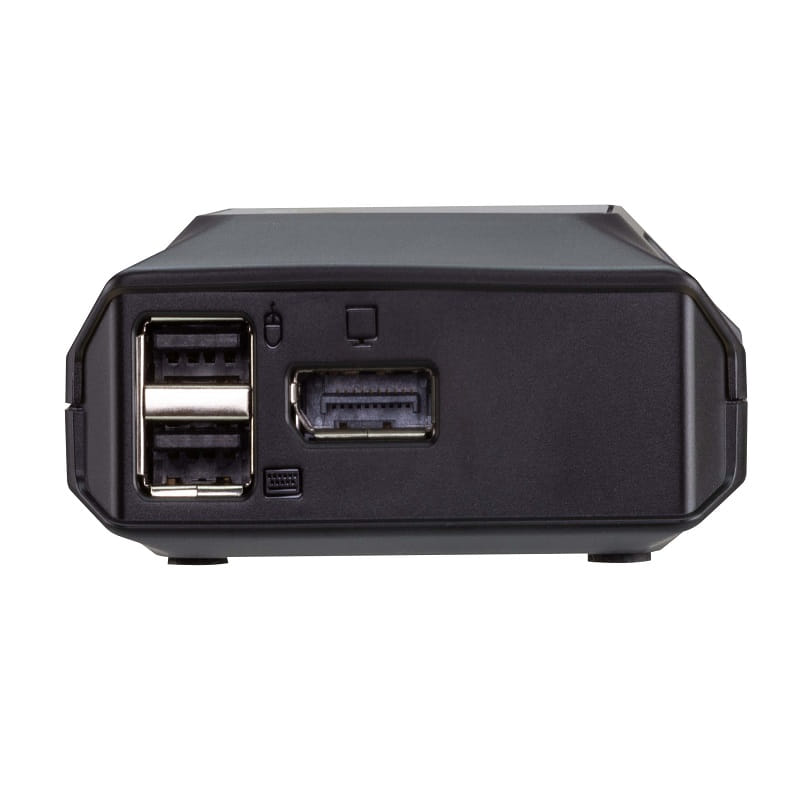

Console Ports	1 x DisplayPort Female 2 x USB Type A Female
KVM (Computer) Ports	CPU1: 1 x USB Type C Male CPU2: 1 x USB Type C Male
LEDs
KVM Port (On Line /Selected)	2 (White)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	N/A
Video	4096 x 2160 @ 60Hz
System Requirements	Windows USB-C enabled computer: - Windows® 10 (32-bit / 64-bit) and above - With Intel 7th-Generation Core Processor (Kaby -Lake with HD 6XX series integrated graphics) and above. - For video output to work through a USB-C port, it must support DP Alt Mode. - Thunderbolt™ 3 Compatible Mac USB-C enabled computer: - MacBook 2015 and later - MacBook Pro 2016 and later - Mac OS X 10.12 and above USB-C enabled Smartphone / Tablet: - Android 8.0 and later / iPadOS 13.1 - For video output to work through a USB-C port, it must support DP Alt Mode.
Power Consumption	DC5V:0.74W:8BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.19 kg ( 0.42 lb )
Dimensions (L x W x H)	8.34 x 8.42 x 2.99 cm (3.28 x 3.31 x 1.18 in.)
