2-Port 4K HDMI USB-C KVM Dock Switch with Power Pass-through

Product Code : US3310

Brand Category : Desktop KVM Switches

Description

Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals*
Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter is needed)**
Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
Supports Samsung DeX mode or Huawei Desktop mode***
Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching
Switches devices via remote port selector by pressing a button
Plug and play – no drivers needed
Multiplatform support – Windows 10 or above, macOS X 10.12, Android 8.0 or later, and iPadOS 13 or later
Apple M1 chip compatible
*For video output to work through a USB-C port, it must support DP Alt Mode.
**For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
***Compatible with smartphones launched in 2018 or later that feature video output DP Alt Mode over USB-C. For a list of supporting mobile device, refer to US3310's user manual

Technical Specification

Computer Connections	2

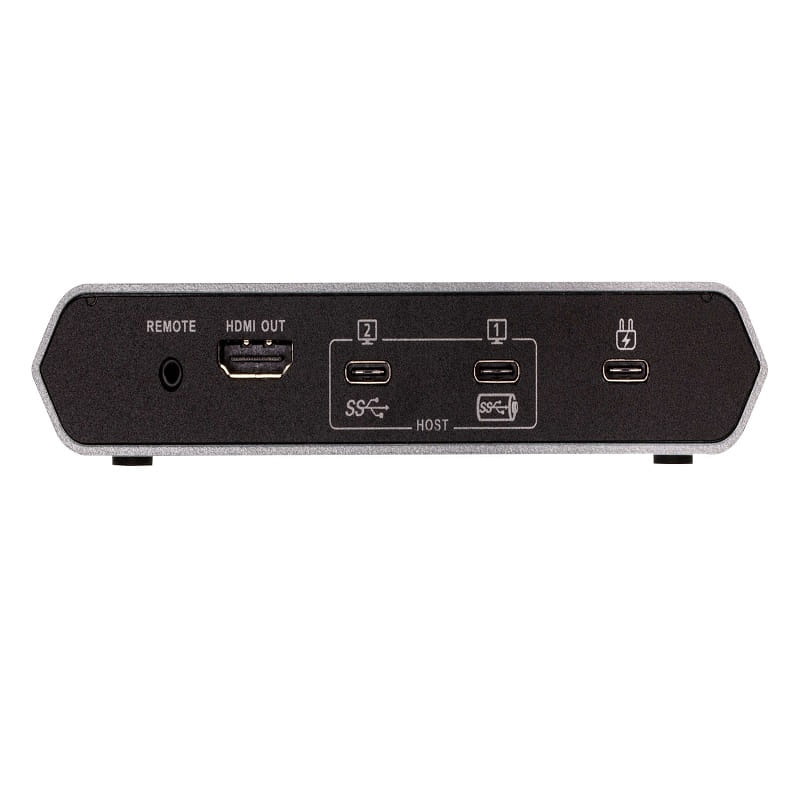

Connectors
Computer	USB 3.2 Gen 1 Type-C Port 1 (Laptop) USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode)
Device	2 x USB 3.2 Gen 1 Type-A Female
Video Output	1 x HDMI Female
Power	1 x USB-C DC-in Female* Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output* Port 2 : Supports max. 5V, 2A output Supports maximum 100W USB-C PD power adapter input. For device charging, a Limited Power Source (LPS) certiﬁed USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A. *The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1.
Port Selection
Input	Remote port selector
Video Resolution	Up to 3840 x 2160@30hz
System Requirements	Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual. iOS 12.1 and above, iPad Pro 3rd generation (2018)* * For better HID experience, iPad OS 13 and above is recommended.
Power Consumption	DC5V:1.24W:406BTU
LEDs
Selected	2 (White)
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.33 kg ( 0.73 lb )
Dimensions (L x W x H)	14.30 x 11.90 x 2.38 cm (5.63 x 4.69 x 0.94 in.)
