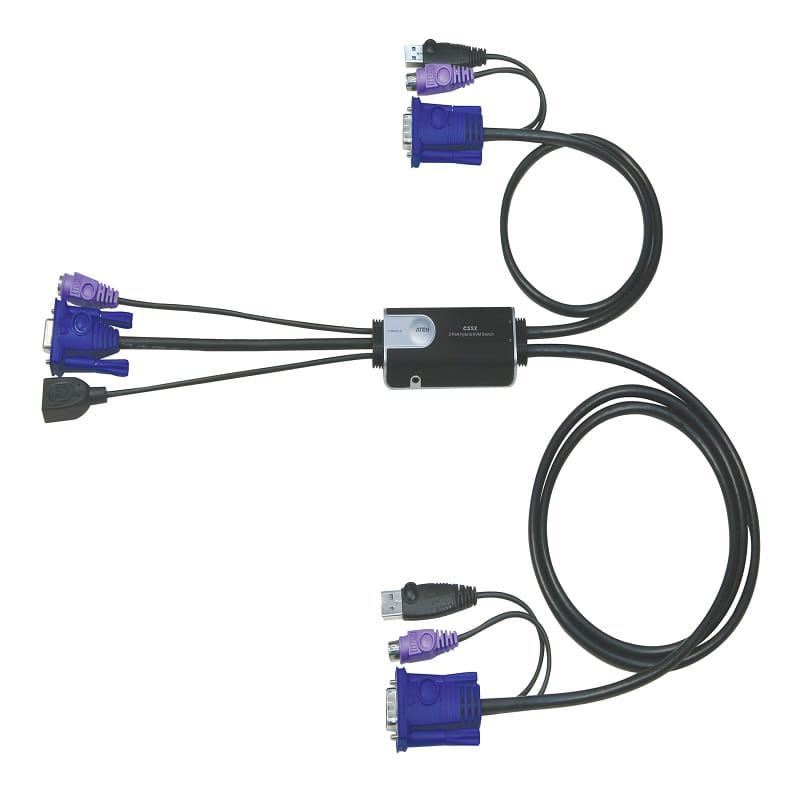

2-Port PS/2 USB VGA Cable KVM Switch with Remote Port Selector

Product Code : CS52

Brand Category : Cable KVM Switches

Description

One console (monitor, PS/2 keyboard, and USB mouse) controls two computers
Remote port selection switch for convenient switch placement
Supports multi-function mice
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
Compact design, built in all-in-one cables (console 0.15m; computers 0.6m, 1.2m)
Superior video quality- up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
OS Compatibility includes Windows 2000/XP/Vista, Linux and FreeBSD.

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Remote Port Selector
Connectors
Console Ports	1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x USB Type A Female
KVM Ports	2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x USB Type A Male (Black)
Remote Port Selector	1 x 2.5mm Audio Jack Female
LEDs
Selected	2 (Green)
Cable Length
Console	0.15 m
Computer	1 x 0.6 m; 1 x 1.2 m
Emulation
Keyboard / Mouse	PS/2
Video	2048 x 1536; DDC2B
Scan Interval	3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption	DC5V:0.02W:4BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.35 kg ( 0.77 lb )
Dimensions (L x W x H)	8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.)
