2-Port PS/2-USB VGA KVM Switch

Product Code : CS82U

Brand Category : Desktop KVM Switches

Description

One PS/2-USB VGA console controls two VGA interface computers.
Dual Interface - supports computers with PS/2 or USB keyboards and mice

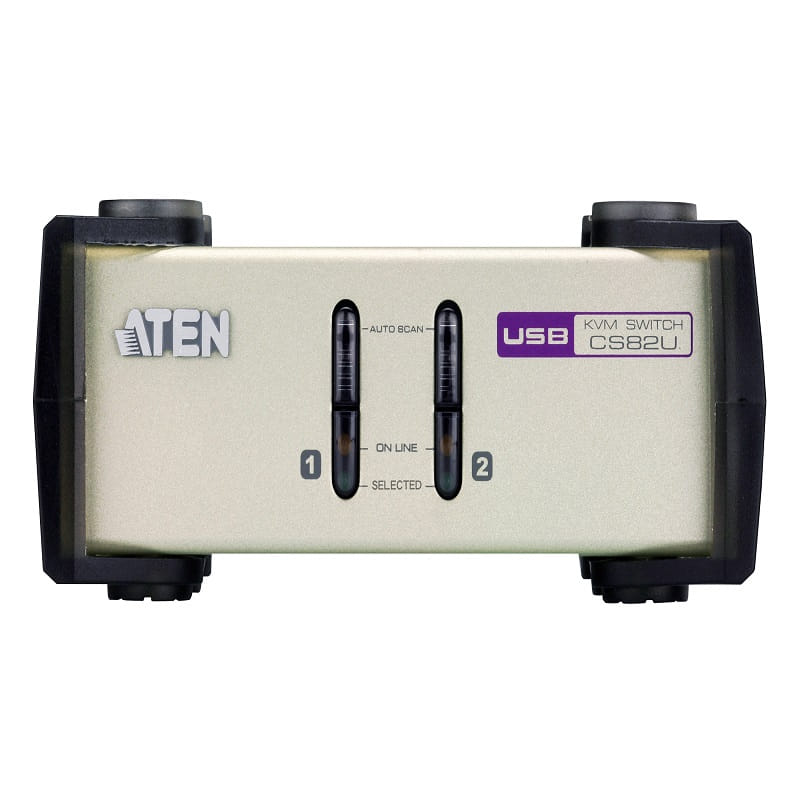

Computer selection via front panel pushbuttons, hotkeys, and mouse
Multiplatform support - Windows, Linux, Mac, and Sun
Superior video quality - 2048 x 1536; DDC2B
Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping - supports English, Japanese, and French keyboards
Gaming keyboard support
Auto Scan Mode for monitoring all computers
Firmware upgradable
Bus-Powered

* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Pushbutton, USB Mouse
Connectors

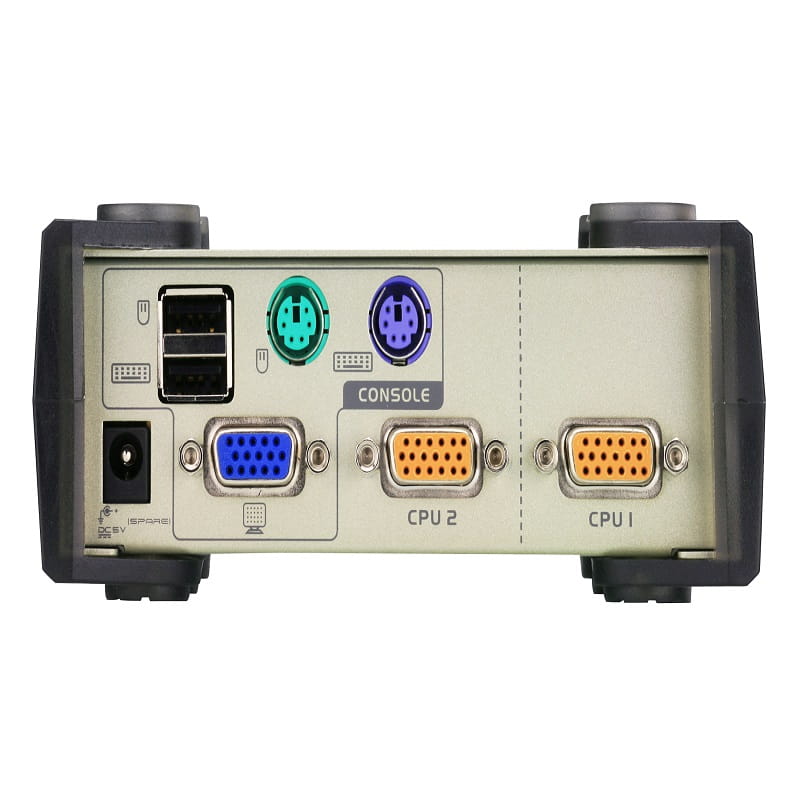

Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
KVM Ports	2 x SPHD-18 Female (Yellow)
Power	1 x DC Jack
Switches
Selected	2 x Pushbutton
LEDs
Online	2 (Orange)
Selected	2 (Green)
Emulation
Keyboard / Mouse	PS/2, USB
Video	2048 x 1536 @ 60 Hz; DDC2B
Scan Interval	3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption	DC5V:0.72W:12BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.54 kg ( 1.19 lb )
Dimensions (L x W x H)	14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
