2-Port PS/2-USB VGA/Audio KVMP™ Switch with OSD

2-Port PS/2-USB VGA/Audio KVMP™ Switch with OSD

Product Code : CS1732B

Brand Category : Desktop KVM Switches


Description


"

  • 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
  • One console controls two computers and two additional USB devices
  • 2-port USB 2.0 hub built in
  • USB 2.0 compliant
  • Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
  • Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
  • Console audio ports on front panel for easy access - ideal for IP phone users
  • Independent switching of KVM, USB, and Audio focus
  • Superior video quality; 2048 x 1536; DDC2B
  • Supports widescreen resolutions
  • Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
  • Multiplatform support - Windows , Mac, and Sun
  • Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Sun/Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers
  • LED Display for easy status monitoring
  • Easy installation no software required
  • Firmware upgradeable

    *1.PC keyboard combinations emulate Sun/Mac keyboards
    2.Sun/Mac keyboards only work with their own computers

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 2
Port Selection Hotkey, Pushbutton, OSD, Mouse

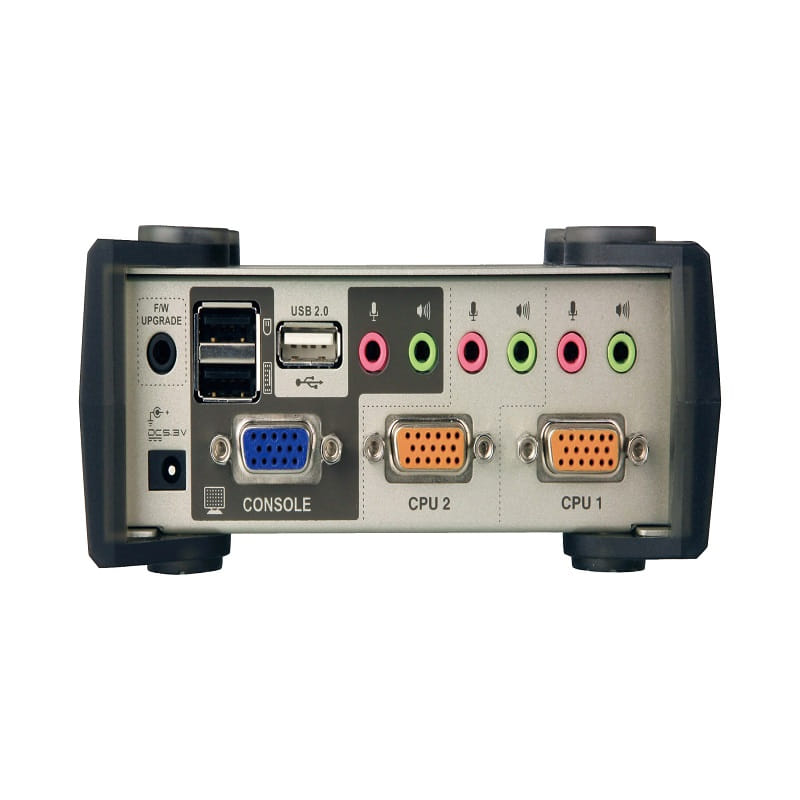

Connectors
Console Ports 2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x SPHD-15 Female (Yellow)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
Switches
Selected 2 x Pushbutton
LEDs
Online / Selected 2 (Orange)
USB Link 2 (Green)
Emulation
Keyboard / Mouse PS/2; USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-255 Seconds (Default: 5 sec.)
Power Consumption DC5.3V:2.53W:37BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.55 kg ( 1.21 lb )
Dimensions (L x W x H) 14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
