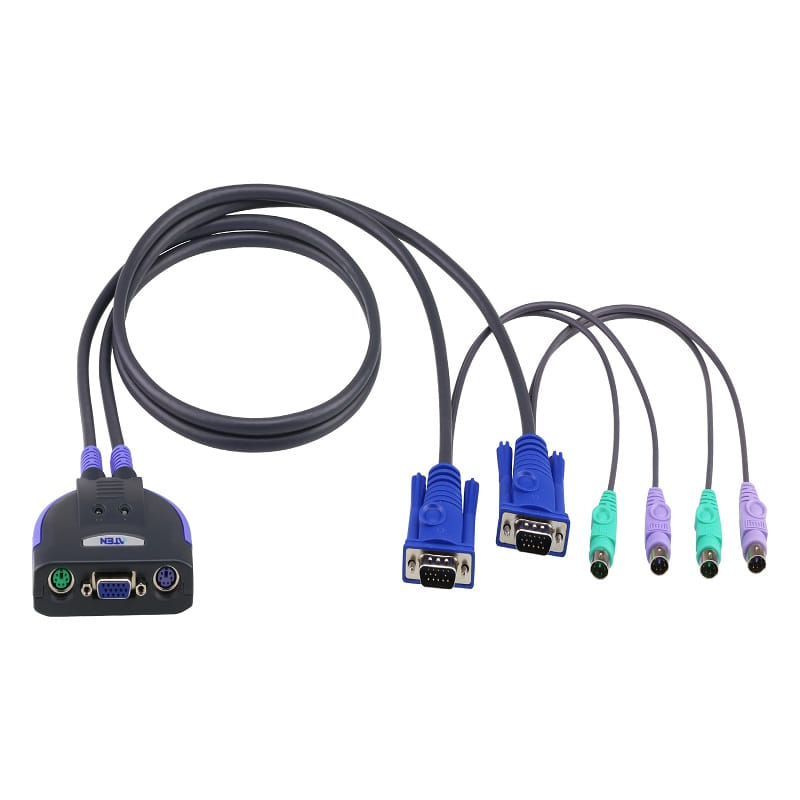

Product Code : CS62S
Brand Category : Cable KVM Switches
"
"
| Computer Connections | 2 |
| Port Selection | Hotkey |
| Connectors | |

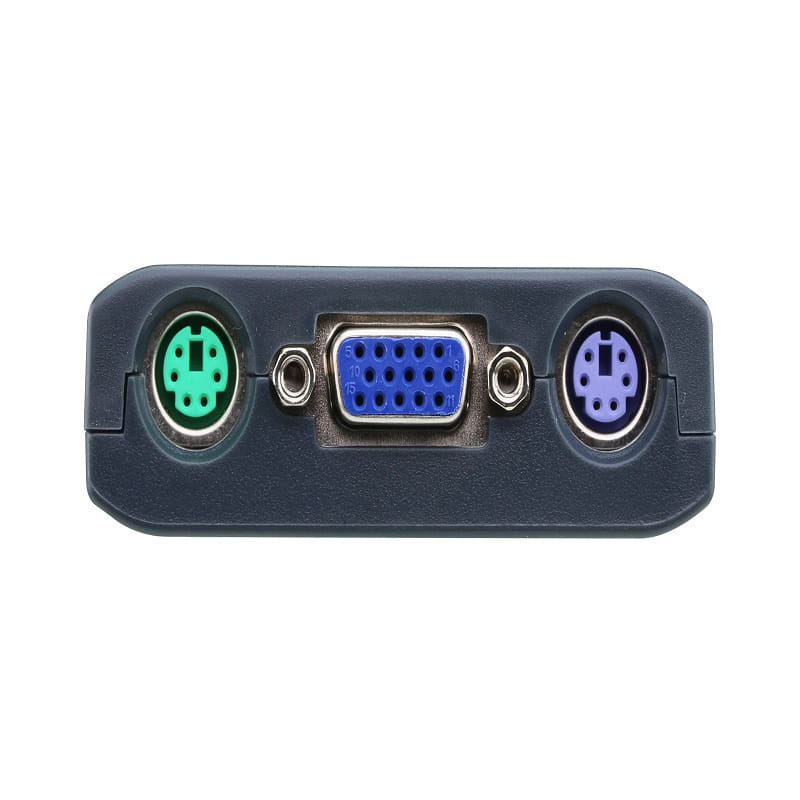

| Console Ports | 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) |
| KVM Ports | 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x 6-pin Mini-DIN Male (Green) |
| LEDs | |
| Selected | 2 (Green) |
| Cable Length | |
| Computer | 2 x 0.9 m |
| Emulation | |
| Keyboard / Mouse | PS/2 |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 3, 5, 10, 20 seconds (default: 5 secs.) |
| Power Consumption | DC5V:0.17W:5BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.25 kg ( 0.55 lb ) |
| Dimensions (L x W x H) | 7.30 x 6.24 x 2.25 cm (2.87 x 2.46 x 0.89 in.) |
