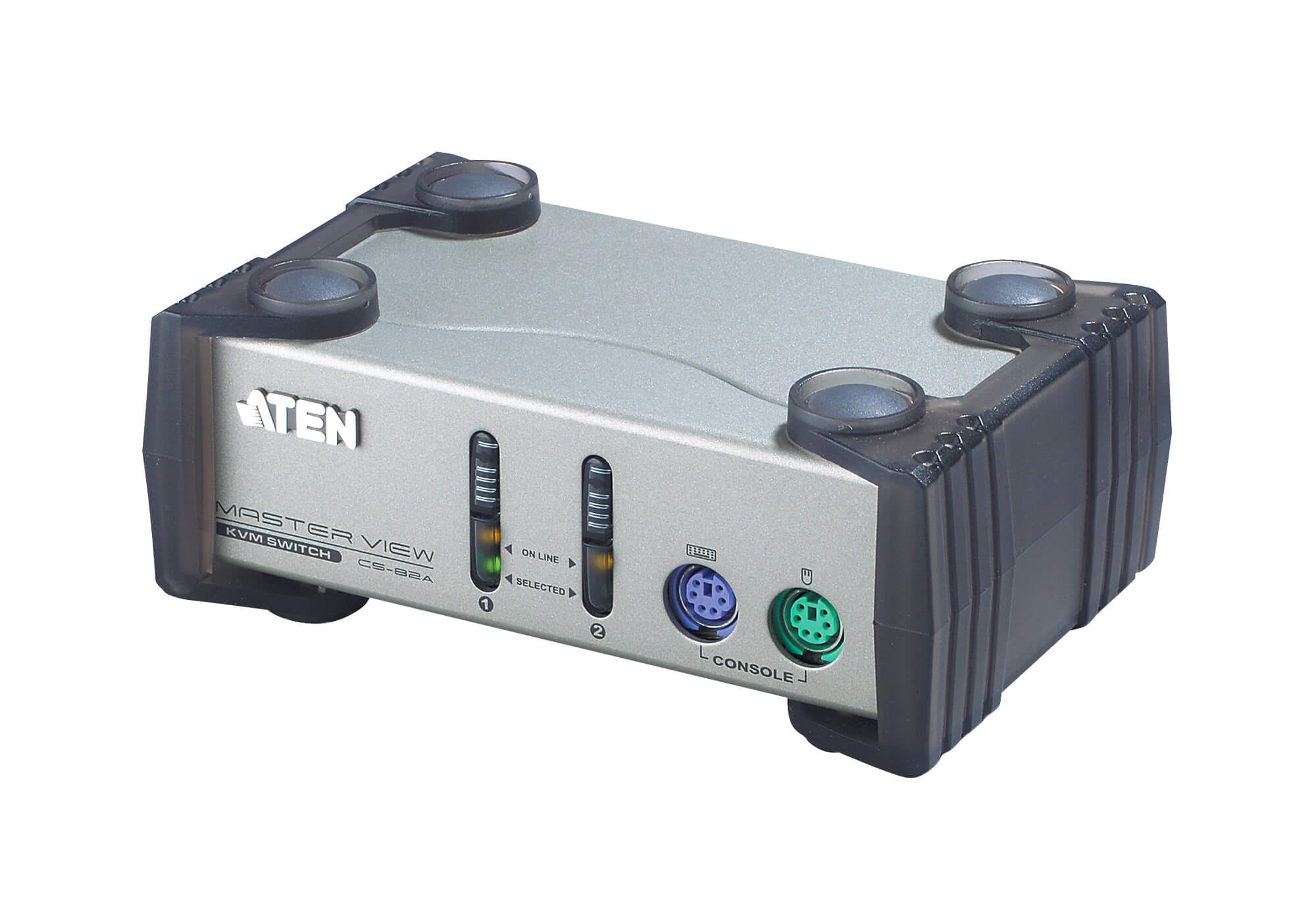

2-Port PS/2 VGA KVM Switch

2-Port PS/2 VGA KVM Switch

Product Code : CS82A

Brand Category : Desktop KVM Switches


Description


"

  • One PS/2 console controls 2 computers.
  • Computer selection via front panel pushbuttons and hotkeys.
  • Superior video quality- up to 1920 x 1440; DDC2B.
  • Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse.
  • Compact, Sturdy, Durable Metal Housing.
  • Keyboard and mouse emulation for error free booting.
  • Auto Scan function to monitor computer operation.
  • Bus-Powered.
  • OS Compatibility: DOS, WIN 98, WIN ME, WIN NT, WIN 2K, WIN XP, WIN 2003, Windows Vista, LINUX. Mac 8.6/9/10 and SUN Solaris 8/9 (with optional adapter).

"


Add to Query Cart PDF Download


Technical Specification


Computer Connections 2
Port Selection Hotkey, Pushbutton

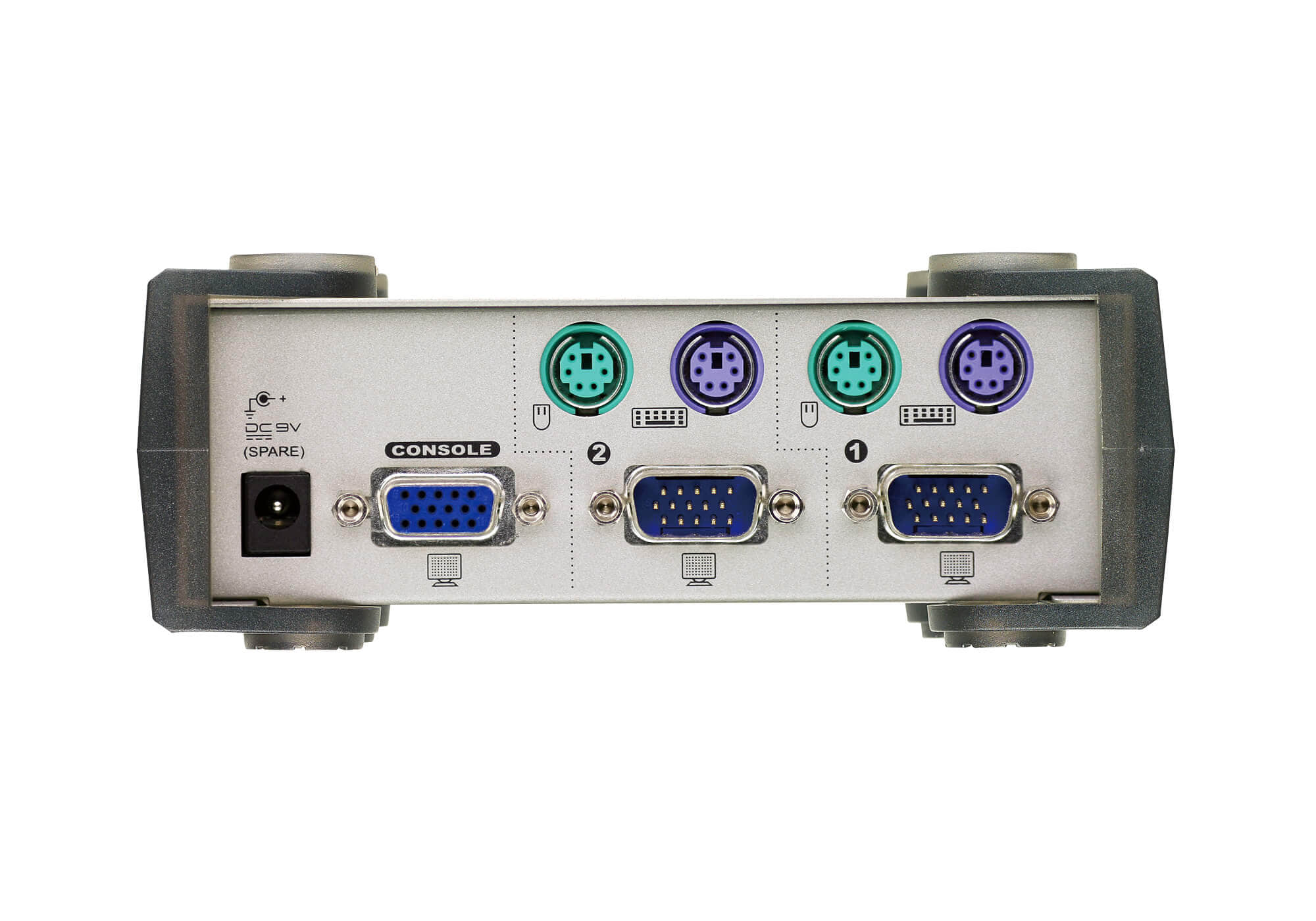

Connectors
Console Ports 1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports 2 x HDB-15 Male (Blue)
2 x 6-pin Mini-DIN Female (Purple)
2 x 6-pin Mini-DIN Female (Green)
Power 1 x DC Jack
Switches
Ports 2 x Pushbutton
LEDs
Online 2 (Orange)
Selected 2 (Green)
Emulation
Keyboard / Mouse PS/2
Video 1920 x 1440 @ 60Hz; DDC2B
Scan Interval 3, 5, 10, 20 Seconds
Power Consumption DC9V:0.3W:6BTU
Environmental
Operating Temperature 0°~50°C
Storage Temperature -20°~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.54 kg ( 1.19 lb )
Dimensions (L x W x H) 14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
