2-Port RS-232 Secure Device Server with PoE

2-Port RS-232 Secure Device Server with PoE

Product Code : SN3002P

Brand Category : Secure Device Servers

Description



  • Serial-to-Ethernet Connectivity
    • 2 RS-232 serial ports for secured serial data over Ethernet transmission
    • Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
    • Standard operation modes – Real COM, TCP Server / Client, Serial Tunneling Server / Client, UDP, Console Management (Telnet), and Console Management Direct (Telnet)
    • Real COM, Real TTY, and Fixed TTY drivers for Windows, Linux, and UNIX
    • Convenient console management access via Java viewer (SSH/Telnet) or third-party clients such as PuTTY
    • Easy console port access via Java viewer and Sun Solaris ready (""break-safe"")
    • Multiple users can simultaneously access the same port – up to 16 connections per port

<!-- Features List-2 -->

  • Hardware
    • Redundant power input (power jack and terminal block) for fail-safe power
    • IEEE 802.3af-compliant PoE PD (powered device) equipment
    • Surge protection for serial, Ethernet, and power
    • DIN-rail mounting, wall mounting, rack mounting, and desktop installation available
    • Supports baud rates of 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k bps

<!-- Features List-3-->

  • Security
    • Supports secured login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
    • Configurable user permissions for port access and control
    • Local and remote authentication and login
    • Third-party authentication (e.g. RADIUS)
    • IP address filter for security protection

<!-- Features List-4 -->

  • System Management
    • Browser access with an intuitive GUI design
    • Web-based quick setup wizard for fast configuration
    • Terminal-based access with a menu-driven UI via Telnet / SSH
    • Online / Offline detection of connected serial devices (including terminal blocks) – automatically sending event notifications when the devices are offline (e.g. power failure) for device status monitoring
    • System event logs will be saved to an internal memory or Syslog server
    • Port logs will be saved to an internal memory or Syslog server
    • SNMP agent (v1/v2c)
    • Event notification – supports notification of SMTP email and SNMP Trap (v1/v2c)
    • Backup / Restore system configuration and upgradeable firmware
    • 64 KB port buffer prevents data loss when the network is down
    • NTP for time server synchronization
    • Multi-language web-based GUI



Add to Query Cart PDF Download

Technical Specification

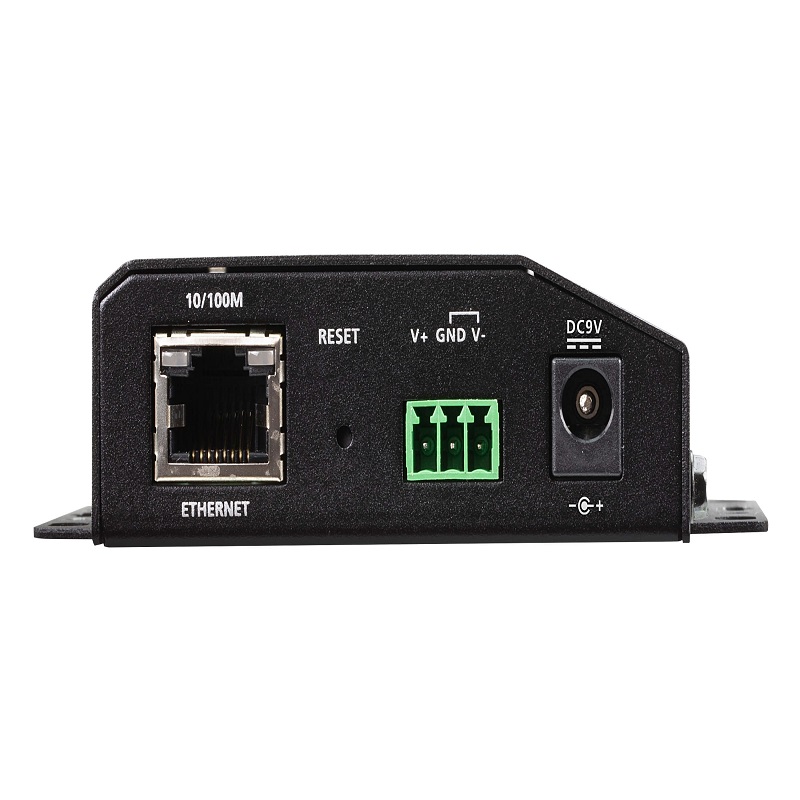

Connectors
Serial 2 x DB-9 Male
Network 1 x RJ-45 Female
Power 1 x DC Jack
1 x 3-pole Terminal Block
1 x RJ-45 (PoE, IEEE 802.3af)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
Power 1 (Green)
Status 1 (Yellow Green/Red)
10/100 Mbps 2 (Green/Orange)
Ports 2 (Green/Orange)
Input voltage DC Jack: 9VDC (optional power adapter)
Terminal Block: 9-48 VDC
PoE: 48VDC
Power Consumption DC48V:1.11W:5BTU
POE:1.39W:7BTU
Interfaces
Serial RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Baud Rate: 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps
Data Bits: 5, 6, 7, 8
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Network 10/100 Base TX
Built-in 1.5 kV Magnetic Isolation Protection
Compliance EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV (Power Adapter), 1kV (Terminal Block); Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 10 MHz: 3 V/m; 10 kHz to 30 MHz: 3 to 1 V/m; 30 kHz to 80 MHz: 1 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Safety: UL 60950-1 and UL 62368-1 standards compliant
RoHS
Environmental
Operating Temperature 0 - 60°C
Storage Temperature -40 - 75°C
Humidity 5 ~ 95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.22 kg ( 0.48 lb )
Dimensions (L x W x H) 9.80 x 11.70 x 2.60 cm
(3.86 x 4.61 x 1.02 in.)
Installation Desktop, Wall Mounting, Din-Rail Mounting, Rack Mounting (with VE-RMK1U)
Others Power consumption DC9V: 0.94W:4BTU
Power adapter is sold separately.
Rack mounting kit (VE-RMK1U) is sold separately.
