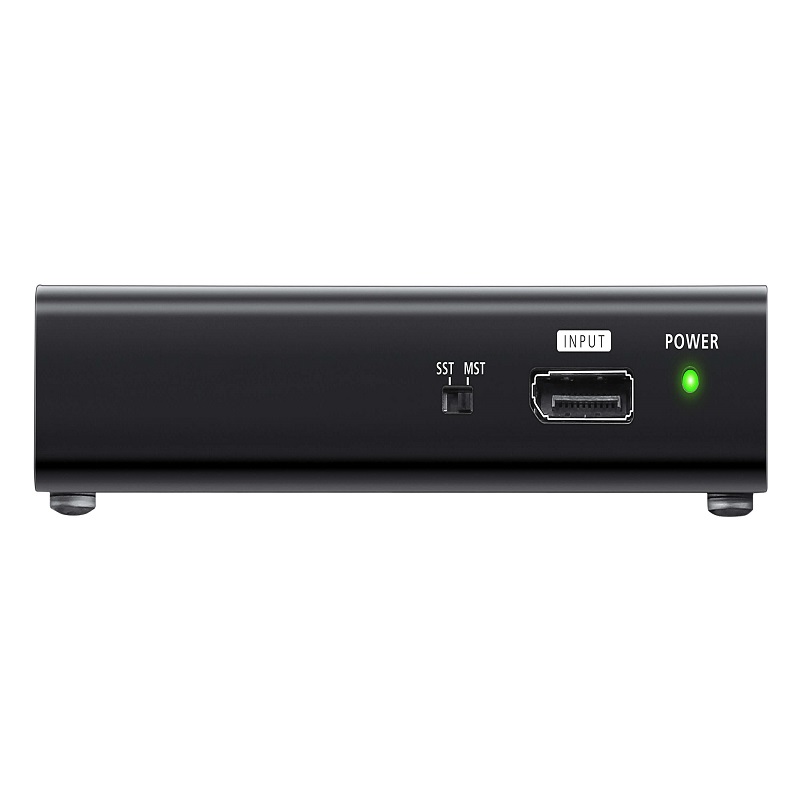

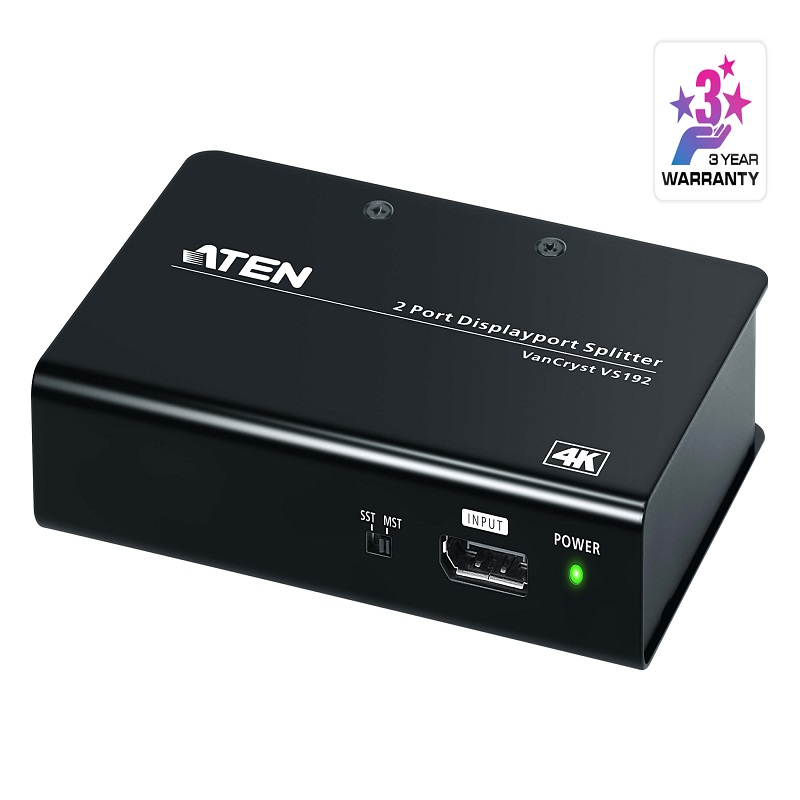

2-port True 4K DisplayPort Splitter

2-port True 4K DisplayPort Splitter

Product Code : VS192

Brand Category : Video Splitters

Description

  • Connects 1 DisplayPort source to 2 DisplayPort monitors
  • Supports DisplayPort 1.2a; HDCP 1.3
  • Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
  • Supports MST/ Extend Mode and SST/ Split Mode*
    MST/ Extend Mode:
    Extend a video source across 2 displays with a maximum resolution of 4K.
    SST/ Split Mode:
    Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
  • Supports Linkrate: HBR2 (High Bit Rate 2)
    Note:
    * The VS192 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.

Add to Query Cart PDF Download

Technical Specification

Video Output
Interfaces2 x DisplayPort Female (Black)
Max. Distance4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz)
*tested with 2L-7D04DP
Video Input
Interfaces1 x DisplayPort Female (Black)
Max. Distance4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz)
*tested with 2L-7D04DP
Video
ComplianceDP 1.2a; HDCP 1.3
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz
Max. Data Rate21.6 Gbps (5.4 Gbps per lane)
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:1.185W:6BTU
Environmental
Operating Temperature0-40 °C
Storage Temperature-20 - 60 °C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.30 kg ( 0.66 lb )
Dimensions (L x W x H)12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
Carton Lot20 pcs
