2-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC

Product Code : CS1922ATC

Brand Category : Desktop KVM Switches

Description

One USB / DisplayPort console controls 2 DisplayPort computers and shares 2 USB peripherals
Supports 2048 x 2048 @ 60 Hz screen resolutions dedicated for radar monitoring; maximum resolution up to 4096 x 2160 @ 60 Hz
Zero-Second Switch – provides continuous video stream and real-time switching
Supports power failover – 2 DC jacks for power redundancy to ensure constant availability for mission-critical applications
Computer Selection via front panel pushbuttons, hotkeys, mouse, RS-232 commands, and remote port selector
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
EDID Expert™ – smooth power- up, high-quality display and use of the best video resolution across different screens
Supports serial port switching for legacy devices
Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
DisplayPort 1.2, and HDCP compliant
Supports HD audio*
Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
Console keyboard emulation / bypass feature supports most multimedia keyboards
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
Power on detection
Auto scan
Firmware upgradable

Note: HD audio through DisplayPort cannot be switched independently

Technical Specification

Computer Connections	2
Port Selection	Hotkeys, Pushbutton, Mouse, RS232 commands, Remote Port Selector
Connectors

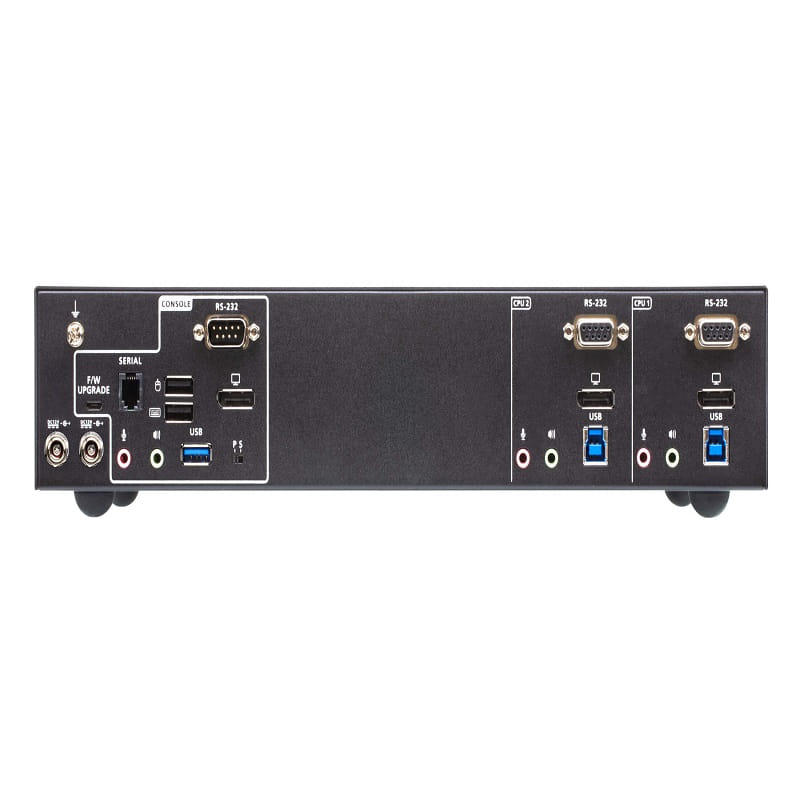

Console Ports	2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Stereo Jack Female (Pink; 1 x front, 1 x rear) 1 x DB-9 Male
KVM (Computer) Ports	2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) 2 x DB-9 Female
Power	2 x DC Jack
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Remote Port Selector	1 x RJ-11 Female
Firmware Upgrade	1 x micro USB Female
Switches
Selected	3 x Pushbutton
LEDs
USB Link	2 (Green)
Audio	2 (Green)
KVM	2 (Orange)
Emulation
Keyboard / Mouse	USB
Video	Up to 4096 x 2160 @ 60Hz
Power Consumption	DC12V:16.09W:134BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.86 kg ( 4.1 lb )
Dimensions (L x W x H)	33.50 x 16.10 x 6.55 cm (13.19 x 6.34 x 2.58 in.)
