2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

Product Code : CS1842

Brand Category : Desktop KVM Switches

Description

One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via pushbuttons, hotkeys, mouse¹, remote port selector, and RS-232 commands²
Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports console keyboard emulation / bypass feature
Supports console mouse emulation / bypass feature
Independent switching of KVM, USB peripheral, and stereo audio focus³
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
HDMI 2.0 compliant; HDCP 2.2 compliant
Supports HD audio³
Power on detection
Auto Scan Mode for monitoring all computers
Firmware upgradable

Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844 user manual.
3. HD audio through HDMI channel cannot be switched independently.

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector
Connectors

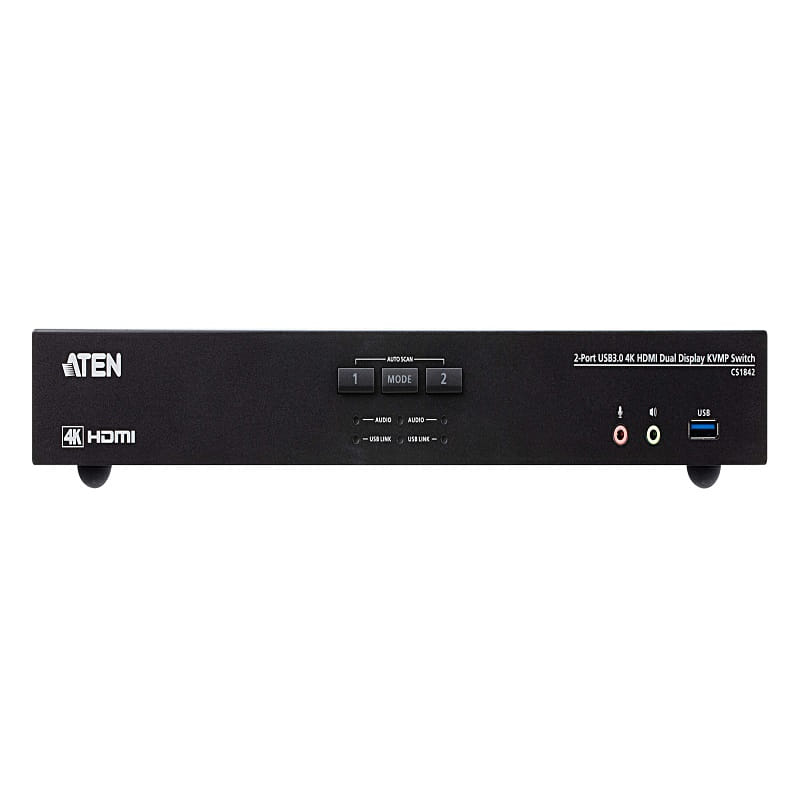

Console Ports	2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

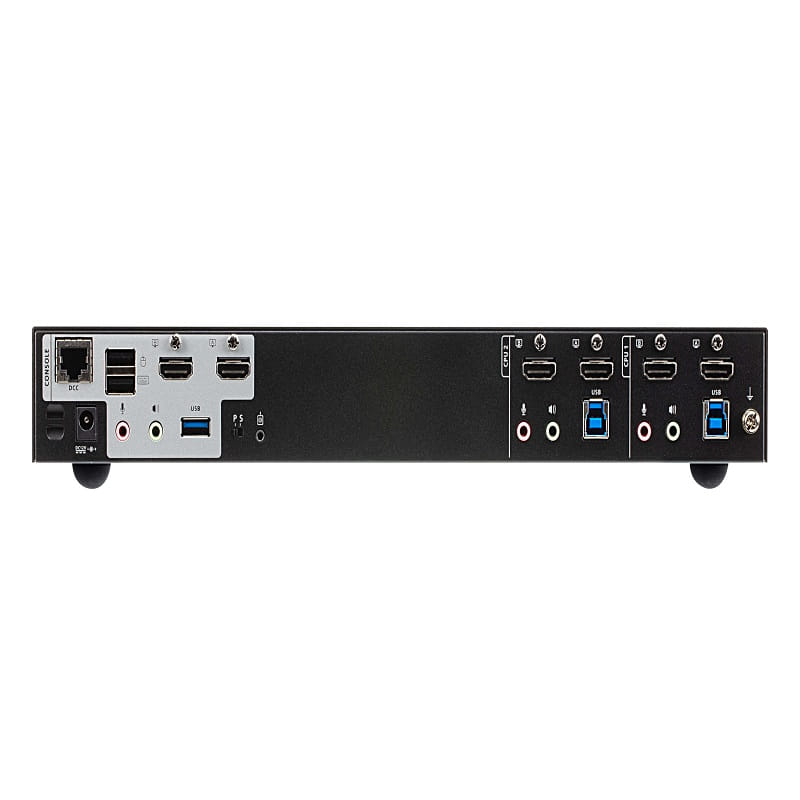

KVM (Computer) Ports	2 x USB3.1 Gen1 Type B Female (Blue) 4 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports	1 x RJ-45 Female
Remote Port Selector	1 x 2.5mm Audio Jack Female
Power	1 x DC Jack
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected	3 x Pushbutton
Station Selection	1 x Slide Switch
LEDs
On Line /Selected	3 (Orange)
USB Link	3 (Green)
Audio	3 (Green)
Emulation
Keyboard / Mouse	USB
Video	Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval	1-99 Seconds (Default: 5 sec.)
Power Consumption	DC12V:3.17W:57BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.60 kg ( 3.52 lb )
Dimensions (L x W x H)	33.50 x 16.05 x 4.40 cm (13.19 x 6.32 x 1.73 in.)
