2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

Product Code : CS22H

Brand Category : Cable KVM Switches

Description

One USB keyboard, mouse and one HDMI monitor control two HDMI computers
Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via remote port selector
HDMI compliant; HDCP 2.2 compliant
Supports USB hot-plugging
The console USB ports can be used for USB peripheral sharing1
Multiplatform support – Windows, Mac and Linux
Hook design for space-saving and organized workstation
Plug and play
Bus-powered – no external power adapter required

Note: 1. The CS22H may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use.

Technical Specification

Computer Connections	2
Port Selection	Remote Port Selector
Connectors

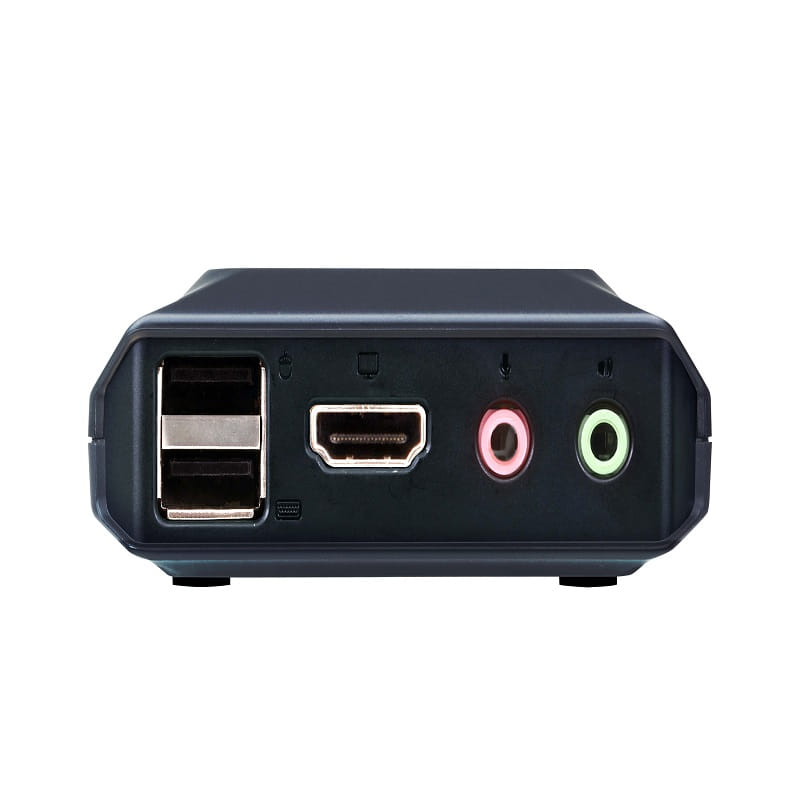

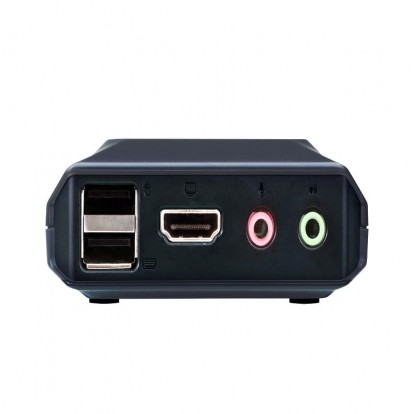

Console Ports	1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)

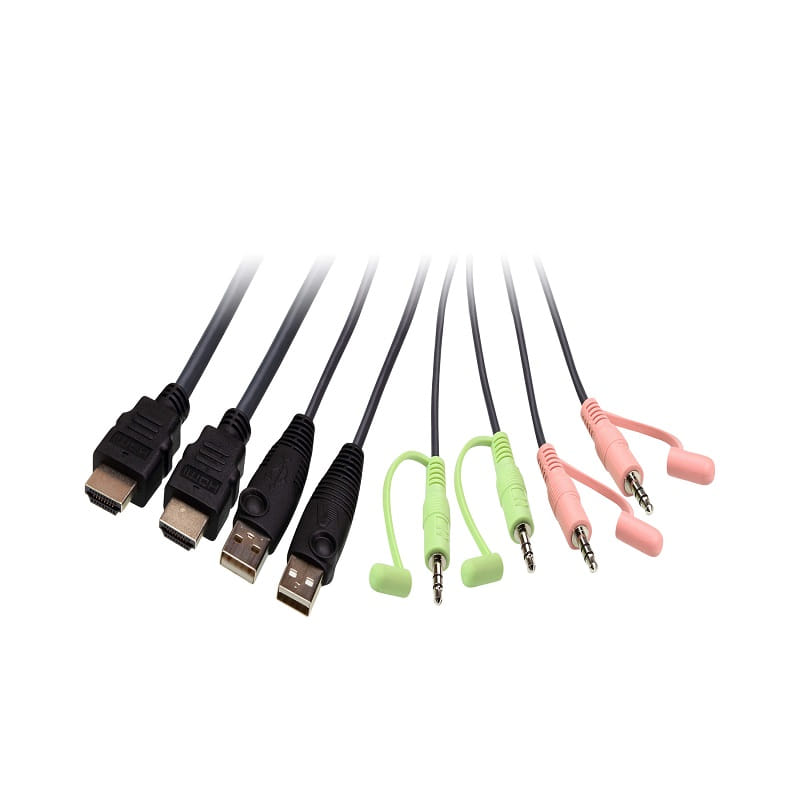

KVM (Computer) Ports	2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Power (Optional)	1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected)	2 (White)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	N/A
Video	Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption	DC5V:3.47W:29BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.34 kg ( 0.75 lb )
Dimensions (L x W x H)	8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.)
